Model SH-110 Dry Scroll Single Hermetic Vacuum Pump Interface dimensions

Peak pumping speed 60 Hz: 110 L/m, 6.6 m3/hr (4.0 cfm)

Ultimate pressure 5.0 x 10’2 Torr (6.6 x 10ˆ2 mbar)

Maximum inlet pressure 1.0 atmosphere (0 psig)

Maximum outlet pressure 1.5 atmosphere (7.5 psig)

Inlet connection NW25

Exhaust connection Female 1/4" National Pipe Thread (NW16 adapter provided)

Gas ballast Female 1/8" National Pipe Thread, (20 micron sintered plug provided)

Ambient operating temperature 5 °C to 40 °C (41 °F to 104 °F)

Storage temperature 20°C to 60°C (4°F to 140°F)

Motor rating 0.25 HP (0.19 kW)

Operating voltages 60 Hz/100-115v :200-230 VAC

Motor thermal protection Automatic thermal protection

Operating speed 60 Hz: 1725 RPM

Cooling system Air-cooled

Weight Pump only: 19.5 kg (43 lbs)

Shipping weight: 20 kg (44 lbs)

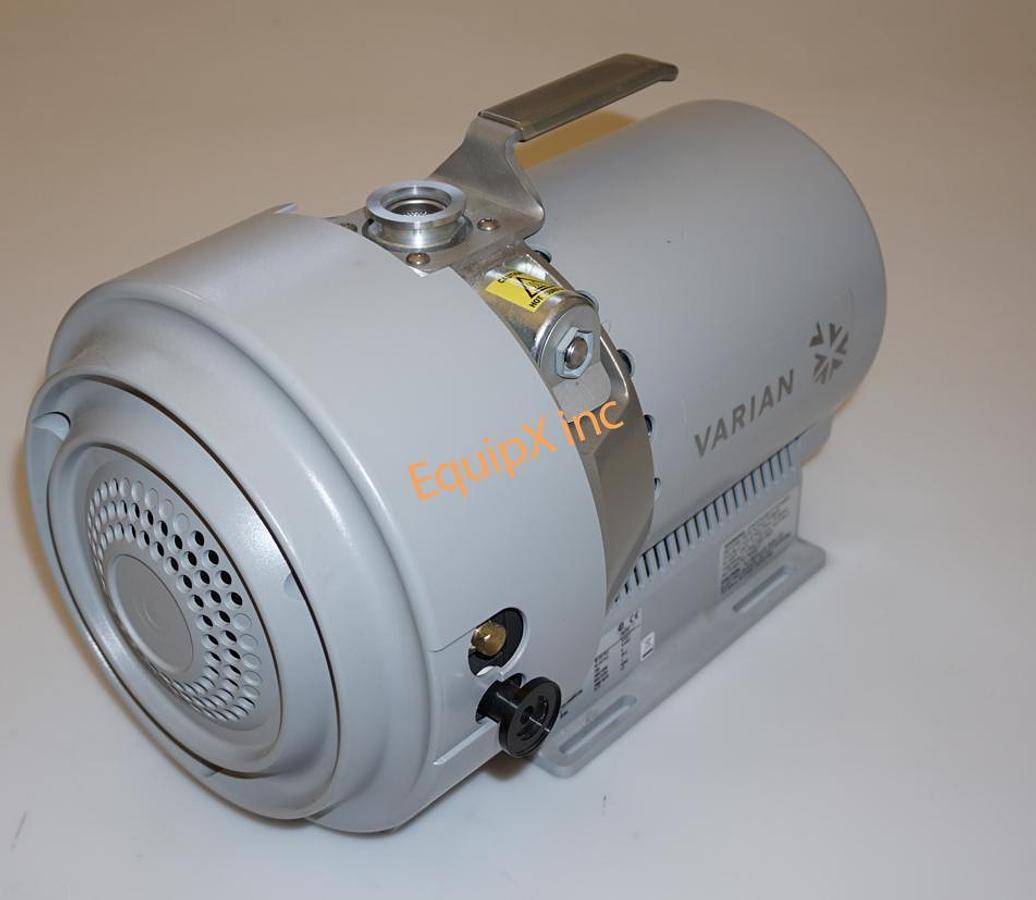

Varian SH110 oil free dry scroll pump- 4CFM 110v Refurbished with new tip seals
