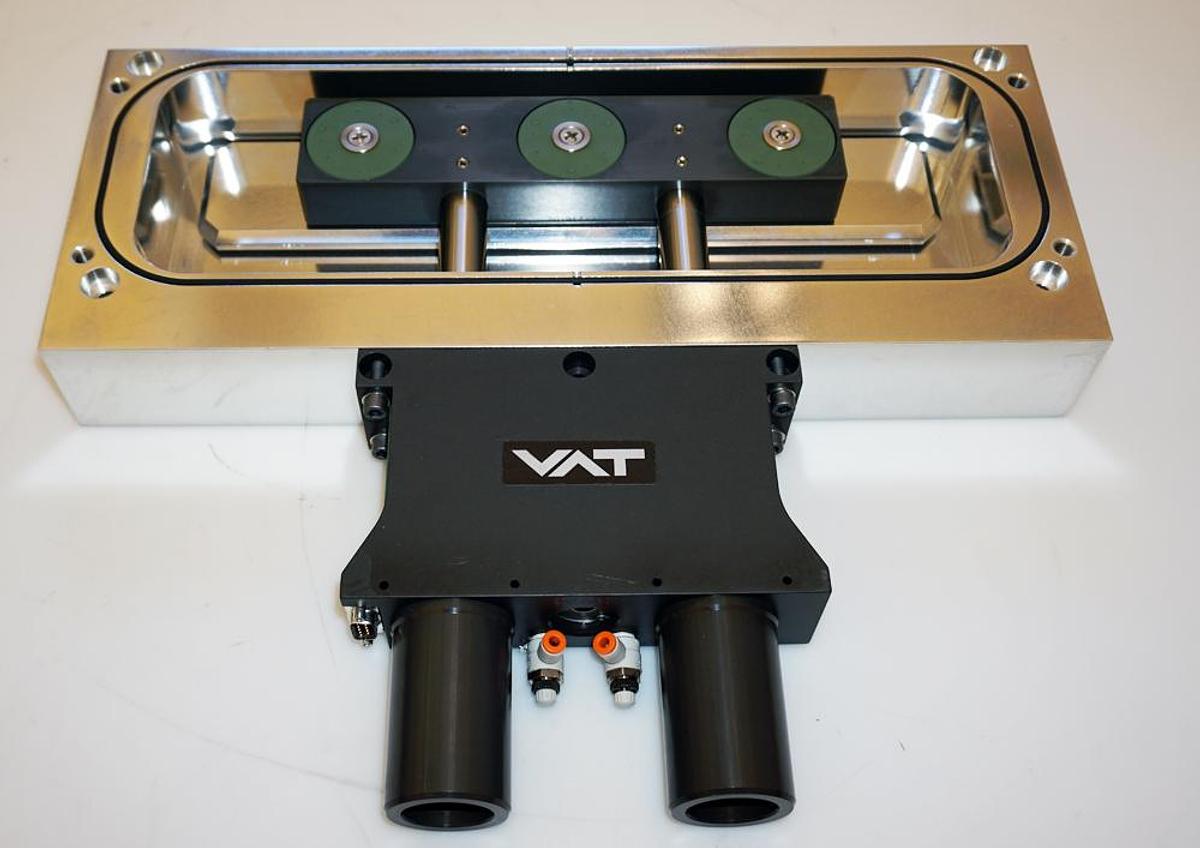

VAT Transfer valve for loadlock chambers series -075
VAT Transfer valve for loadlock chambers series -075
or
Call (408) 209-9278
Description
Product no 07512-CA24-AAF1/0001
Factsheet
| Inside diameter (ID) in mm (inch) | 50x336 (1.97"x13.2") |
| Flange | door; perpendicular mounting surfaces |
| Body material | Aluminum |
| Actuator | Pneumatic actuator with position indicator without solenoid valve double acting |
| Solenoid | No |
| Position indicator | Yes |
| Pressure min. | 1•10-9 mbar |
| Pressure max. | 1.0 bar (abs) |
| Feedthrough | Shaft feedthrough |
| Sealing technology | L-VAT |
| Sealhead Description | none |
| Sealing materials | FKM (VITON®) |
| Max. differential pressure closed position in bar | 1.0 / 0.1 |
| Max. pressure on seat side during opening in bar | 0.1 |
| Compressed air pressure max. in bar | 7 |
| Compressed air pressure min. in bar | 4 |
| Volume of air cylinder in l | 0.25 |
| Closing or opening time in sec. | 1 |
| Valve body temperature max. in °C | 150 |
| Actuator temperature max. in °C | 80 |
| Position Indicator temp. max. in °C | 80 |
| Weight in kg / lbs | 5.2 / 11.46 |
