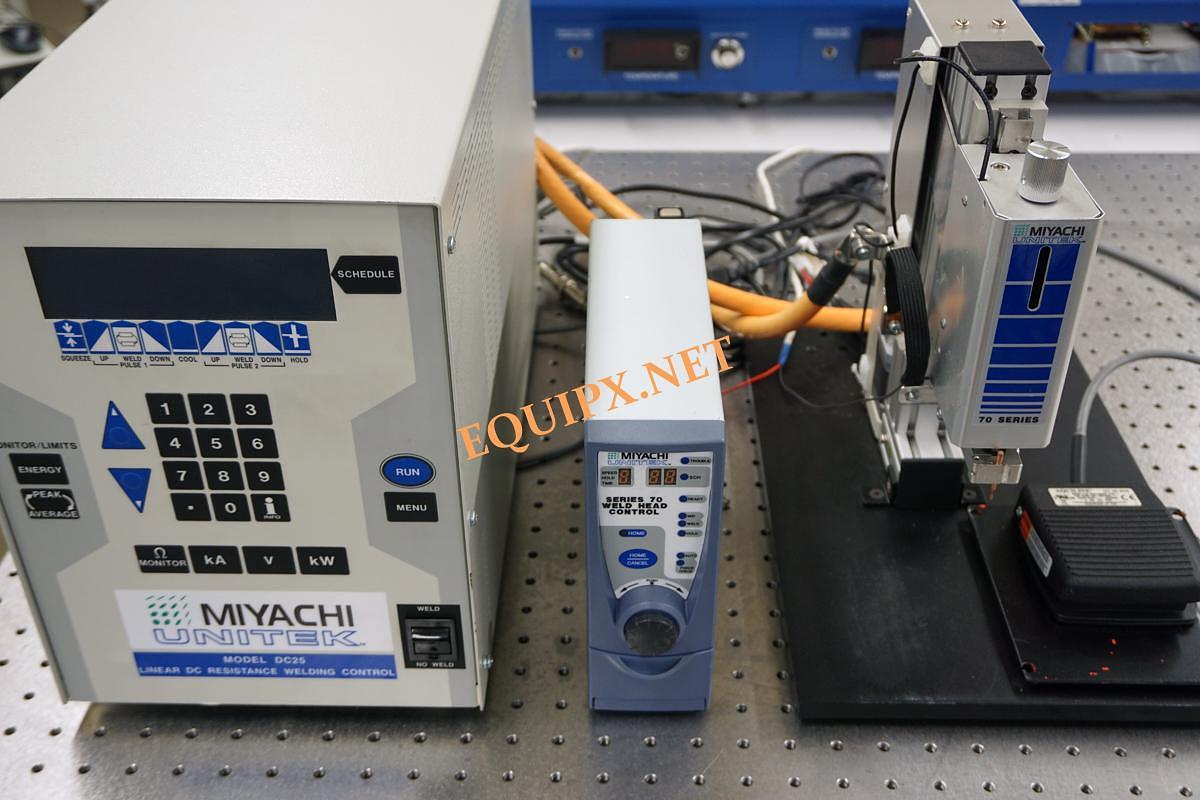

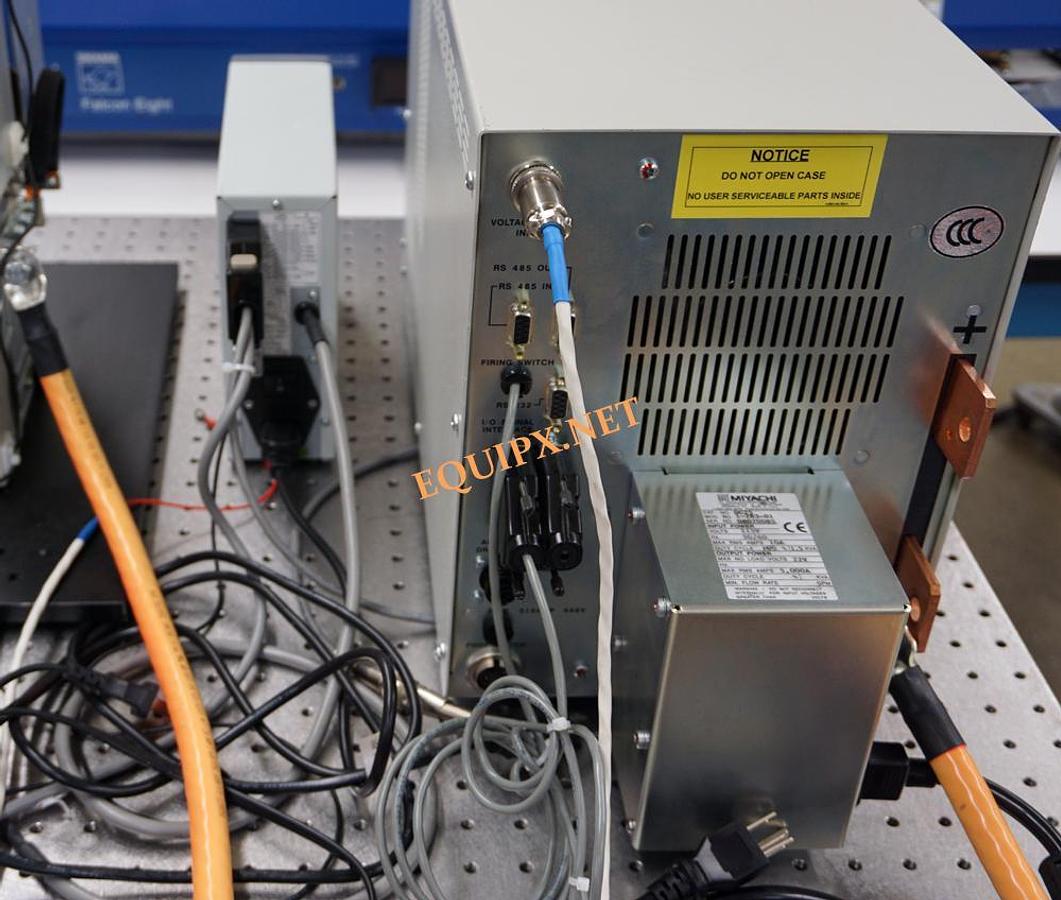

Miyachi micro welding system with DC25 power supply, Series 71 weld head with controller

Model 71 servo motor driven weld head with controller

Opposed gap

0.25-16 lbs force range

Designed for use in either automation or benchtop welding, the 71 weld head offers stable, repeatable electrode force for a wide range of resistance welding applications. The 71 weld head is equipped with an easy-to-program, state-of-the-art servo motor controller for precise programming of electrode position and speed for up to 32 different weld schedules. Opposed, inline electrode configuration.

• Controlled, fast, repeatable servo motor actuation
• Extremely low-end force control (0.25 lb)
• Remote control I/O and PC communication
• Displacement and force options
• “Soft Touch” part clamping
• Unitip and blade thermode option

HF25 precision linear DC welding controller

output up to 4000 amps
