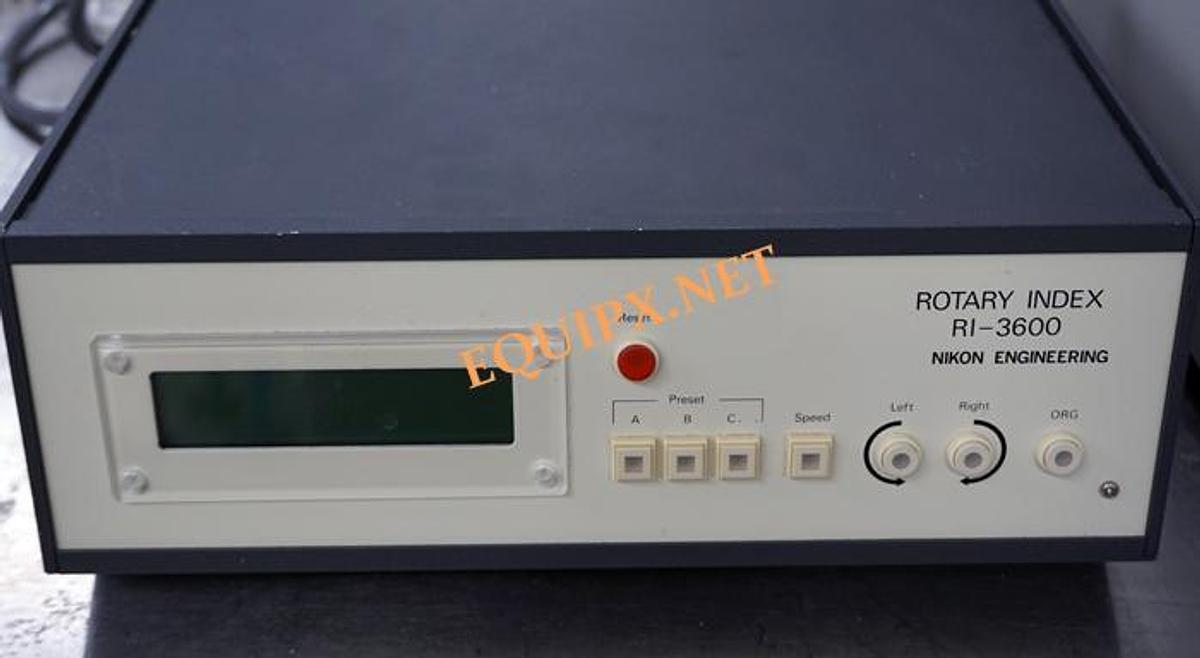

Nikon NEXIV RI-3600L rotary indexer - Accessory to VMR NEXIV series optical profilers

image rotation with display of .01 degree resolution

4 preset positions- origin plus 3

maximum workpiece diameter 75mm

Accessory fits all VMR-XXXX optical profilers

The RI-3600L can rotate the image of a workpiece and display it with a 0.01º resolution.
Because it can be controlled externally, it enables automatic measurements while controlling the posture of the workpiece.
Minimum readout: 1”
Control resolution: 0.01º
Max. workpiece diameter: 75mm
Operation mode: Auto or Manual
Pre-set points: Point of origin and 3 others
