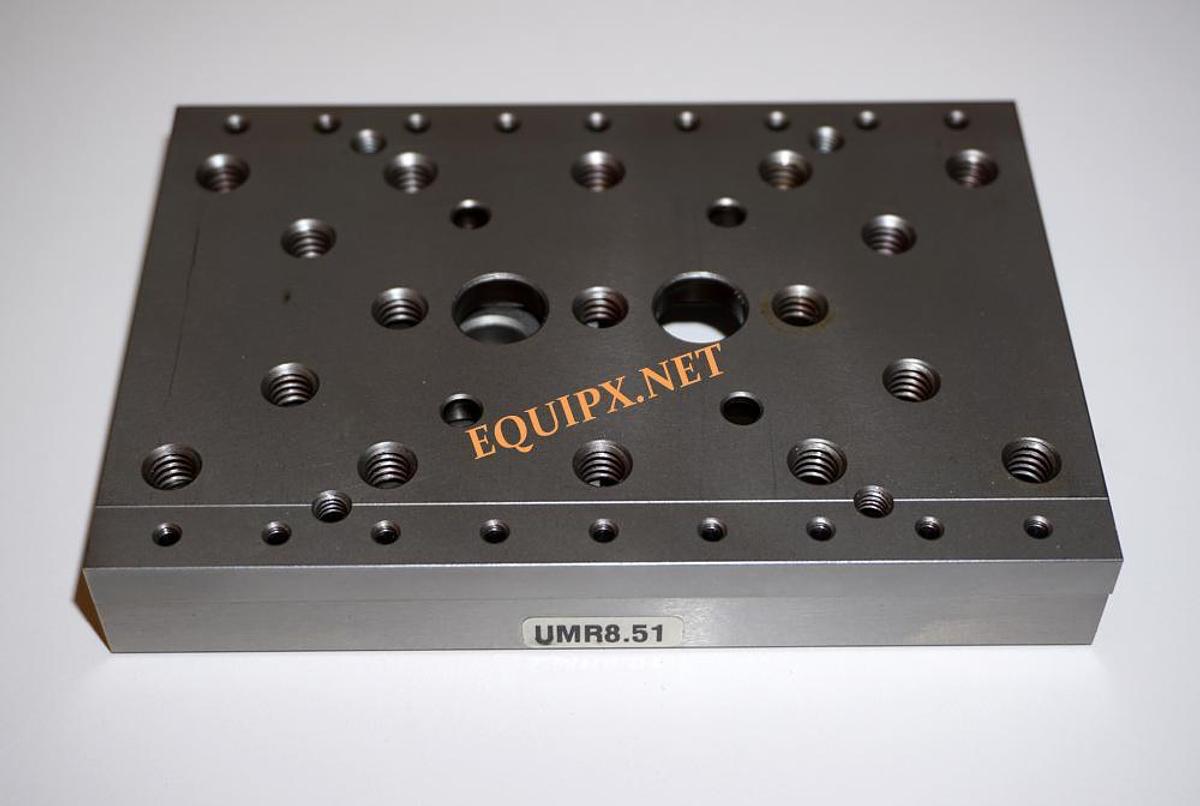

Newport UMR8.51 precision ball bearing linear stage with 50mm travel

Newport UMR8.51 precision ball bearing linear stage with 50mm travel

$420 (USD)

or
Call (408) 209-9278

Description

Technical Specs

  • Axes of Travel
    X
  • Maximum Stage Travel
    50 mm
  • Thread Type
    8-32 and 1/4-20
  • Load Capacity
    900 N
  • Vertical Load Capacity
    100 N
  • Angular Deviation
    150 µrad
  • Material
    Steel
  • Bearings
    Double-Row Ball Bearings
  • Bearing Constant
    40 mm
  • Drive Location
    Center drive
  • Drive Torque
    0.07 Nm
  • Compliance in Roll
    0.05 mrad/Nm
  • Compliance in Pitch
    0.05 mrad/Nm
  • Compliance in Yaw
    0.05 mrad/Nm
  • Platform Size
    80 x 118 mm
  • Height
    18 mm
  • Recommended BM Micrometer
    BM17.51
  • Recommended LTA Motorized Actuator
    LTA-HS
  • Travel Requirement
    More Than 25.4 mm
    • Show All

    Specifications

    Stock Number3815
