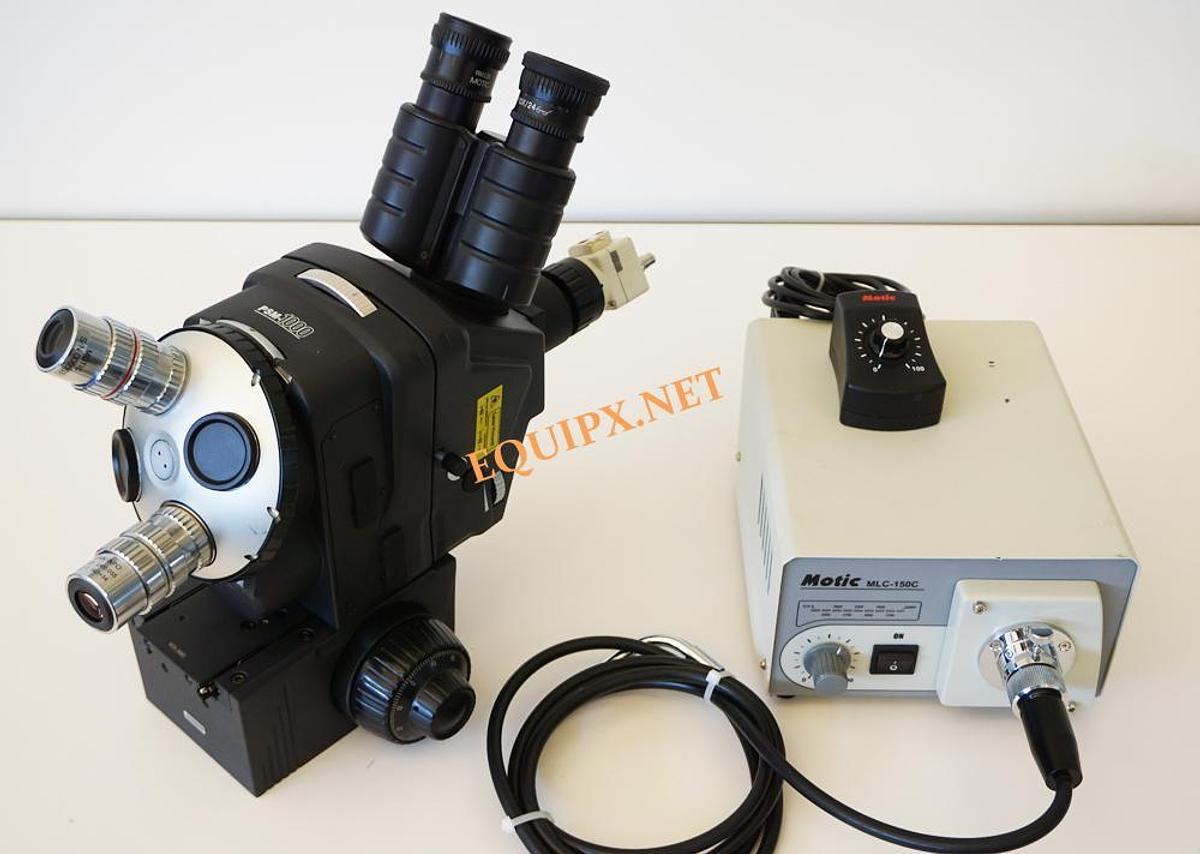

Motic PSM1000 probe station microscope with focus block, fiber optic illuminator, and 2x/5x ELWD objectives
Motic PSM1000 probe station microscope with focus block, fiber optic illuminator, and 2x/5x ELWD objectives
$4,950 (USD)
or
Call (408) 209-9278
Description

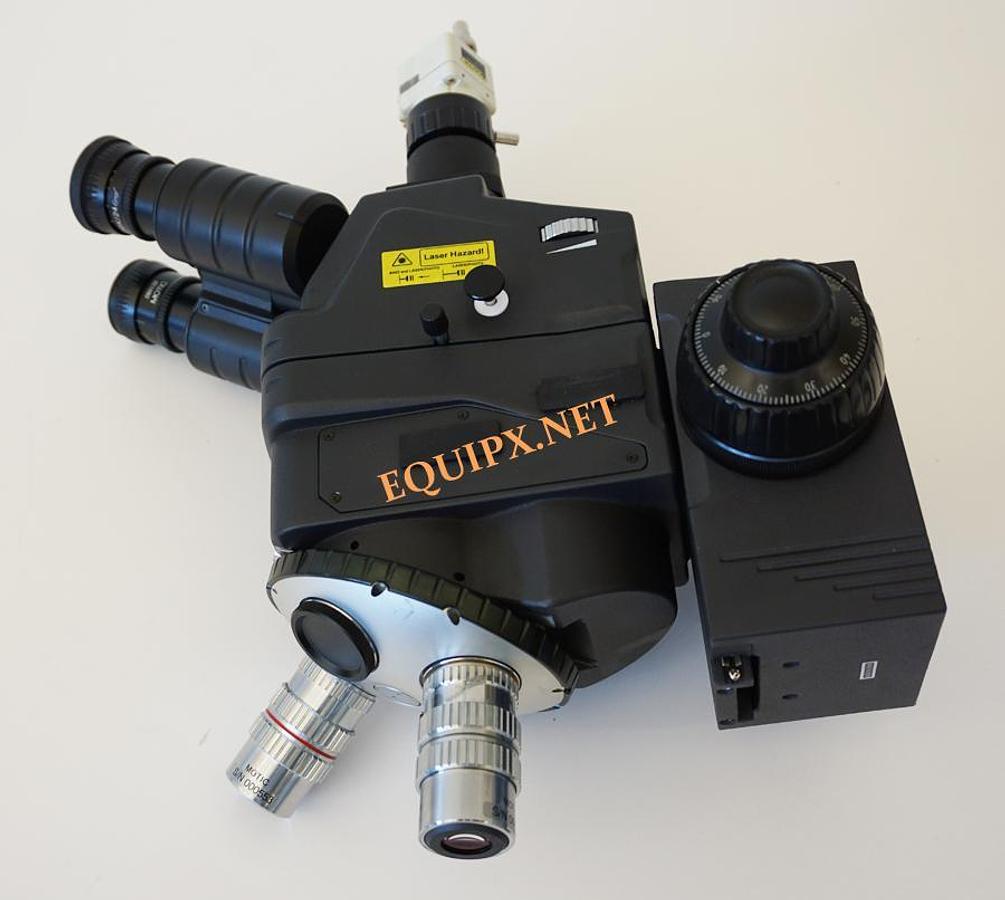

Motic PSM1000 probe station microscope

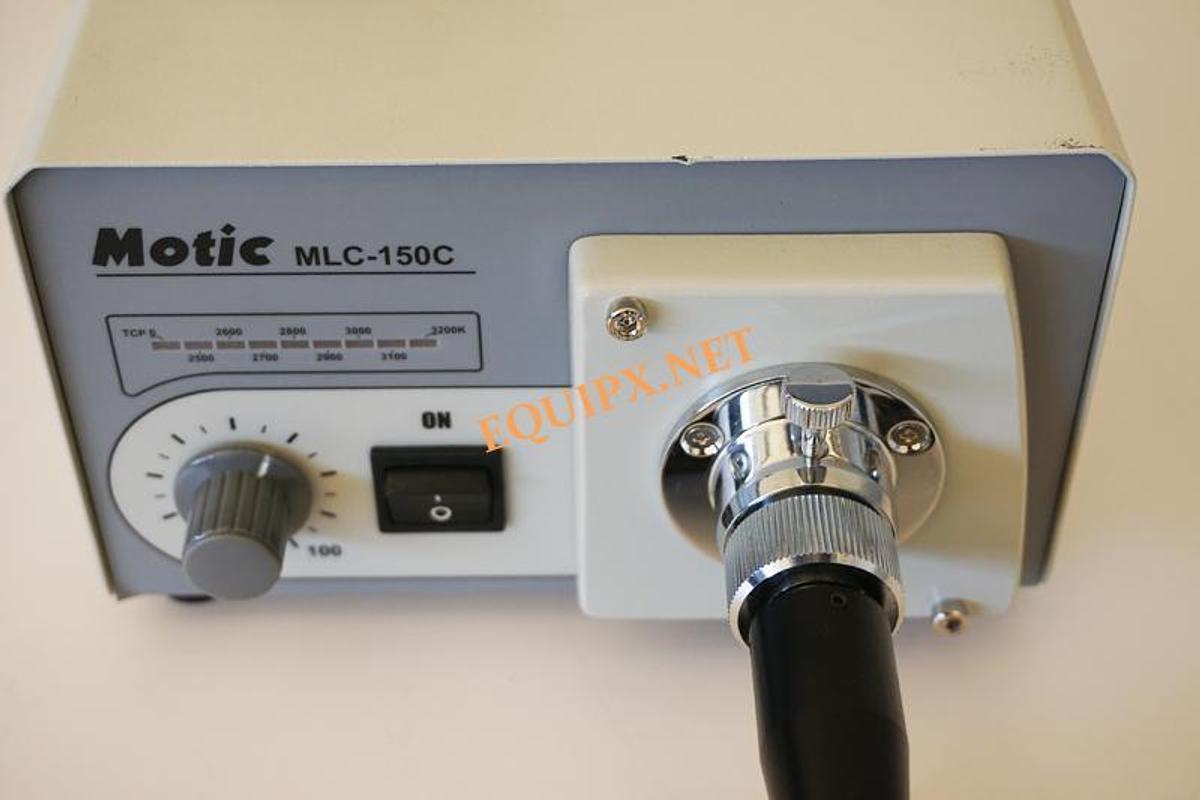

Motic MLC-150C Fiber optic power supply with fiber
Trinocular head [Optical split - 50:50 / 0:100
C-mount camera adaptor with Sentech camera
Adjustable widefield high eyepoint 10X/F.N.24 eyepieces
3-lens changeover turret [1XUV, 1XIR, 2XVIS]
Adjustable / centerable forward facing nosepiece [dovetail mount]
Focus Adjustment With coaxial coarse and fine focusing wheels (right/left) (50mm travel range, 0.1mm/rev. for fine adjustment, 4mm/rev. for coarse adjustment)
Laser capabilities [355nm - 1064nm]
Laser workPull out beam splitter for laser work
1064/532/355nm NWR laser
Pull out beam splitter for laser work
Switchable(eyepiece/laser = 100/0 or 0/100); Simultaneous observation(50:50)
Objective nosepiece Parcenterable, outward, rotary type for bright field lens(with 4 mounts), detachable

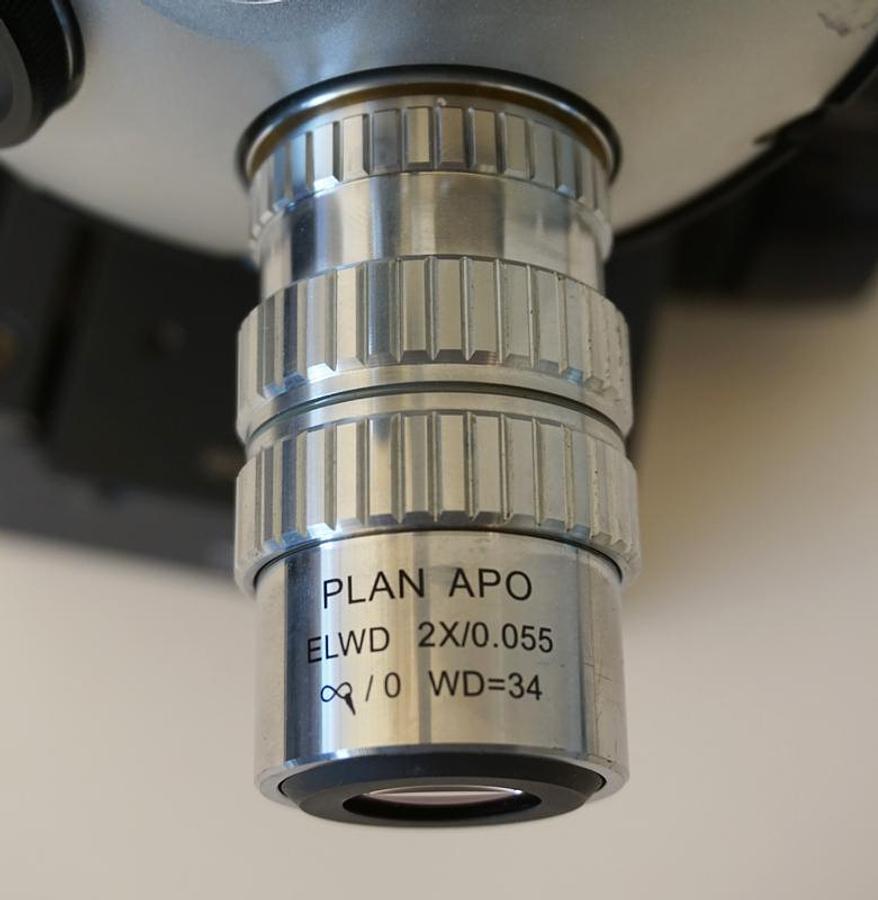

Plan APO 2x ELWD objective 34mm WD

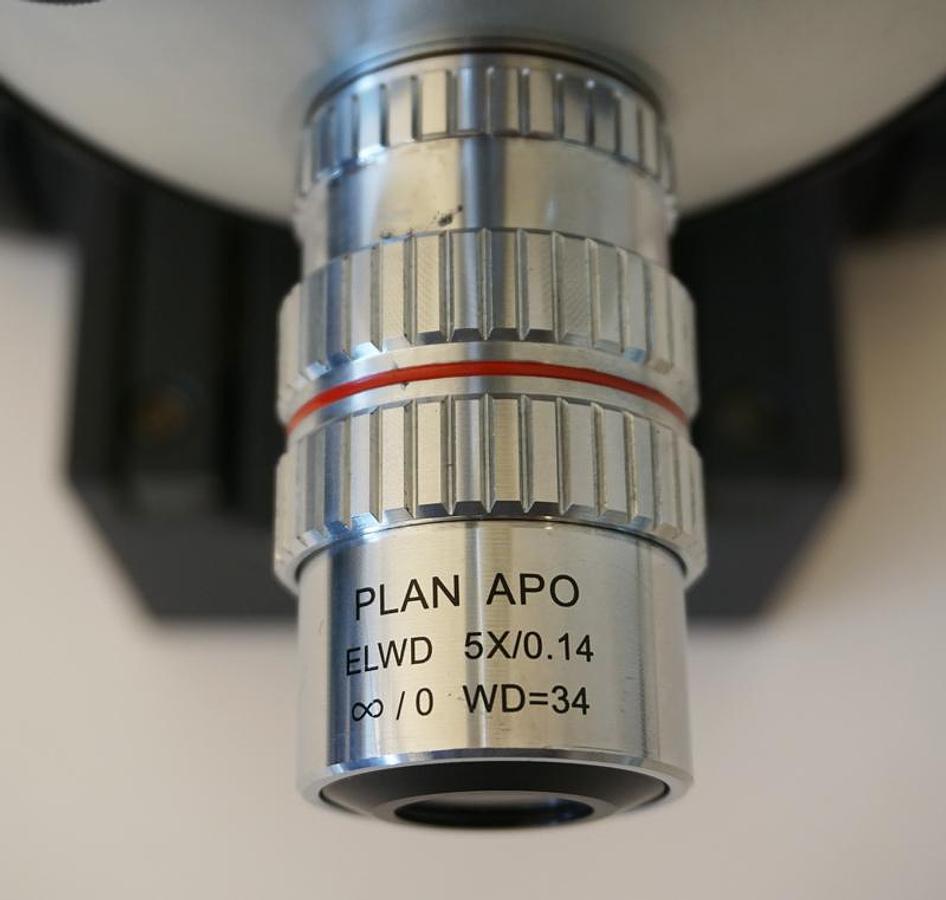

Plan APO 5x ELWD objective 34mm WD
Motic MLC-150C Fiber optic power supply with fiber
Trinocular head [Optical split - 50:50 / 0:100
C-mount camera adaptor with Sentech camera
Adjustable widefield high eyepoint 10X/F.N.24 eyepieces
3-lens changeover turret [1XUV, 1XIR, 2XVIS]
Adjustable / centerable forward facing nosepiece [dovetail mount]
Focus Adjustment With coaxial coarse and fine focusing wheels (right/left) (50mm travel range, 0.1mm/rev. for fine adjustment, 4mm/rev. for coarse adjustment)
Laser capabilities [355nm - 1064nm]
Laser workPull out beam splitter for laser work
1064/532/355nm NWR laser
Pull out beam splitter for laser work
Switchable(eyepiece/laser = 100/0 or 0/100); Simultaneous observation(50:50)
Objective nosepiece Parcenterable, outward, rotary type for bright field lens(with 4 mounts), detachable
Plan APO 2x ELWD objective 34mm WD
Plan APO 5x ELWD objective 34mm WD
Specifications
| Stock Number | 3865 |
| Sort | 0 |
