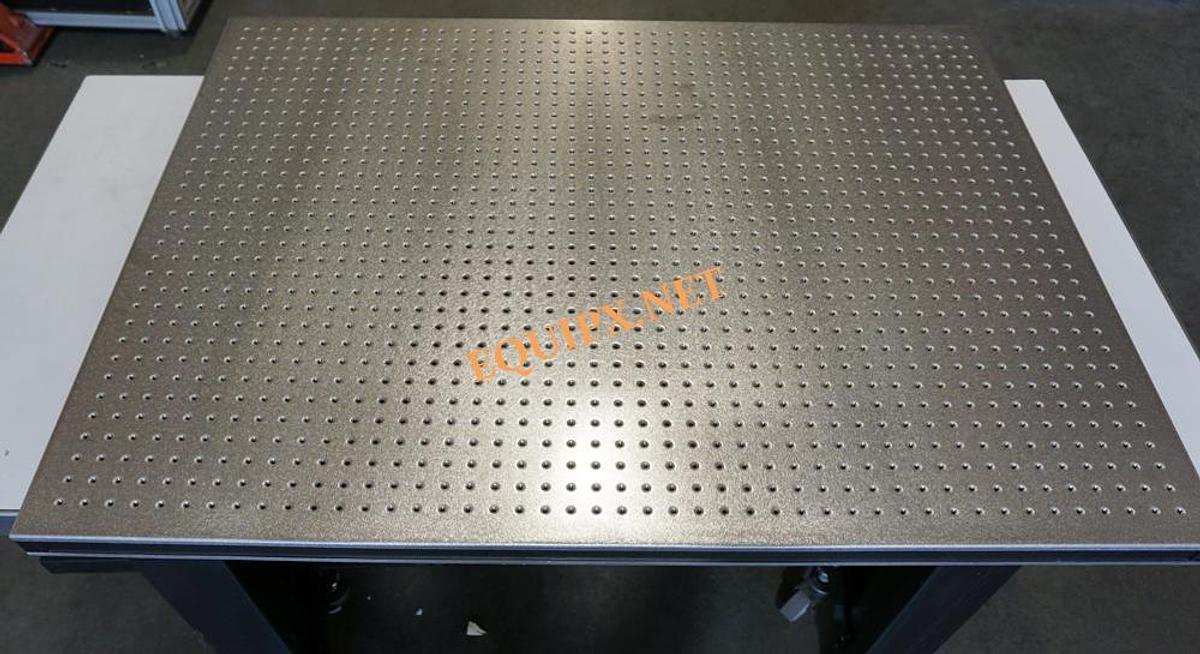

TMC 75SSC-135-02 36x48 breadboard, 1/4-20 holes 1" OC (NEW)

Description

TMC - 75 Series Lightweight Breadboards

TMC's 75 Series Breadboards minimize both weight and cost. A patented manufacturing technique allows TMC to form countersunk, tapped holes in a thin top skin of stainless steel. The holes are not drilled or punched, but fabricated in a way that effectively “thickens” the skin in a small ring around the threads. No inserts are used and the tapped holes are 3 threads deep.

These tops have relatively high levels of rigidity, as they utilize TMC's standard steel core. However, with their thin top and bottom skins, they cannot have the rigidity and damping properties of TMC's 78 and 77 CleanTop� II Breadboards.
They are ideal when light loads are anticipated and low weight and/or cost are the most crucial factors.

The weight savings - 50% less than TMC's 78 Series Breadboard - is derived only from the lighter gauge skins.

This lightweight design is available from stock in the sizes listed below. A full range of sizes and materials is available on a custom basis. Contact Harvard Apparatus Canada for pricing and delivery for custom configurations.

General Specifications

Core:

Steel honeycomb, closed-cell, 0.010 in. (0.2mm) thick foil

Core Shear Modulus:

275,000 psi
(19,300 kg/cm2)

Core Cell Size:

<0.5 in.2 (3cm2)

Core Density:

13.3 lb/ft3 (230 kg/m3)

Flatness:

� 0.005 in. (0.13mm)

Top Skin:

430 series stainless steel, 0.075in (2 mm) thick

Bottom Skin:

400 series stainless steel, 0.075in (2 mm) thick

Sidewalls:

High-pressure laminate

Tapped Holes:

Backed by individual CleanTop II cups;
3 threads

Features

Ultra-lightweight design weighs less than 9 lbs/ft2 (44 kg/m2).

Ferromagnetic Stainless steel top and bottom skins.

Aluminum and carbon steel versions available.

Very low prices, even in low quantity.

Formed holes are countersunk and tapped 3 threads.

Formed holes in top skin add to rigidity.

CleanTop� II individual cups under each hole make the core spillproof.

Ordering Chart
Surface Dimensions	Model No	Weight
inches	mm	1/4-20 holes on 1" centers	M6 holes on 25 mm centers	lbs	kg
19 x 23	450 x 600	75SSC-103-02 $ 975.00 USD	75SSC-103-12 $ 975.00 USD	31	14
19 x 47	450 x 1200	75SSC-104-02 $ 1272.00 USD	75SSC-104-12 $ 1272.00 USD	62	28
23 x 23	600 x 600	75SSC-113-02 $ 1076.00 USD	75SSC-113-12 $ 1076.00 USD	37	17
23 x 35	600 x 900	75SSC-115-02 $ 1260.00 USD	75SSC-115-12 $ 1260.00 USD	56	25
23 x 47	600 x 1200	75SSC-119-02 $ 1456.00 USD	75SSC-119-12 $ 1456.00 USD	74	34
35 x 47	900 x 1200	75SSC-135-02 $ 1893.00 USD	75SSC-135-12 $ 1893.00 USD	111	50
