| Ambient temperature | 12 °C | 53.6 °F | 285 K |
| Cooling method, standard | Air |
| Emission sound pressure level without gas ballast or purge | ≤ 52 dB(A) |
| Exhaust pressure, max. | 1,100 hPa | 825 Torr | 1,100 mbar |
| Flange (in) | G 1/8″ elbow union + enclosed hose DN 6 x 1000 mm with a straight union in G ¼” at the end |
| Flange (out) | G 1/8″ + silencer |
| Intake pressure max. | 1,100 hPa | 825 Torr | 1,100 mbar |
| Leak rate | ≤ 5 · 10-4 Pa m³/s |
| Mains requirement: voltage (range) | ±10 % |
| Mains requirement: voltage 50 Hz | 100 – 115/208 – 236 V |
| Mains requirement: voltage 60 Hz | 100 – 115/208 – 236 V |
| Operating altitude, max. | 2000 m |
| Protection category | IP20 |
| Pumping speed at 50 Hz | 0.5 m³/h |
| Pumping speed at 60 Hz | 0.7 m³/h |
| Rotation speed at 50 Hz | 1,500 rpm | 1,500 min-1 |
| Rotation speed at 60 Hz | 1,800 rpm | 1,800 min-1 |
| Switch New | Yes |
| Temperature: Storage | 5 °C | 41 °F | 278 K |
| Ultimate pressure with gas ballast | 4.5 hPa | 3.38 Torr | 4.5 mbar |
| Ultimate pressure without gas ballast | 3.5 hPa | 2.62 Torr | 3.5 mbar |
| Weight | 6.5 kg | 14.33 lb |

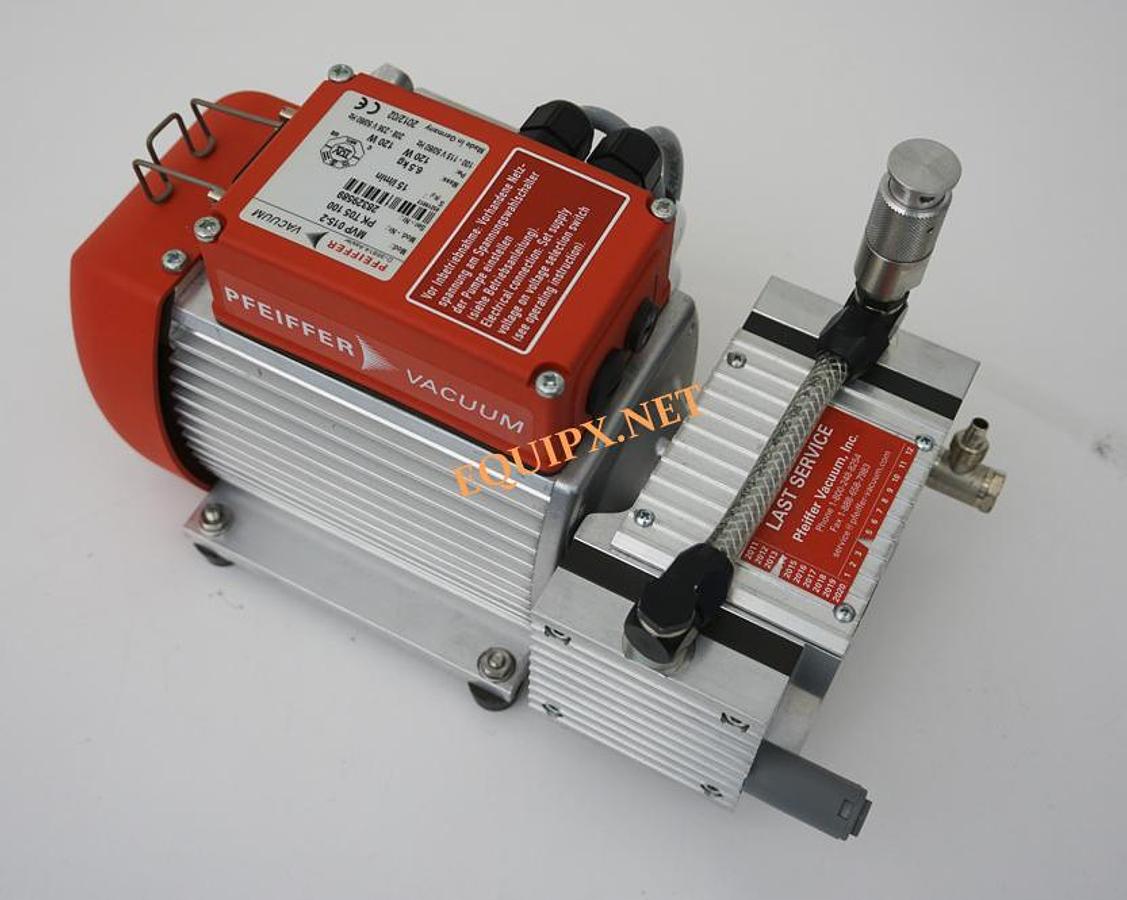

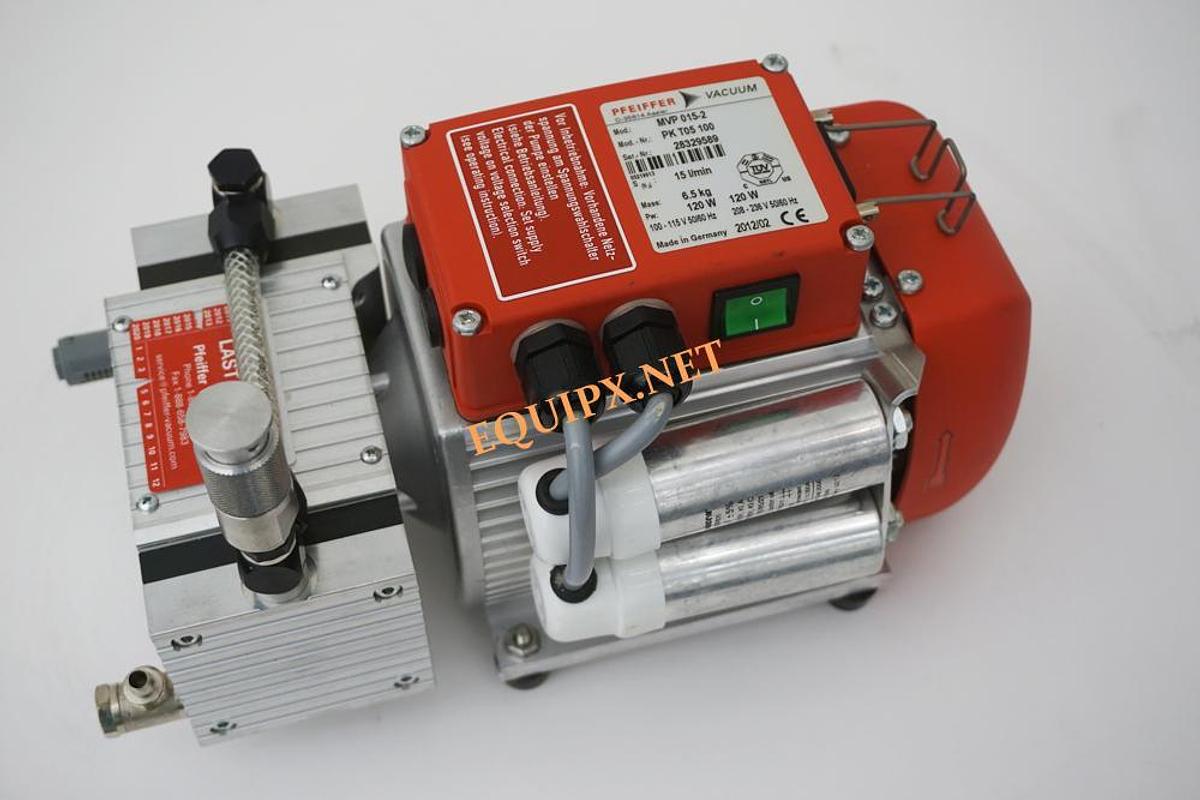

MVP 015-2 Diaphragm Pump Curve Pic
Diaphragm pump with a pumping speed of up to 0.7 m3/hNo hydrocarbons: Completely dry & oil-free diaphragm pumpLow noise level, low vibrations and compact design, also ideal for use in laboratories
