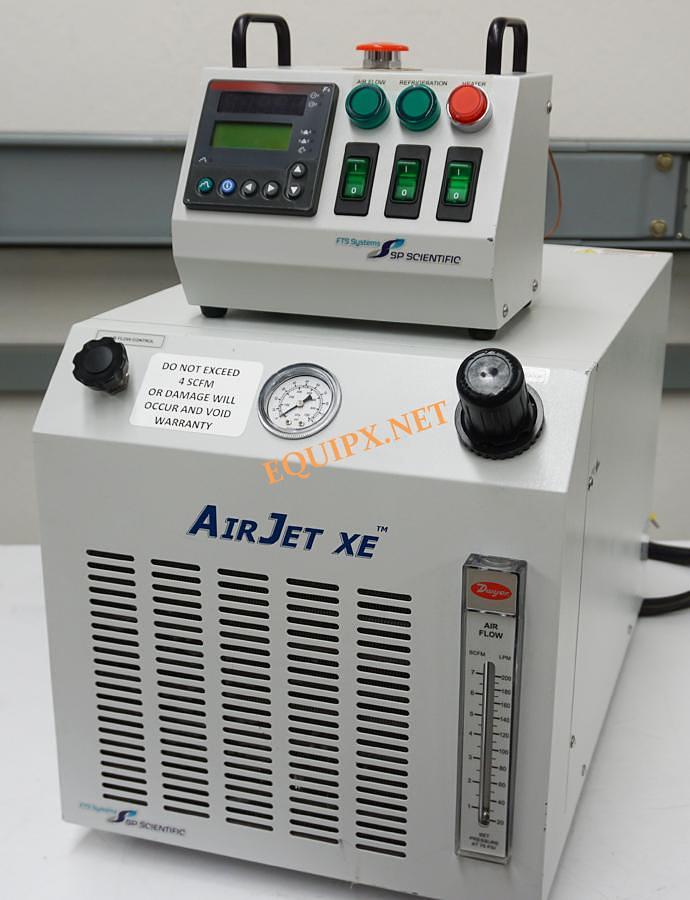

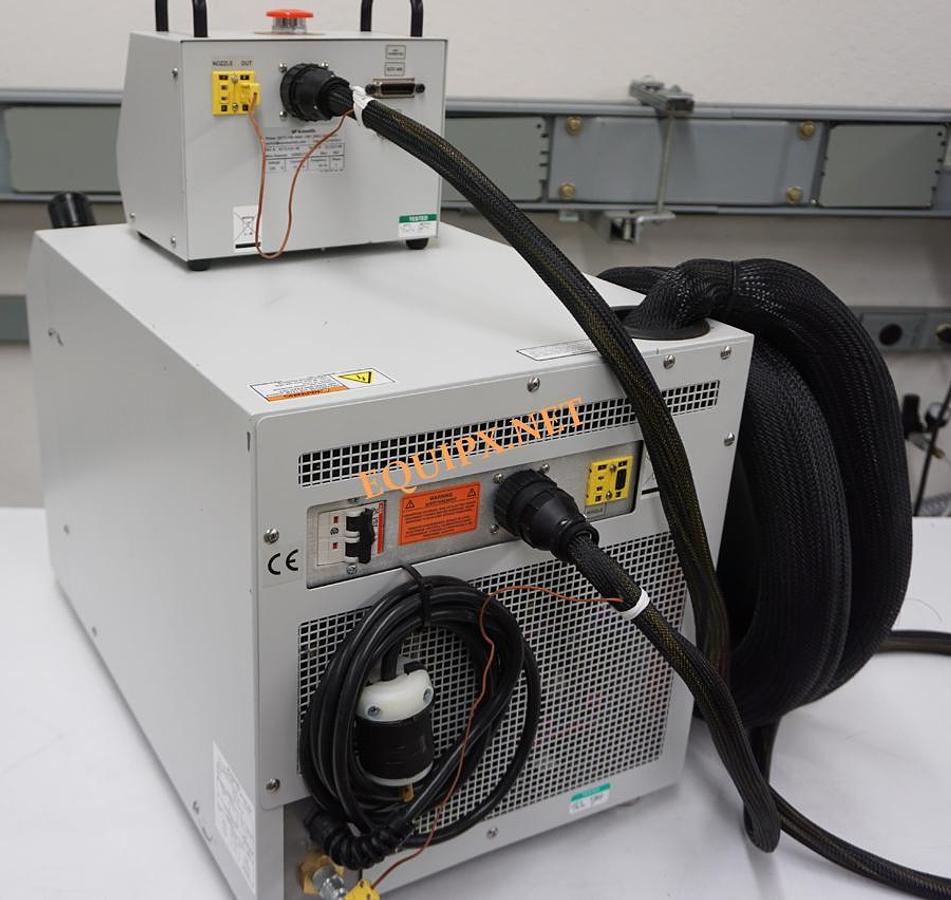

SP FTS Systems Airjet XE75

SP FTS Systems Airjet XE75

$5,950 (USD)

or
Call (408) 209-9278

Description

  • -75C to +225C temperature range
  • Small footprint – can be rack mounted if required
  • Does not require any expendable refrigerants
  • Can be controlled by internal or external thermocouple
  • Flow rates of 1 to 6 scfm
  • Effective and robust Dual Cool refrigeration system
  • Quiet operation for use in labs

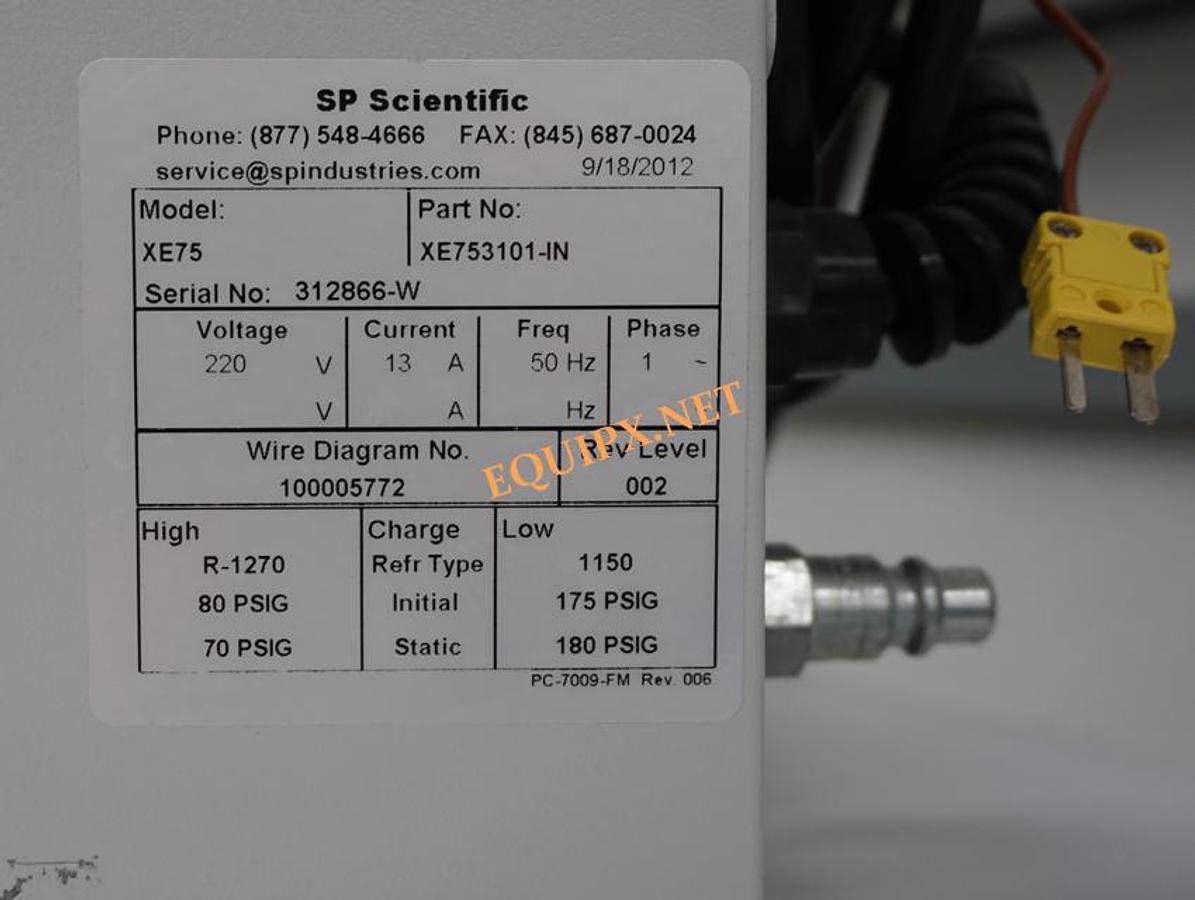

  • 220v 50hz

    • Key Benefits

  • Save lab space with small footprint
  • Economical approach for less rigorous applications
  • Accommodates a variety of devices under test with 1 to 6 scfm flow rate
  • Meets mil spec requirements with -75C to +225C temperature range

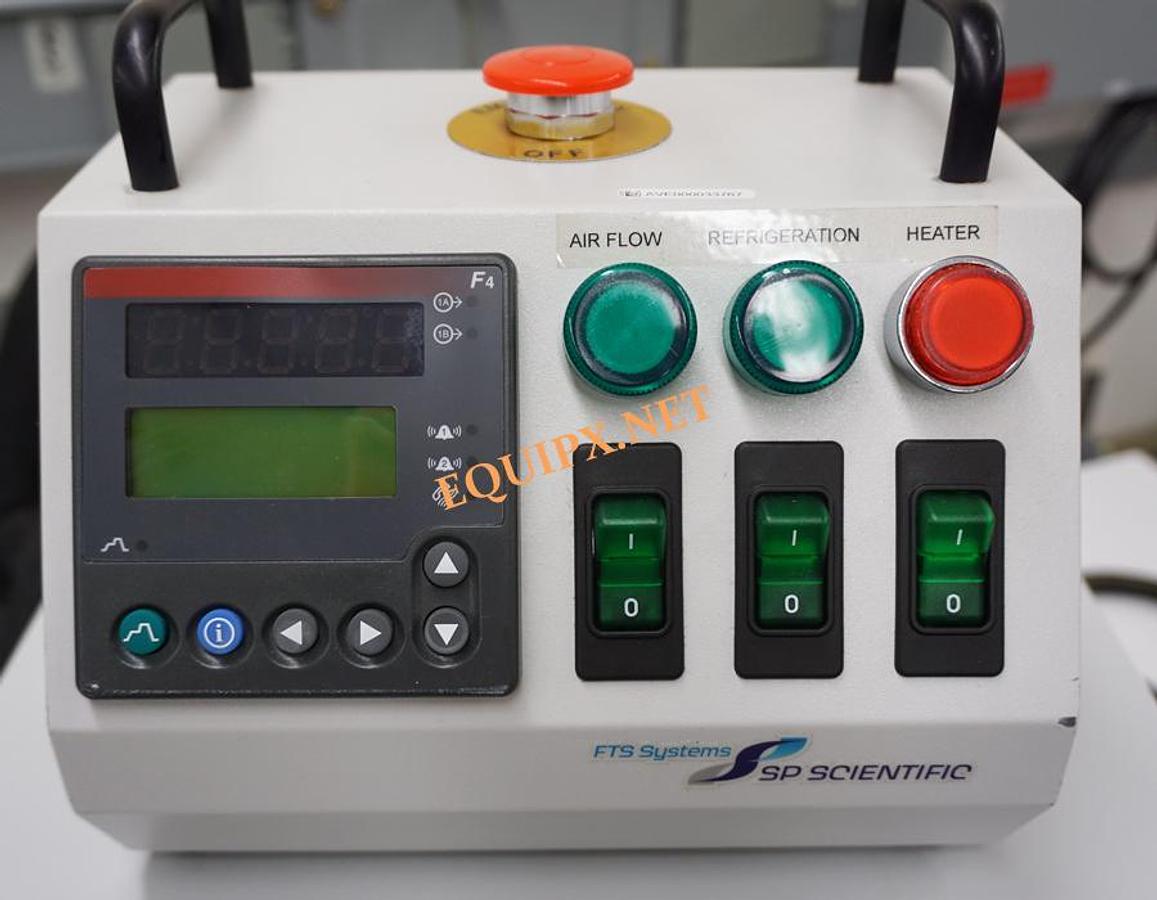

  • Control process internally or from the device under test

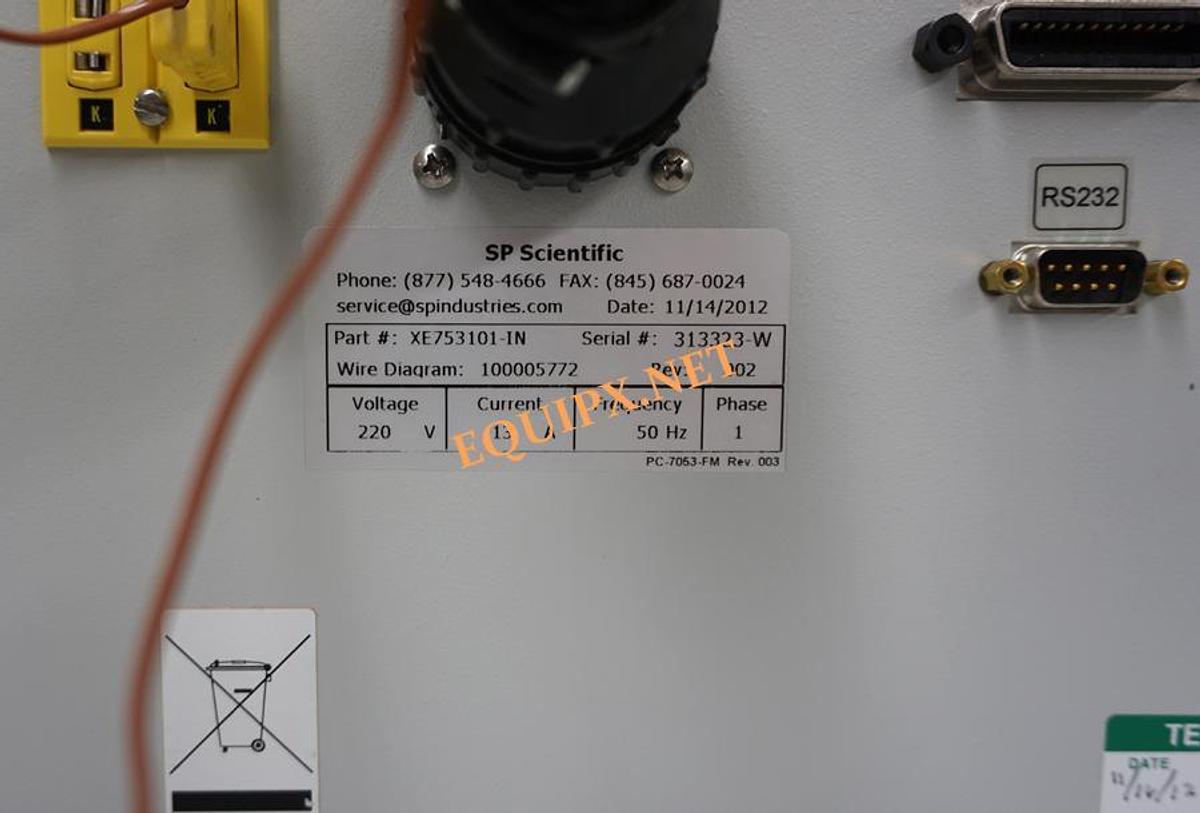

  • RS-232 and GPIB allow use with automatic test equipment
  • Excellent stability, accuracy and repeatability
  • Optional test boxes expand performance capabilities
  • Accurate temperature control with the internal or external sensor selection

    • Specifications
    Temperature Range
    -75C to +225C (model and scfm dependent)
    Stability
    +/-0.5C at discharge nozzle
    Sensors
    type K thermocouples
    Ramp Rate
    See data sheet below
    Max Ramp RateSee data sheet below


    Control
    PID
    Stability
    +/- 0.5C
    Repeatability
    +/- 0.5C
    Resolution
    0.1C
    Arm Reach
    96" (243.84 cm)
    Dimensions: (W x D x H)

         Controller
    9.3 x 7 x 8.2 “ (23.6 x 17.8 x 20.8 cm)
         Refrigeration System
    14.9 x 23.7 x 16.12” (37.9 x 60.19 x 40.9 cm)
    Weight:

         Controller
    9.0 lbs (4.08 kg)
         Refrigeration System
    120.0 lbs (54.4 kg)
    Show All

    Specifications

    Stock Number4004
