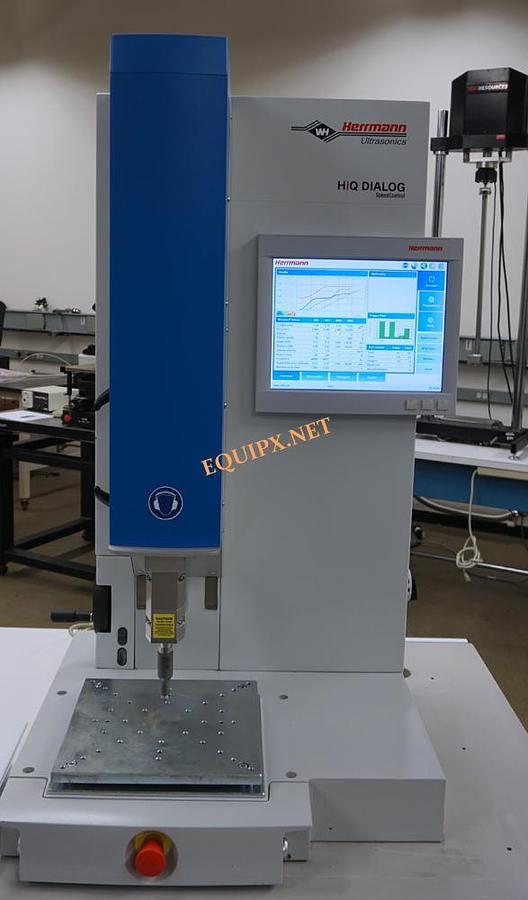

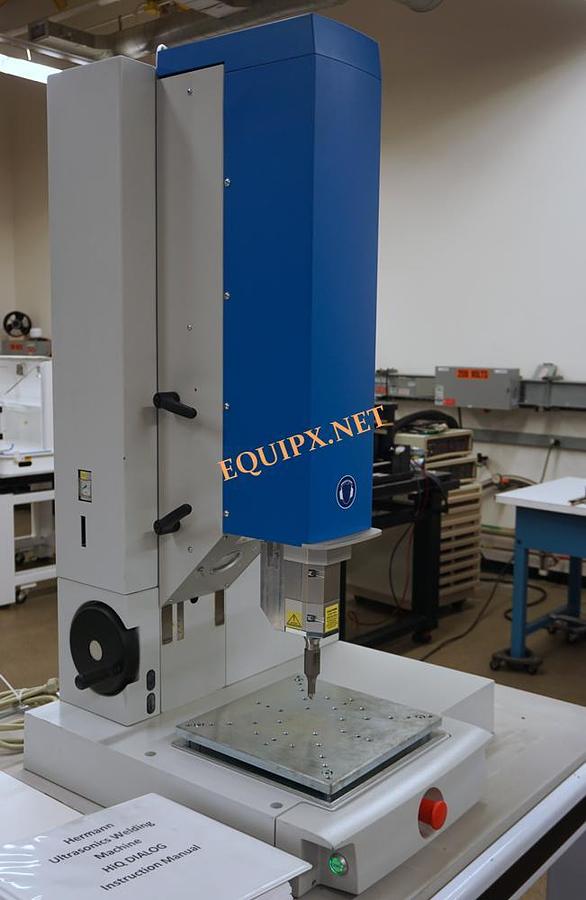

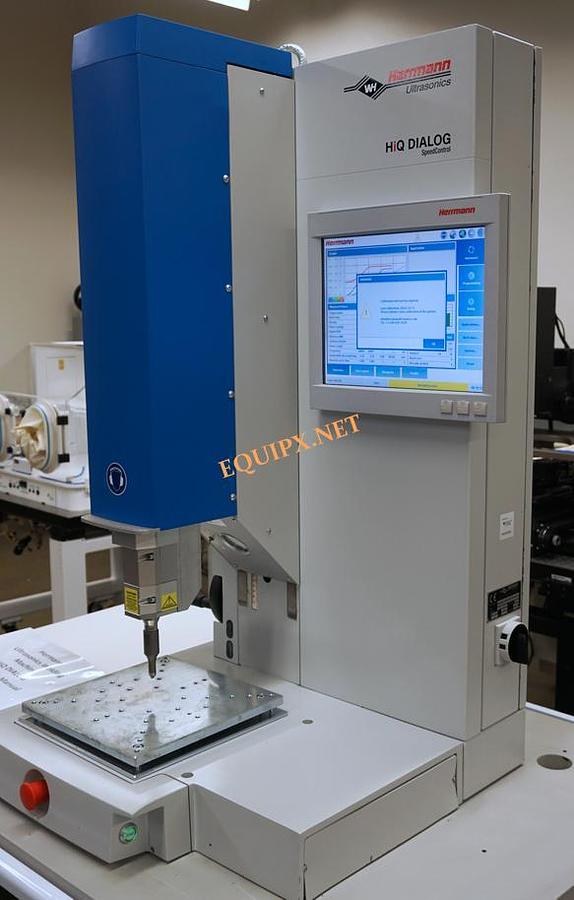

Hermann Ultrasonics HiQ dialog 1200 speed control ultrasonic welder 1200Watts @ 35Khz (2014)
Hermann Ultrasonics HiQ dialog 1200 speed control ultrasonic welder 1200Watts @ 35Khz (2014)
$19,500 (USD)
Description
HiQ DIALOG SpeedControl

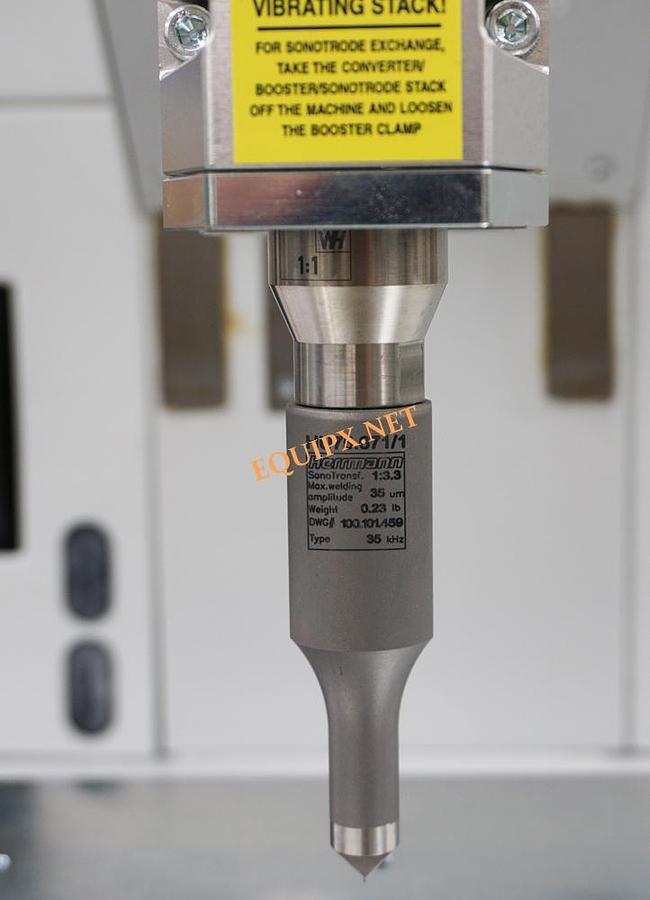

The HiQ DIALOG ultrasonic welders feature the HMC pneumatic drive system. The servo-pneumatic drive patented by Herrmann Ultrasonics combines the benefits of pneumatics with the dynamics of an electric drive and allows the choice of any desired start points for the weld process.The SoftTouch mode helps spare sensitive weld joints of the plastic parts to be joined during the attaching of the sonotrode. The process-oriented operator guidance ensures high usability. Ethernet, USB high-speed, and printer port come as standard.
The latest generation of weld process software proves the innovative energy of Herrmann Ultrasonics.The name DIALOG G4 is a byword for superlative software for control and operation of the weld process, the machine equipment, and up to six customized auxiliary functions.The intelligent process control reduces the reject rate and thus increases efficiency.
| HiQ DIALOG | 20 kHz | 35 kHz |
|---|---|---|
| Generator power [W] | 2400 / 4800 / 6200 | 1200 |
| Weld force min./max.* [N] *at 8 bar | 30 / 2490 | 10 / 650 |
| Stroke [mm] | 150 | 100 |
| Outside dimensions [W x H* x D] [mm] *at max. height adjustment | 723 / 1533 / 707 | 723 / 1533 / 707 |
| Throat depth to center of sonotrode [mm] | 260 | 260 |
| Height adjustment [mm] | 430 | 430 |
| Operating device | 15" touch screen color | 15" touch screen color |
| Operating modes | 7 | 7 |
| Application memories | 1000 | 1000 |
| Number of saved welds (weld data) | 300 per memory | 300 per memory |
| Control of auxiliary functions (optional) | max. 6 | max. 6 |
Specifications
| Stock Number | 4011 |
| Sort | 0 |
