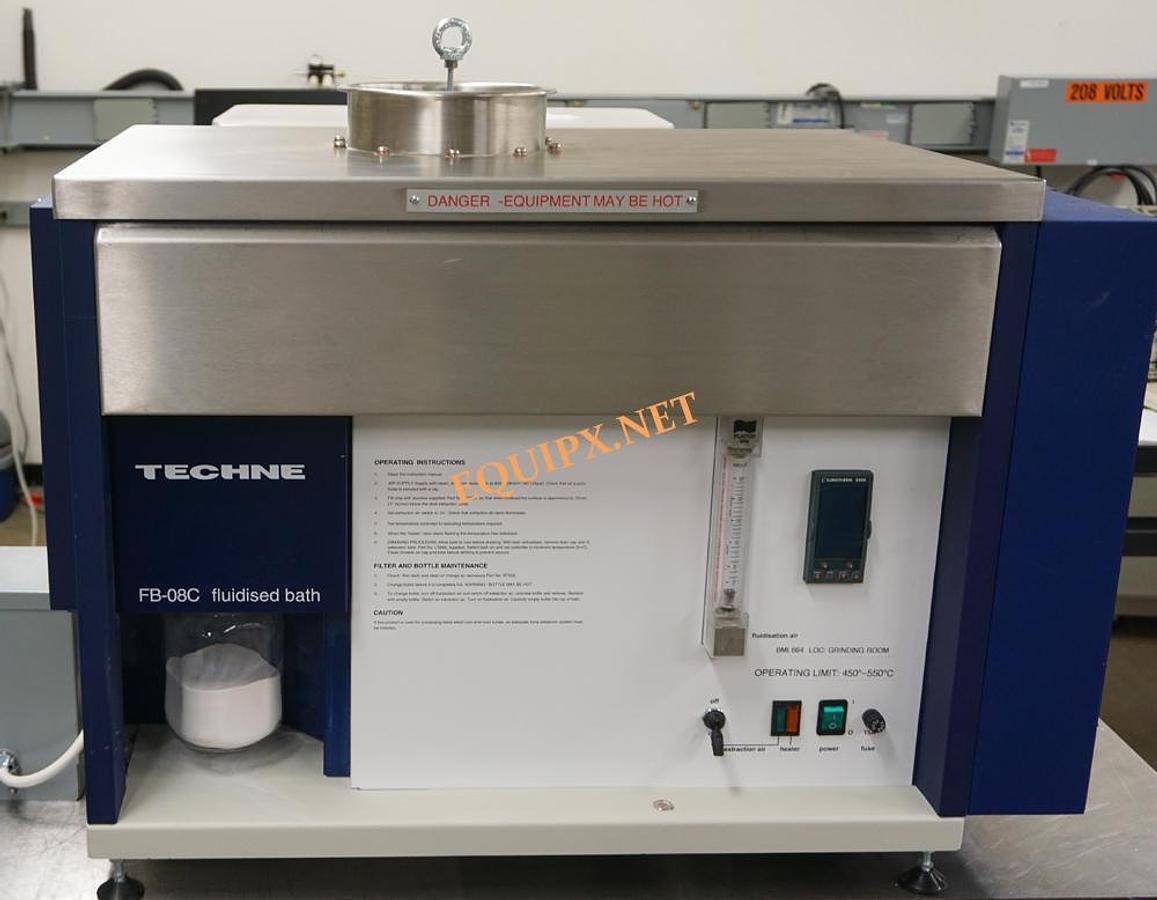

Techne FB-08C Precision Temperature fluidized sand bath with auto-air circulation, 230VAC

The Techne FB-08 fluidised F949 bath by Techne is for critical temperature calibrations and heat treatment processing. The units are suitable for many applications, including thermal testing of sensitive components such as semiconductor devices, wire products, and delicate transducers.

They can also be used as a constant temperature environment for chemical reactions. Due to their exceptional temperature uniformity and fast temperature immersions, the processing time is between two to three minutes per item for immersion in the bath, followed by quenching in a cold fluid. Because the fluidised bed is a fine dry powder, it does not have the surface tension effects of liquid baths and does not wet any objects immersed in it. The primary electrical insulating property of the aluminium oxide used in the baths is not affected by fluidisation, making it possible to conduct electrical measurements on immersed objects such as assembled printed circuit boards.

Used to carry out shape setting (heat treatment processing) of Stents from Nitinol wire safely, precisely controlled and uniformly. Platinum/tungsten products are now also being processed successfully.

There are two versions, the standard FB-08 offers manual control of fluidised air, and the FB-08C model includes an automatic fluidising air control plus an RS232 interface for remote user control by a PC.  The software allows automatic switching on and off, temperature control with up to 20 setpoints with ramping capability, data logging interval adjustment (between 5 to 60 seconds); results can be sent to Excel.

Additional options

Probe holder accessory for comparison calibrations of temperature sensors, the stability and uniformity are better than 0.010°C in dead bed mode.

Dust suppression system FFB08DS1 provides a bolt-on probe holder and chimney assembly, thus sealing the FB-08 and making it suitable for use in a calibration lab where airborne dust must be avoided. The user can insert temperature probes for calibration purposes while all aluminium oxide is fully contained within the bath. This accessory also allows silent running of the FB-08. The integrated chimney includes a filter in the upper section and a small exhaust pipe right at the top to prevent pressure build-up. The FFB08DS1 is the best solution for calibrating probes in a fluidised bath within a calibration laboratory.

Precision Fluidised Bath FB-08C 230v (50/60Hz) fluidised bath with probe plate, temperature controller, auto airflow (excl. basket and alumina)
