Suruga Seiki DS102MS Stepping Motor Contoler AC100-240V

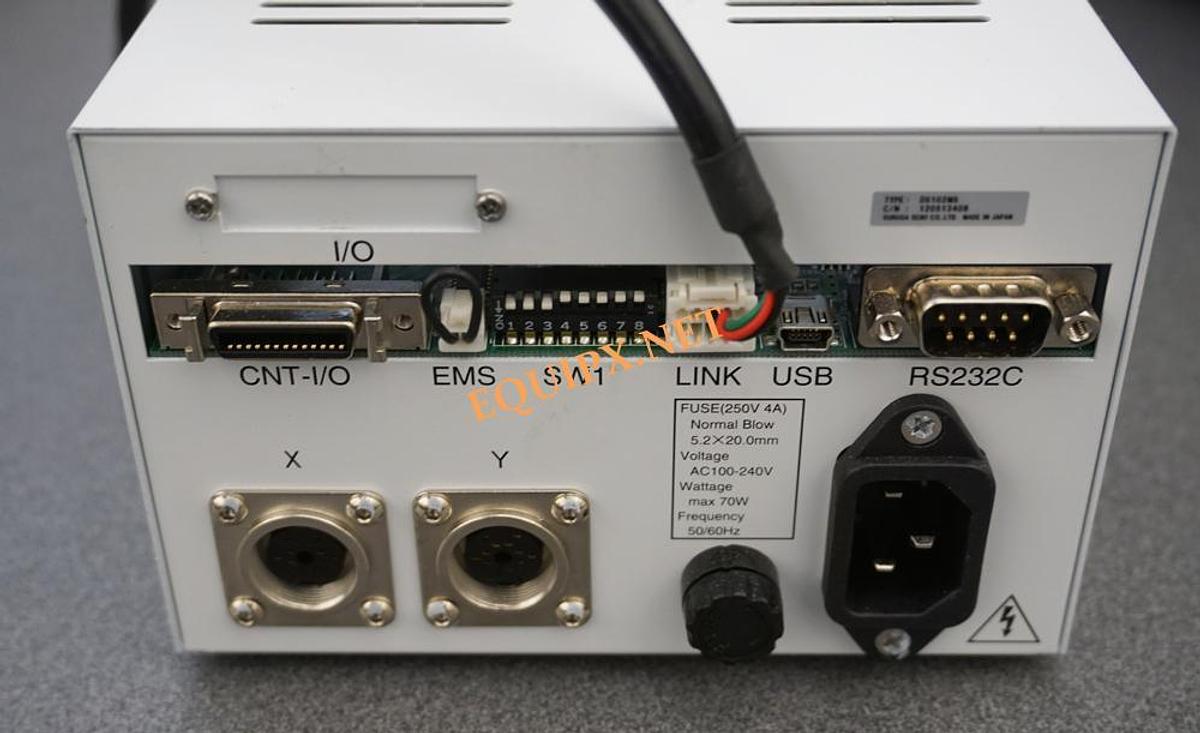

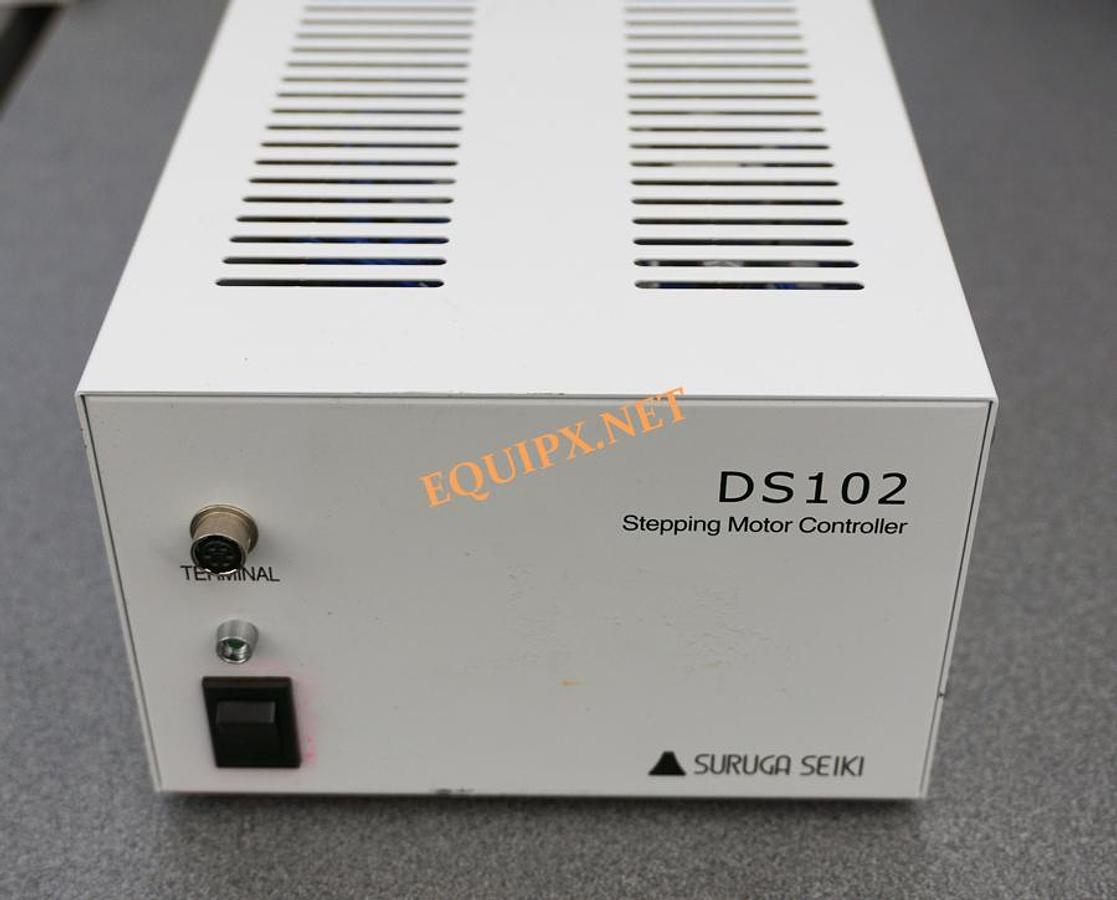

| | The DS102MS stepping motor controller is a small and low cost two axis controller for driving two 5-phase DS102 (0.75A/phase) stepping motors. The DS102MS has 16 levels of microsteps. Linear interpolation of two axes is possible.Using the link function, it is possible to link and use three units (up to six axes can be controlled). Using a USB hub connection, one PC can control up to 24 axes. RoHS compliant, you can use this product overseas with ease. Compatible with the D200 series, so you can use your existing software without changes. Note 1：For setting the program functions and teaching functions, etc., of the DS102 series controller, the separately available 'DT100' handy terminal and dedicated control software 'DSCONTROL-WIN' are required. Note 2：You cannot use the solenoid brake as is. Please contact us. | | | | | | | | | | | | | | | | | 1.Power switch *1
2.POWER LED
3.TERMINAL
| 4.RS232C *2
5.USB Connector *3
6.LINK Connector7.DIP switch *4
8.EMS Connector *5
| 9.For controlI/O connector *6
10.Universal I/O connector *7
11.Stage connector*8
12.Fuse holder
13.AC Inlet | | | | | | | | | | | | Specifications: | | | | | | | Outside dimension | 140（W）×300（D）×90（H）mm | | Input power | AC100～240V±10％、50/60Hz | | Maximum power consumption | 70W or less | | Driver type | micro step (16 levels) | | Driver rated current | 0.75A/phase | | Number of control axis | 2 | | Coordinate setting range | ±99,999,999pls | | Driving speed setting range | 1～999,999pps | | Startup speed setting range | 1～9,999pps | | Acceleration/deceleration speed time setting range | 1～9,999ms | | Machine limit | Two points per axis CW/CCW direction (logic switchable) | | Proximity origin detection | 1 point per axis (logic switchable) | | Origin detection | 1 point per axis (logic switchable) | | Origin detection method | 12 methods | | home position | 1 point per axis (can be set arbitrarily within valid display range) | | External communication interface | RS232C:4,800～38,400bps【D-SUB9 pin male】 Only USB2.0: Full/Low Speed is supported【mini USB B terminal】 DIO: Input 9 points (24V photo coupler), output 12 point (open collector) | | Link function | RS485 (up to 3 units and 6 axes can be controlled externally by daisy chain) | | Program function | 8 program (100 step/program, can be started and stopped by control I/O) | | Teaching function | 64 points (positioning is enabled by control I/O) | | Interpolating function | 6 axis interpolation (however, linear interpolation between linked equipment is not available) | | General I/O | - | | Weight | 2.2kg |
|
|
