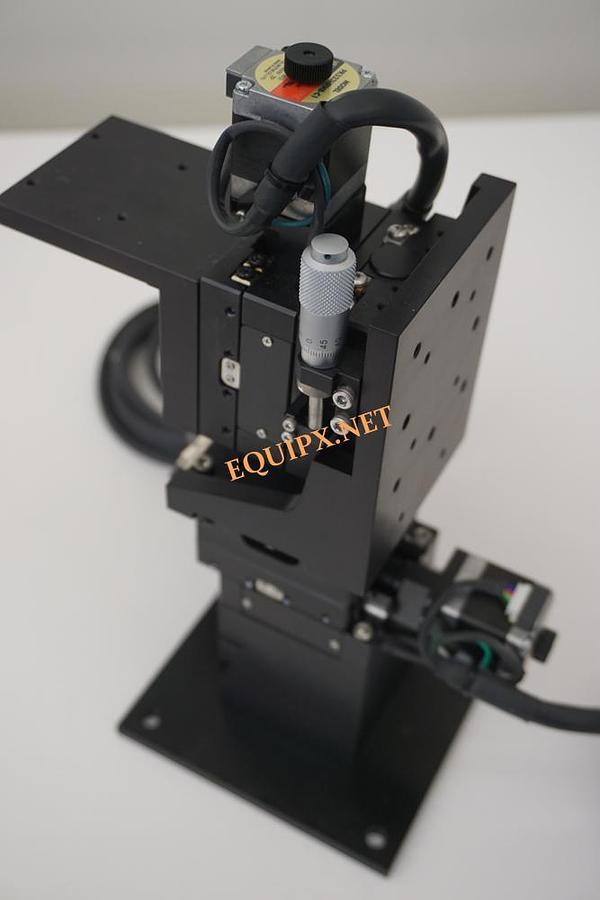

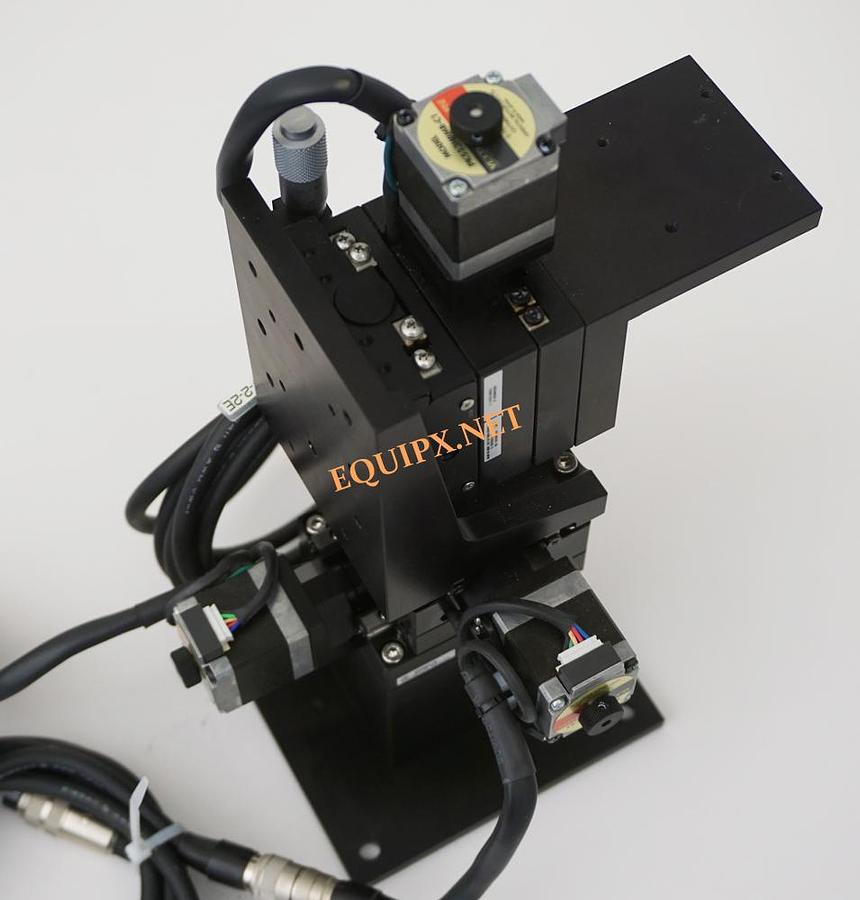

3X KXC 06020-GA linear stage mounted in XYZ configuration
Micrometer Z axis linear stage
Requires (2) DS102 controllers
KXC06020-G Motorized X Axis Crossed Roller 40x40mm Platform 20mm Travel Stage
| | | | The Suruga Seiki KXC06020-G is a motorized alpfa step X axis linear crossed roller stage with a stage platform size of 40x40mm, load capacity of 5.0kgf, travel distance of 20mm and a lead of 1mm. | | | | | | | | | | Specifications: | | | | | | | | Travel distance[mm] | 20 | | Size of stage face[mm] | [square]40 | | Feed screw[Ball screw] | phi 8lead 1 | | Guide | Crossed roller guide | | Material | Aluminum | | Surface finishing | Black alumite | | Weight[kg] | 0.44 | | Resolution(pulse)micro step | 1micrometer/0.5micrometer | | Resolution(pulse)micro step | 0.05micrometer(1/20) | | MAXspeed[mm/sec] | 20 | | Positioning accuracy for one direction | 5micrometer | | Single axis Backlash( or less) | +-0.5micrometer | | Load capacity | 5.0kgf | | Moment rigidity［″/N・cm］ | Pitching0.15/Yawin0.12/Rolling0.07 | | Lost motion( or less) | 1micrometer | | Backlash( or less) | 0.5micrometer | | Single axis Straightness of motion( or less) | 3micrometer | | Degree of parallelization( or less) | 30micrometer | | Pitching/Yawing | 20″/15″ | | Limit sensor | installed | | Origin sensor | installed | | Proximity origin sensor | － |
|
|
|
