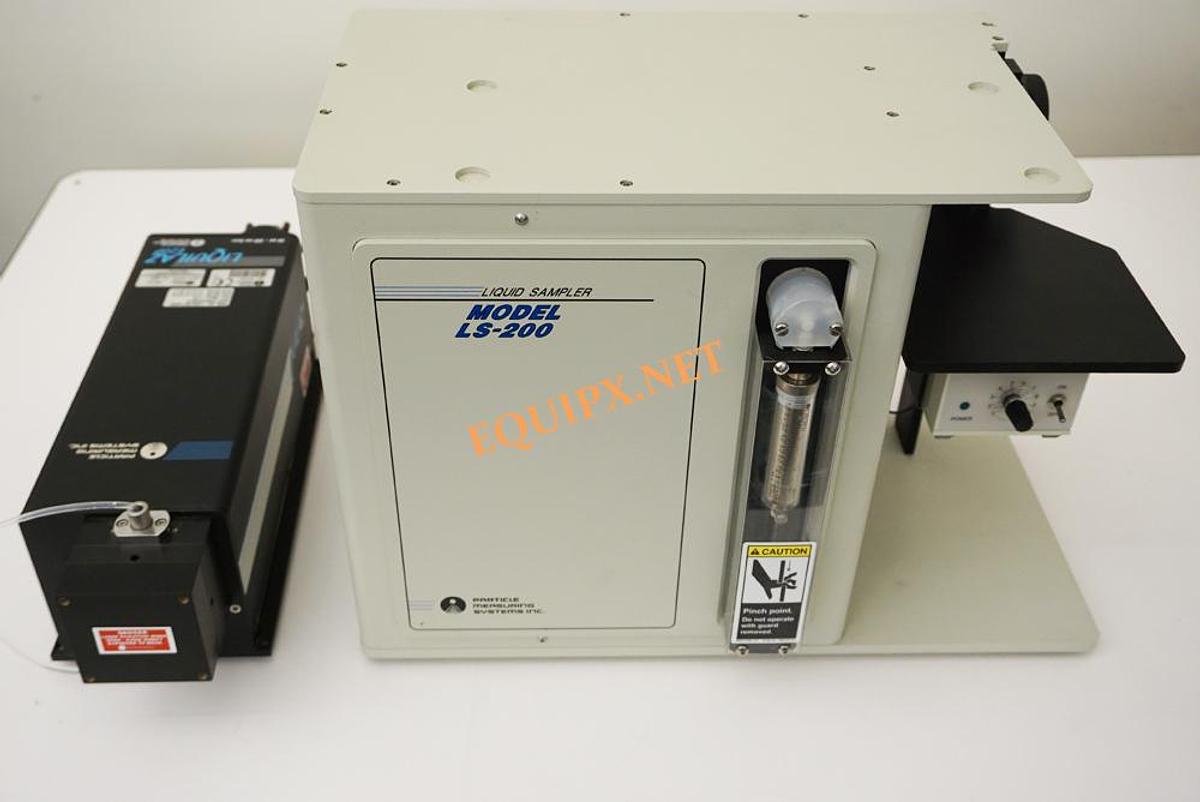

Particle Measuring Systems LS200 liquid sampler with Liquilaz E20P sensor
Particle Measuring Systems LS200 liquid sampler with Liquilaz E20P sensor
$3,450 (USD)
or
Call (408) 209-9278
Description

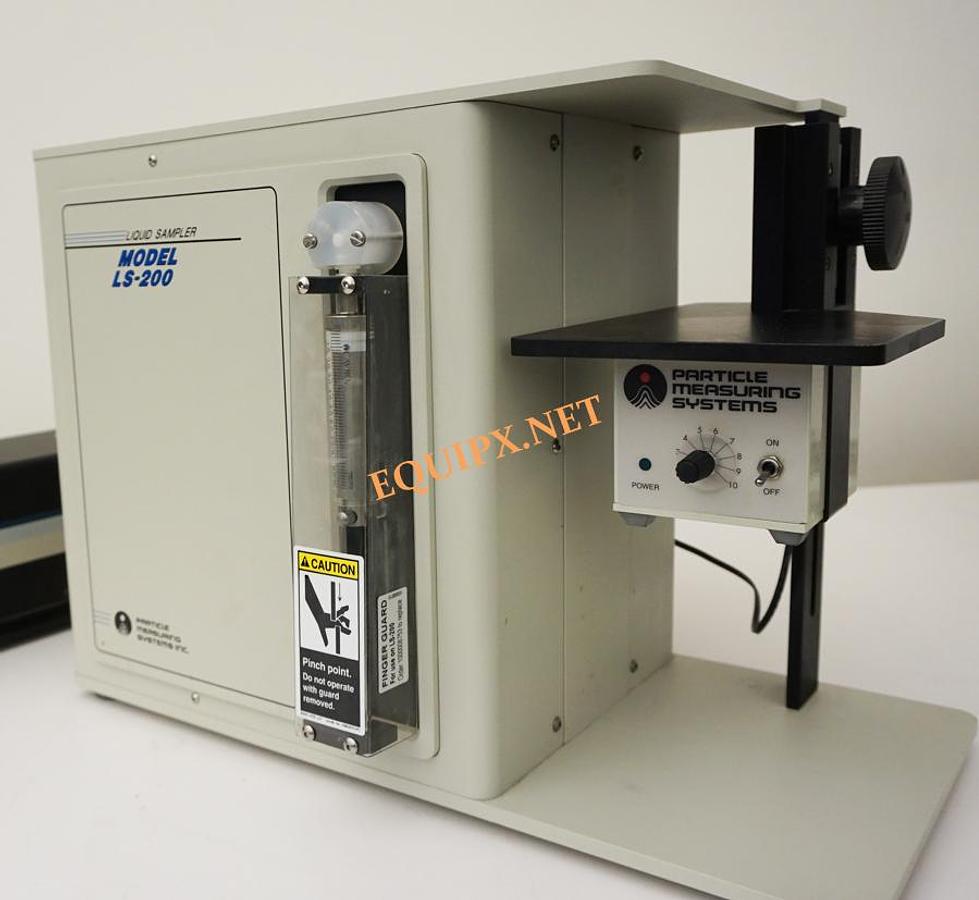

LS-200 liquid sampler specifications
• Liquid Type: Non-Corrosive Liquids• Syringe Size Range: 1, 5, 10, 25 ml
• Sampling Mode: Vacuum Syringe Pump
• Power: 100-240 V, 50-60 Hz
• Sample Volume: Adjustable from 0.1 ml to 25 ml

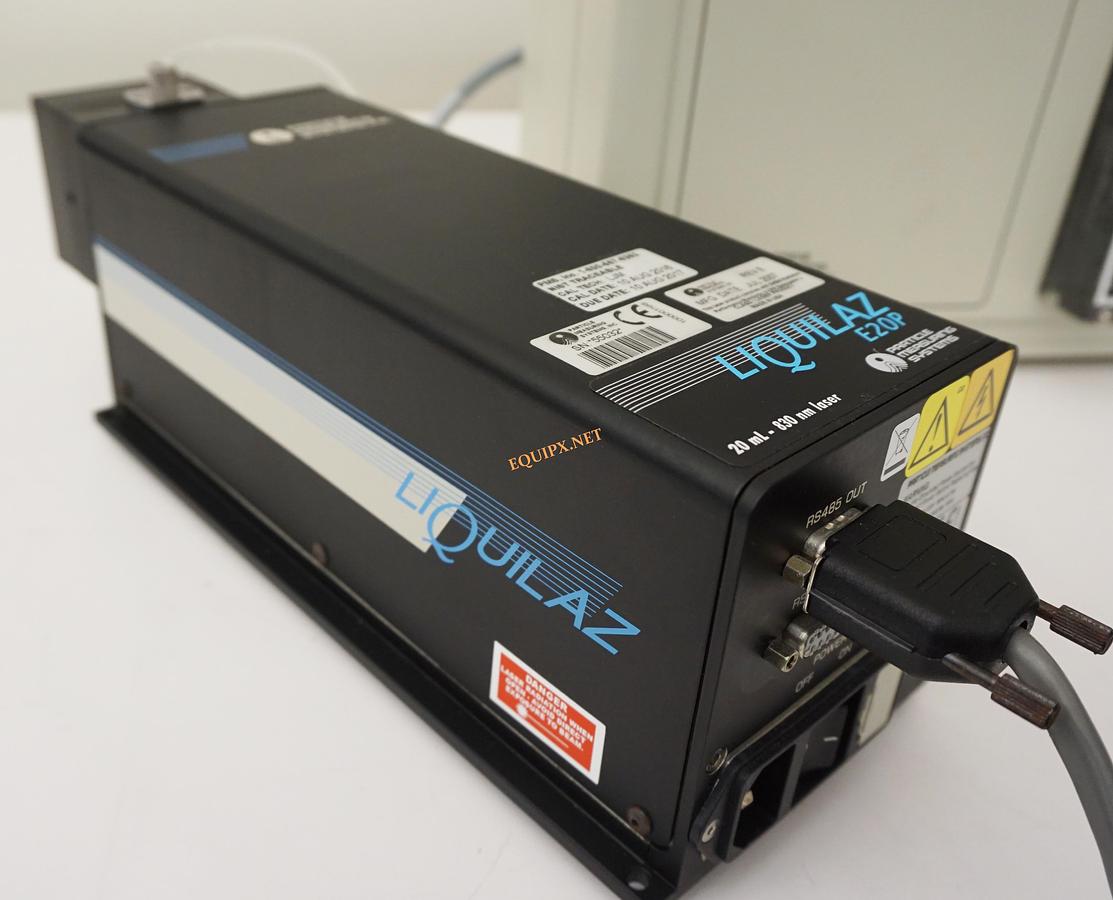

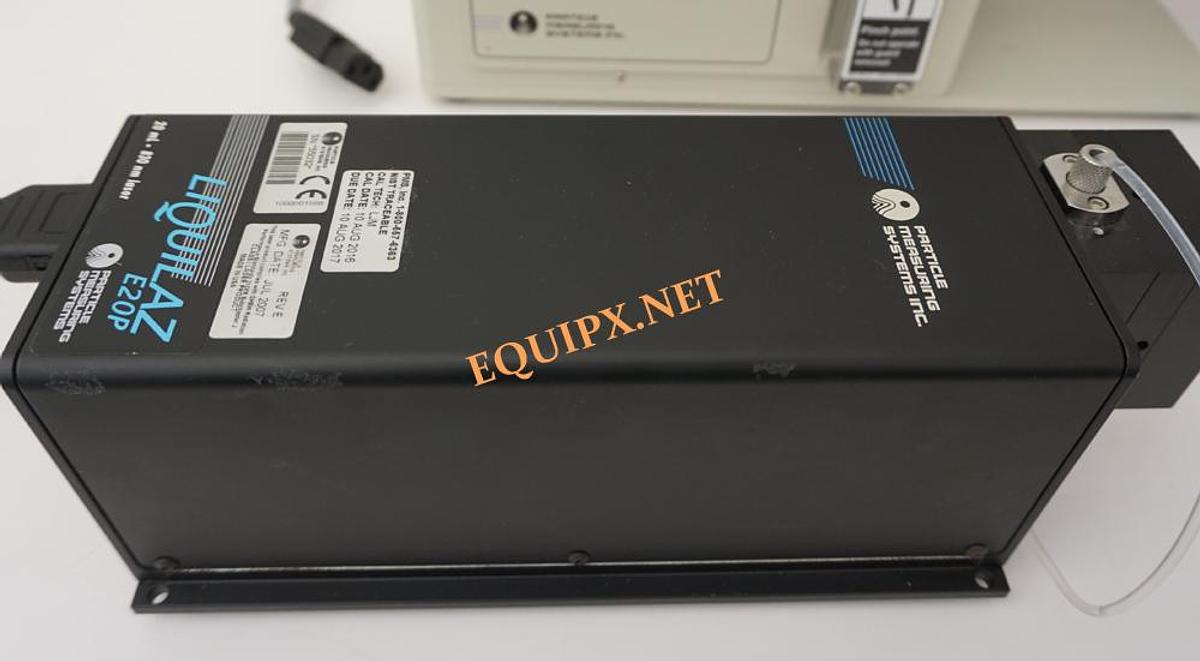

Liquilaz E20P
Size range 2 – 125 μm
20 mL/min ± 10%
Size channels User-adjustable from 1 to 15
Resolution Less than 10% at 10 μm
Wetted surfaces Fused silica, black quartz, Kalrez®, and Kel-F®
Liquid connections 3 mm flare or 1/4-inch Flaretek®
Pressure range 0 – 100 psi
Sample temperature 50 – 122 °F (10 – 50°C)
Specifications
| Stock Number | 4147 |
| Sort | 0 |
