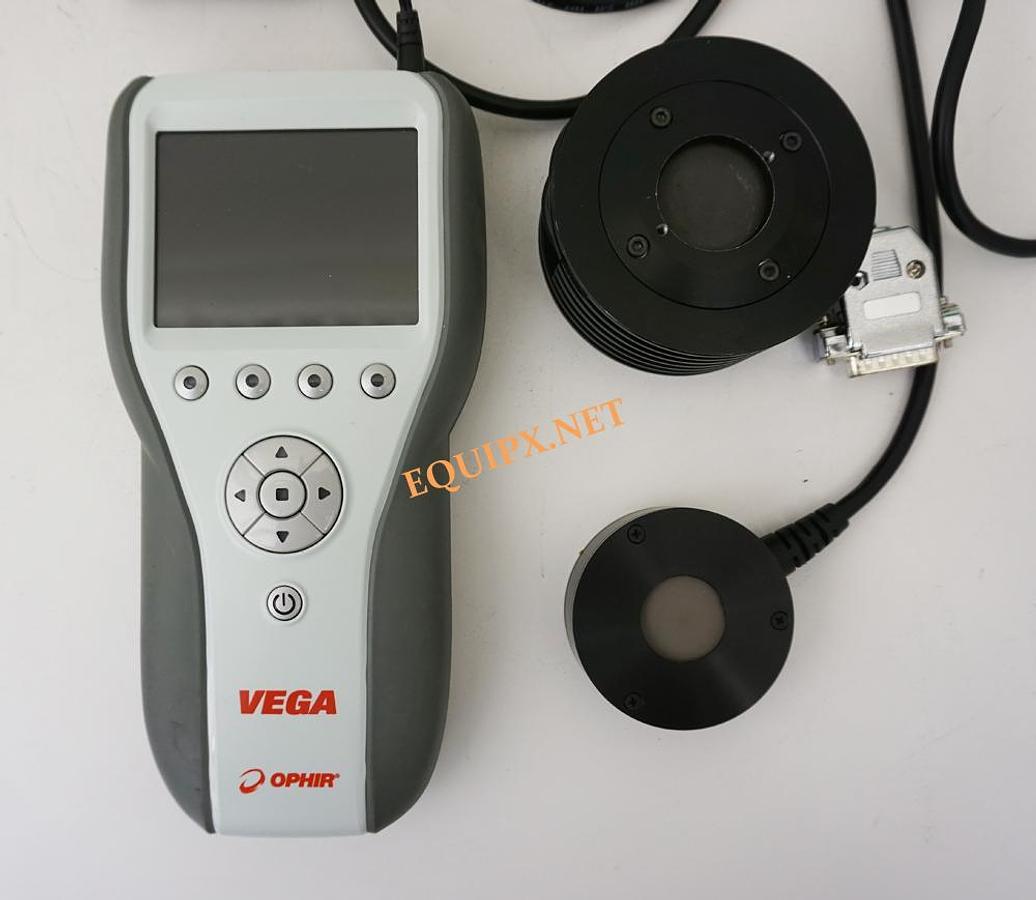

Ophir VEGA laser power meter with 2 sensors: L30A-SH-V1 and PE25BF-C ROHS
Ophir VEGA laser power meter with 2 sensors: L30A-SH-V1 and PE25BF-C ROHS
$3,450 (USD)
or
Call (408) 209-9278
Description

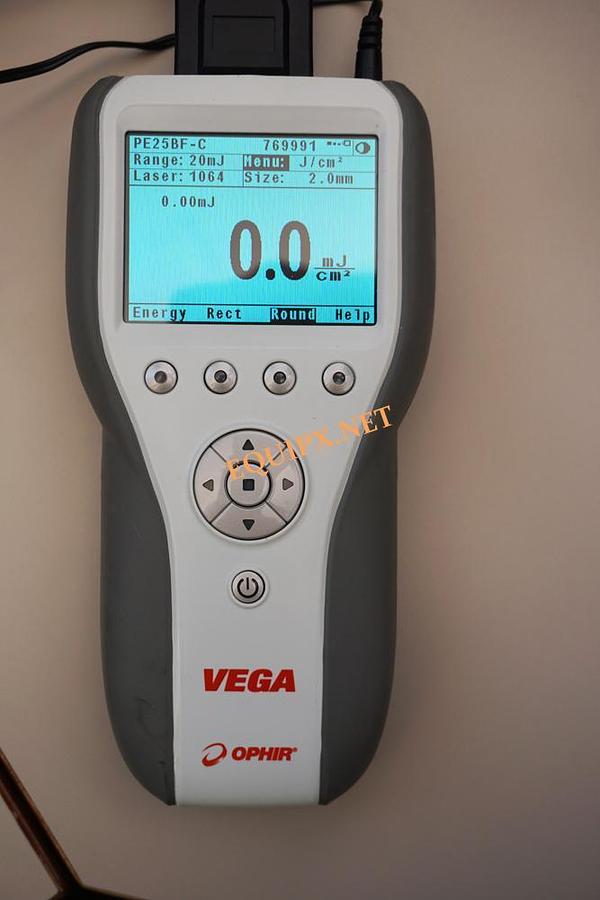

Ophir VEGA Meter
Compatible with all standard Ophir Thermopile, BeamTrack, Pyroelectric and Photodiode sensors Brilliant color large size TFT 320x240 display Clear screen color for work with laser safety goggles Illuminated keys for working in the dark Both digital and analog needle display USB and RS232 output to PC with Statistics package Select between English and Japanese interfaces Analog output Soft keys and menu driven functions with on line help Log every data point at up to 4000Hz with pyroelectric sensors Non-volatile data storage up to 250,000 points Laser tuning screen and power log 2 position kickstand
L30A-SH-V1 sensor including heat sink
The L30A-10mm is a thin profile thermal power/energy laser measurement sensor 10mm thick with a 26mm aperture. It can measure from 80mW to 8W free standing and 30W when heat sinked. It can measure energy from 20mJ to 60J. It has the spectrally flat broadband coating covering the spectral range from 0.19 to 20um. The sensor comes with a 1.5 meter cable for connecting to a meter or PC interface
PE25BF-C ROHS sensor
The PE25BF-C is a high damage threshold pyroelectric energy meter with a 24mm aperture. It can measure energies from 60µJ up to 10J. It can operate at repetition rates up to 250Hz and covers the spectral range from 0.15 - 3, 10.6µm. The sensor comes with a standard 1.5 meter cable for connecting to a meter or PC interface.
L30A-SH-V1 sensor including heat sink
The L30A-10mm is a thin profile thermal power/energy laser measurement sensor 10mm thick with a 26mm aperture. It can measure from 80mW to 8W free standing and 30W when heat sinked. It can measure energy from 20mJ to 60J. It has the spectrally flat broadband coating covering the spectral range from 0.19 to 20um. The sensor comes with a 1.5 meter cable for connecting to a meter or PC interface
PE25BF-C ROHS sensor
The PE25BF-C is a high damage threshold pyroelectric energy meter with a 24mm aperture. It can measure energies from 60µJ up to 10J. It can operate at repetition rates up to 250Hz and covers the spectral range from 0.15 - 3, 10.6µm. The sensor comes with a standard 1.5 meter cable for connecting to a meter or PC interface.
Specifications
| Stock Number | 4164 |
| Sort | 0 |
