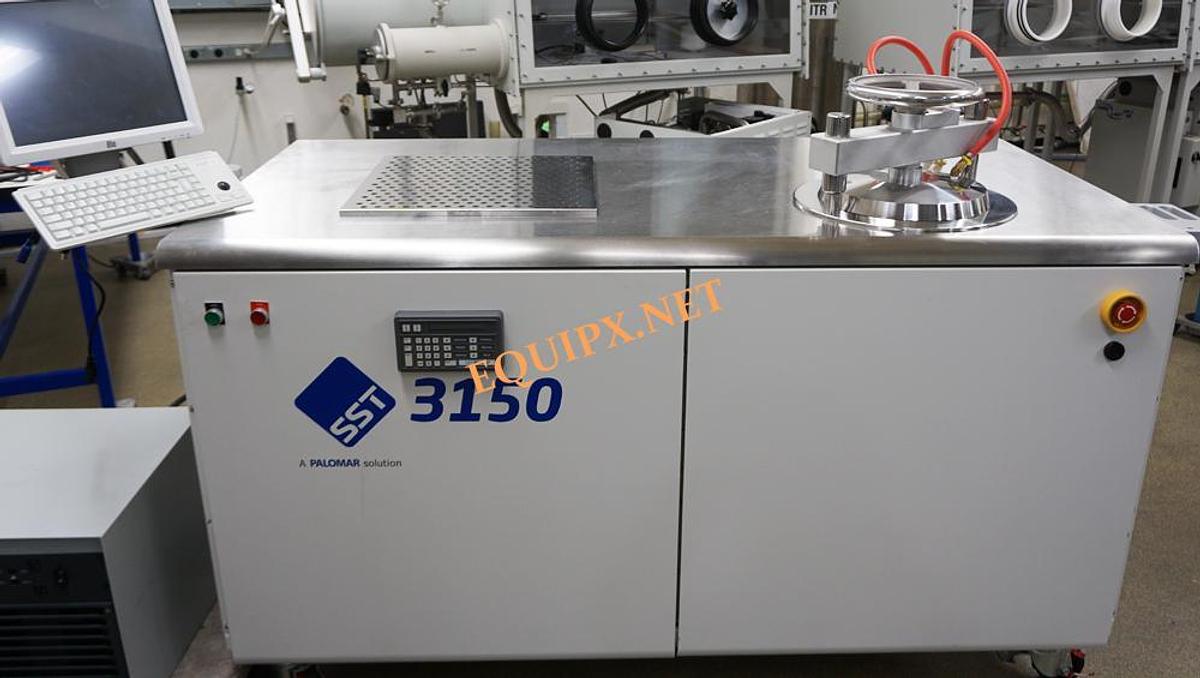

Palomar Technologies SST International 3150 High Vacuum Furnace (2012) with Cryogenic pump
Palomar Technologies SST International 3150 High Vacuum Furnace (2012) with Cryogenic pump
$149,000 (USD)
or
Call (408) 209-9278
Description

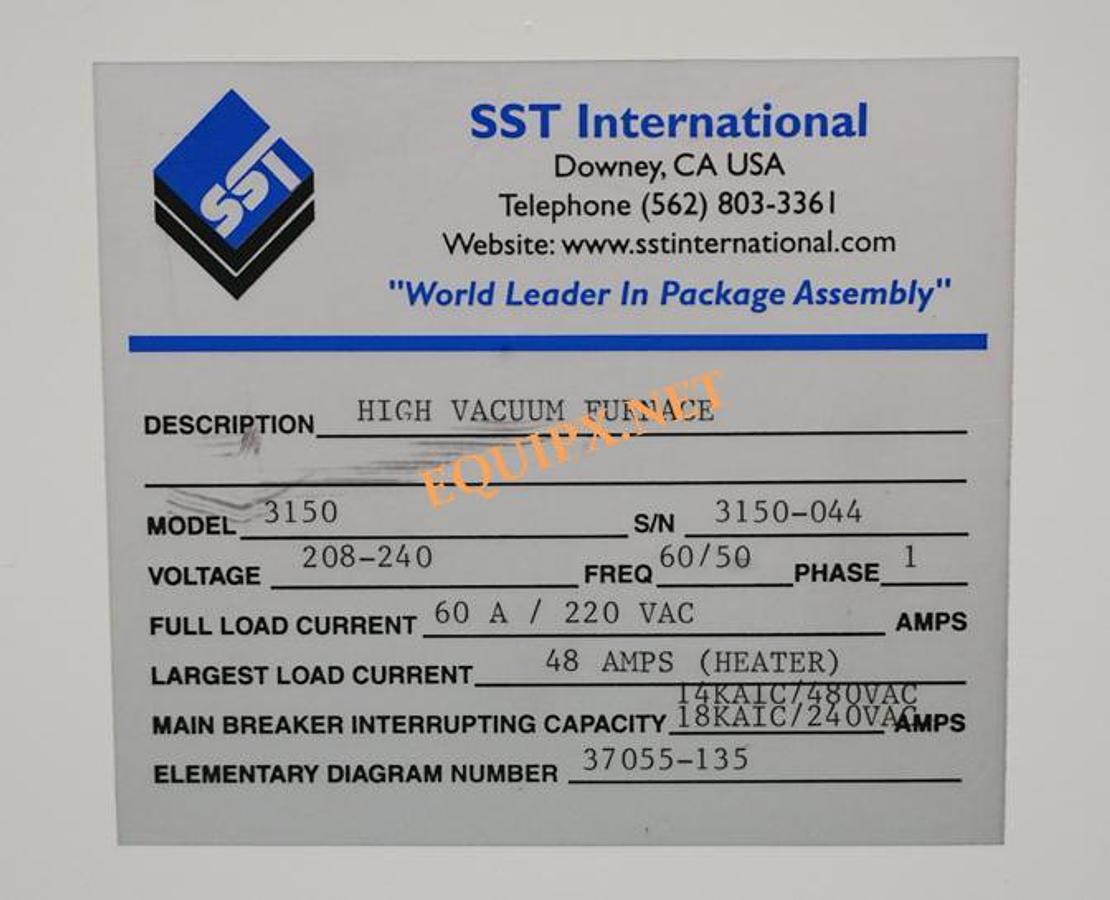

sn 3150-044
Manufacture date 2012
PC running Windows 7 OS

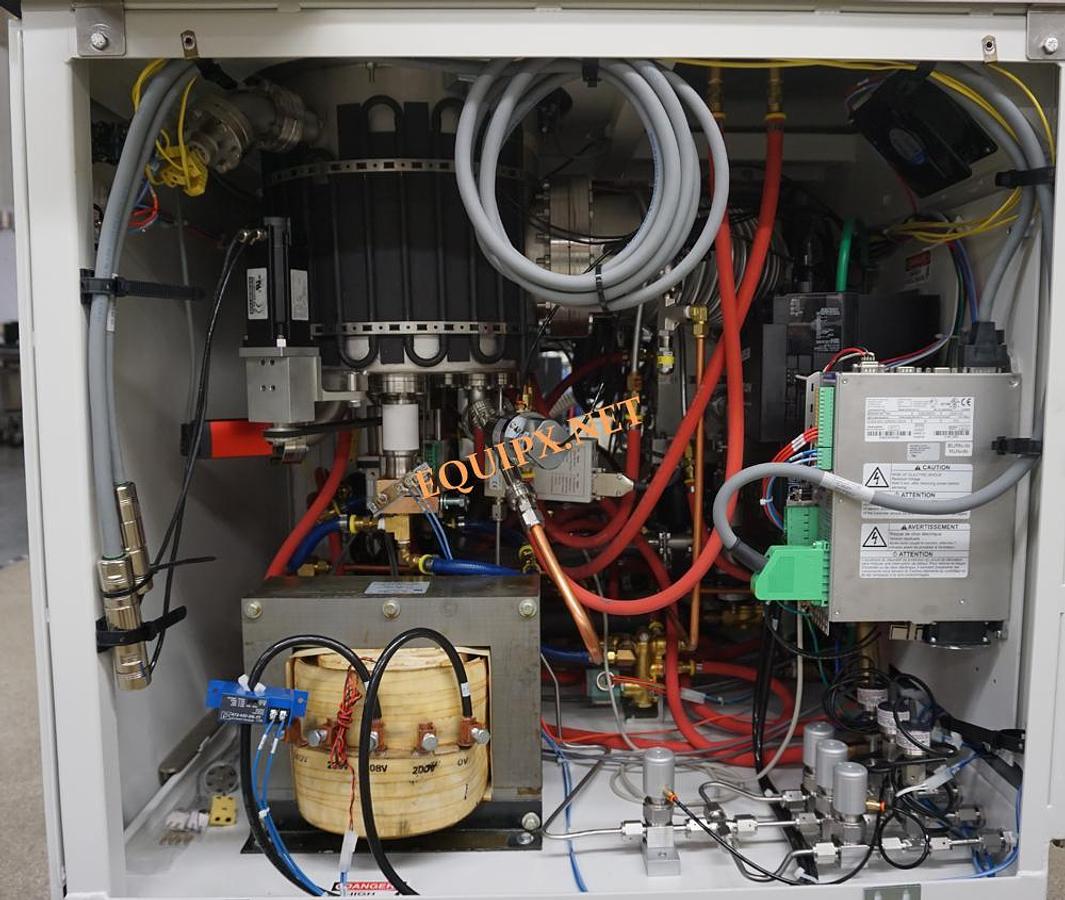

Vacuum Pump Type: Turbomolecular Drag Pfeiffer HiPace 700 with TC400 electronic driver unit

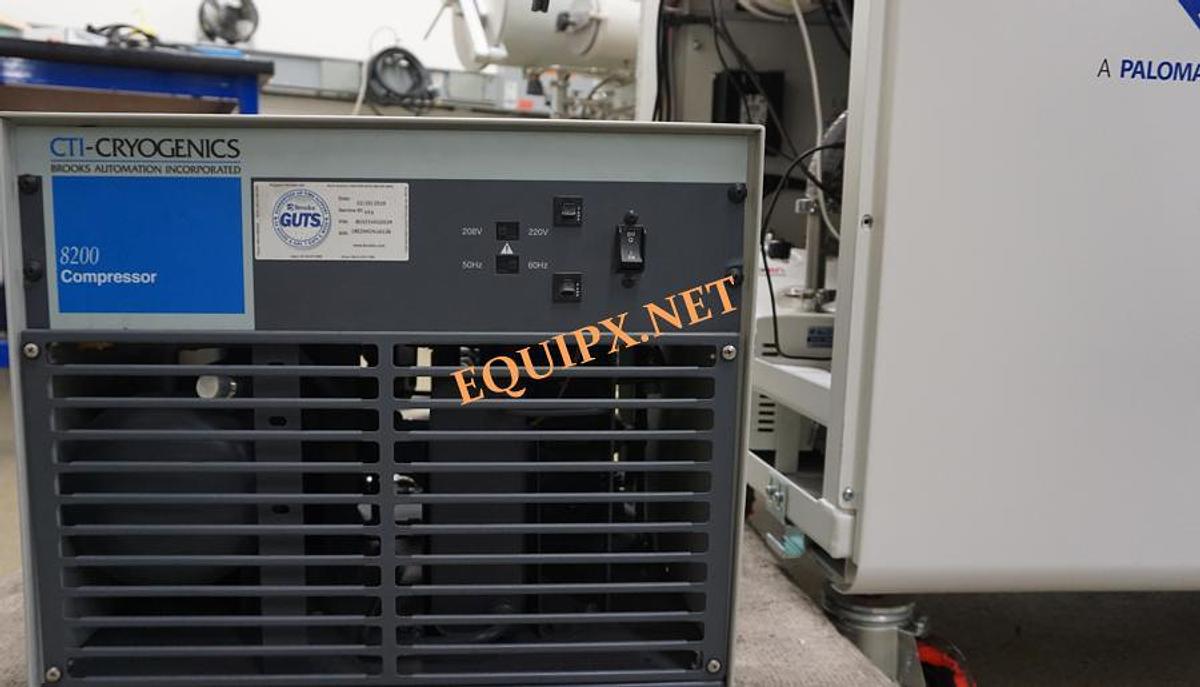

Brooks on-board Cryogenic Water Pump with CTI 8200 compressor
SRS 100 residual gas analyzer 0-100amu
Pfeiffer ACP series multistage roots dry pump
Watlow PC series SCR controller
Minimum Vacuum Level 1 x 10-7 torr (1 x 10-7 mbar)
Operating Temperature Range 100 to 500°C
Thermal Work Zone 25 in² (160 cm²)
Maximum Chamber Gas Pressure Level 12 psig (1.8 bar)
Process Gasses (three inputs) N2 required, (Ar, He) @ 90 psig (7 bar) minimum pressure
Electrical Service 208-240 volts, 60 amps, 50/60 Hz, 1 phase, 5 kilowatt average, 15 kilowatt peak
Cooling Water Required 2 gpm (8 lpm) @ 20-25°C, 2 kilowatt capacity minimum
Compressed Air Required 90 psig (7 bar)
Work Surface Height 37 in (95) cm adjustable
Overall Size (W x D x H) 94 x 43 x 54 in (238 x 109 x 137 cm)
Total Weight 1800 lb (816 kg).
Specifications
| Stock Number | 4221 |
| Sort | 0 |
