LEPEL CS Plus Jr. CAP Sealing System

LEPEL CS Plus Jr. CAP Sealing System

$3,450 (USD)

or
Call (408) 209-9278

Description

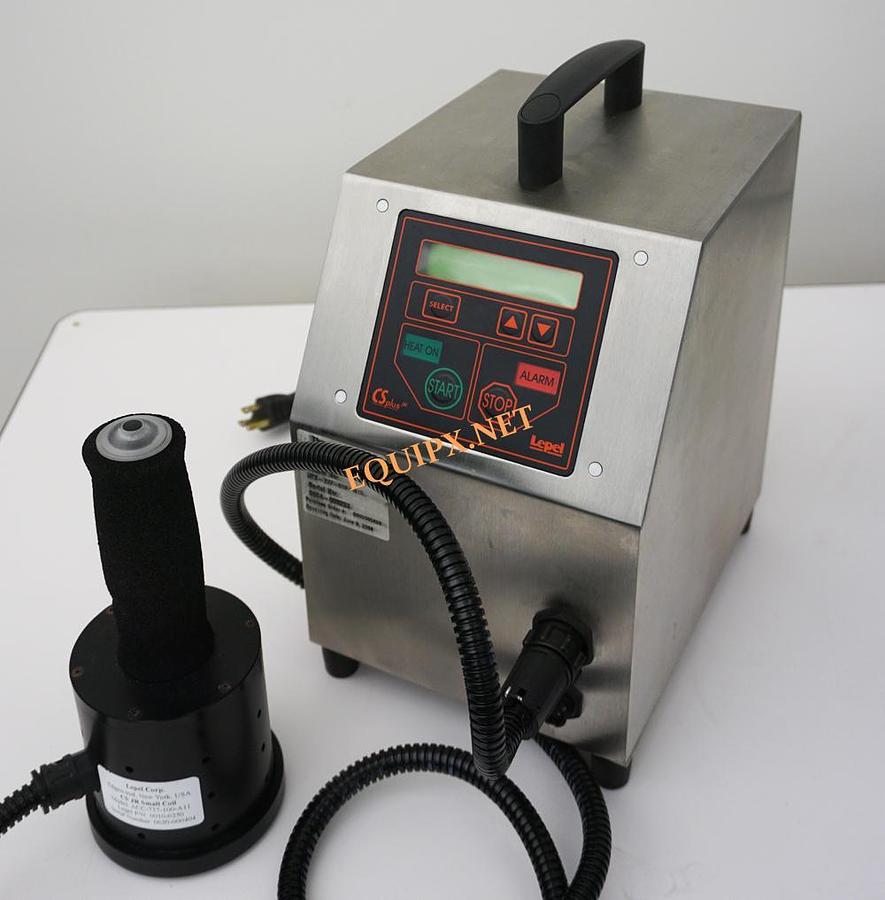

The portable CS Plus Jr provides dependable, versatile cap sealing in a convenient, hand-held device designed specifically for low production applications and laboratory development programs.

This user-friendly, cost-efficient method for applying induction seals includes a simple, multi-function LCD display and its performance may be enhanced through a range of optional equipment — including a stand and conveyor sealing head.

The CS Plus Jr cap sealing system delivers strong, tamper-evident seals that prevent leakage and ensure integrity for a range of products, including food, pharmaceuticals, beverages, cosmetics, solvents, petroleum products and chemicals.



BENEFITS

  • Convenient and portable: Sturdy yet lightweight construction with an ergonomic design seal
  • Economical: Ideal for low volume applications such as laboratory testing
  • Practical: Modular design expands capabilities with optional equipment
  • Dependable: Backed by Lepel‘s more than 40 years of experience providing trusted solutions

    • FEATURES

    Heavy-duty rectification with line transient suppression and capacitor filtering

  • Portable, lightweight and rugged hand-held design
  • All stainless steel construction
  • Automatic coil recognition, built-in thermal protection and power monitoring
  • Built-in thermal protection of the sealing head
  • Light and flexible power cable — 6 ft. standard (extendible up to 20 ft.)

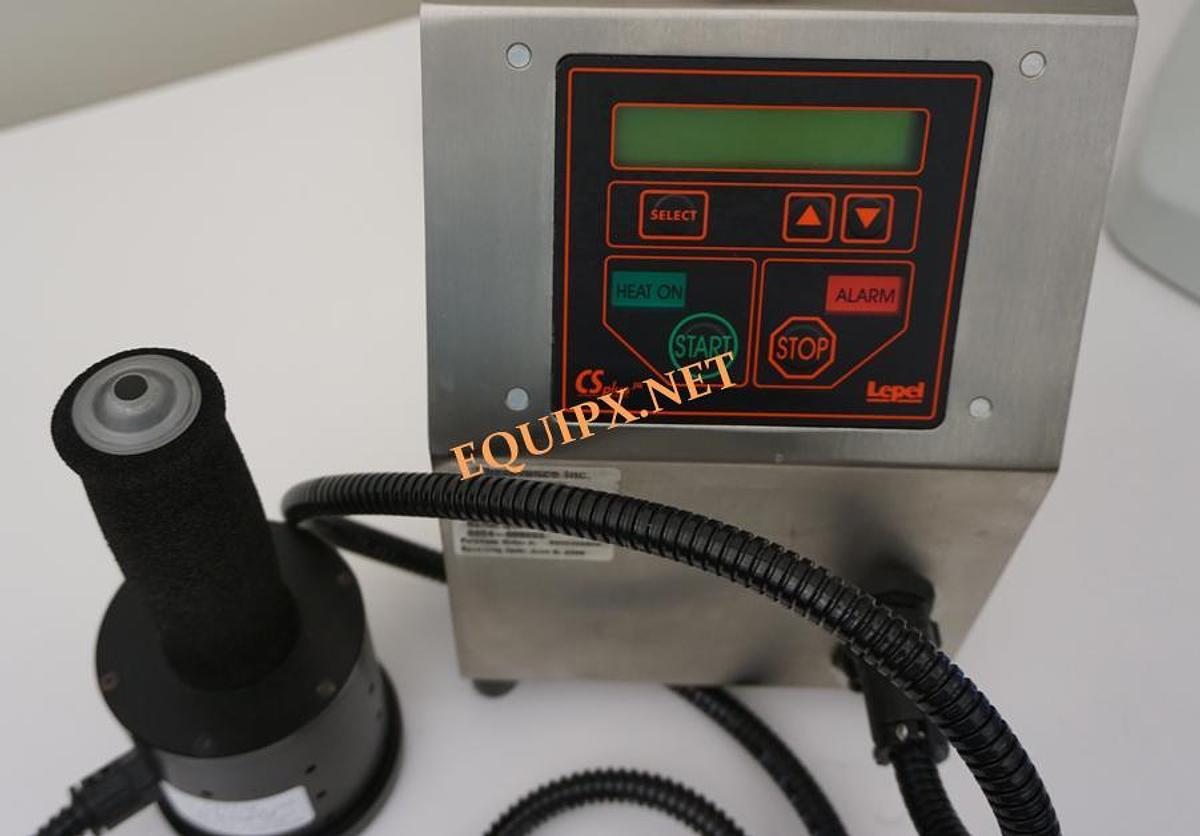

  • User-friendly control panel with multi-function programming
  • Ready/Heat On/Fault Status lights
  • End-of-cycle and fault audible signal
  • Up to 5 programs can be set by the customer and stored in memory
  • Input for a foot switch or remote start/stop operation. Foot switch is included with the unit
  • Timer control:
    0-9.9 sec in 0.1 sec increments,
    10-30 sec in 1 sec increments
  • No load (missing foil) detection circuit

    • TECH SPECS

    Input Voltage : 95-245 V AC, 50/60 Cycle

  • Phase :1
  • Power Rating : 1kW at 110 V AC 1.2kW at , 220 V AC
  • Ambient, Temperature Range: 32-97°F, (0-36°C)
  • Height : 12″ (30 cm)
  • Width : 7″ (18 cm)
  • Depth :9.5″ (24 cm)
  • Weight : 12 lb. (5.5 kg)
  • Cap SizeSeals closures from 5mm to 120mm, inc. specialty
    • Show All

    Specifications

    Stock Number4227
    Sort0
