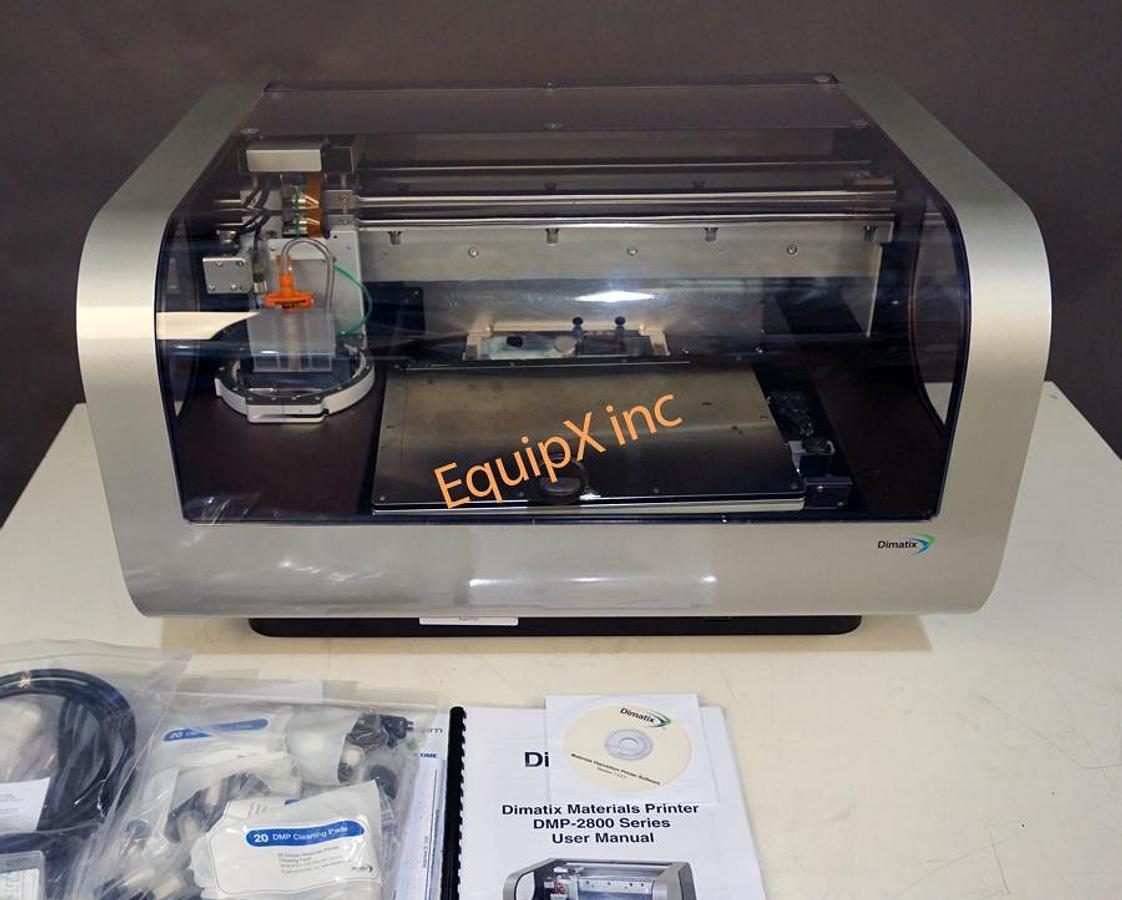

Fujifilm Dimatix DMP-2850 printer

Since its launch over 10 years ago, the DMP-2831 has become the industry standard laboratory tool for the development of inkjet deposition fluids and processes, with approximately 1,000 units placed worldwide in academic and industrial facilities. Fujifilm Dimatix is now introducing the DMP-2850 as a significant upgrade to better serve R&D customers with improved cameras, more intuitive application software, and provisions for automated data collection and analysis.

The DMP-2850 includes an embedded 64-bit PC preconfigured with Microsoft Windows 8.1 and updated Drop Manager software. Two high-speed cameras with finer resolution optics provide superior images for drop-watching and print inspection functions. To accompany the hardware changes, the DMP-2850 will build on user accessibility and flexibility with an enhanced software platform. Remote access API and open architecture enable remote monitoring of cameras and printer status. More options for complex printing will be available with feature recognition, auto registration functions, and support for multi-layer printing. Jetting evaluation and drop watching operations will also benefit from automated analysis.

A complete platform for precision printing of materials, jetting analysis, and fluid development, the DMP-2850 provides the user with powerful tools for R&D work. A drop watching system enables jetting performance to be analyzed in combination with extensive control over printhead operation. A fiducial camera facilitates print inspection and accurate print registration to existing features. Cartridges are available with two native drop sizes, one and 10 picoliters, allowing customers their choice of jettable fluids. Silicon MEMS cartridge technology ensures compatibility with a wide range of organic solvent or aqueous-based fluid chemistries.

Ideal applications for the materials printer include:

The DMP-2850 allows the deposition of fluidic materials on an 8x11 inch or A4 substrate, utilizing a disposable piezo inkjet cartridge. This printer can create and define patterns over an area of about 200 x 300 mm and handle substrates up to 25 mm thick with an adjustable Z height. The temperature of the vacuum platen, which secures the substrate in place, can be adjusted up to 60°C. The DMP-2850 offers a variety of patterns using a pattern editor program. Additionally, a waveform editor and a drop-watch camera system allows manipulation of the electronic pulses to the piezo jetting device for optimization of the drop characteristics as it is ejected from the nozzle. This system enables easy printing of structures and samples for process verification and prototype creation.

Fiducial camera features:

The most unique feature of this table top printing system is the printhead itself - a world first! FUJIFILM Dimatix has created a MEMS-based cartridge-style printhead that allows users to fill their own fluids and print immediately with the DMP in their own laboratory. To minimize waste of expensive fluids, each cartridge reservoir has a capacity of 1.5 ml. Cartridges can easily be replaced to facilitate printing of a series of fluids.serial no. 1641-1002-111010000100-120v, 200-240v
