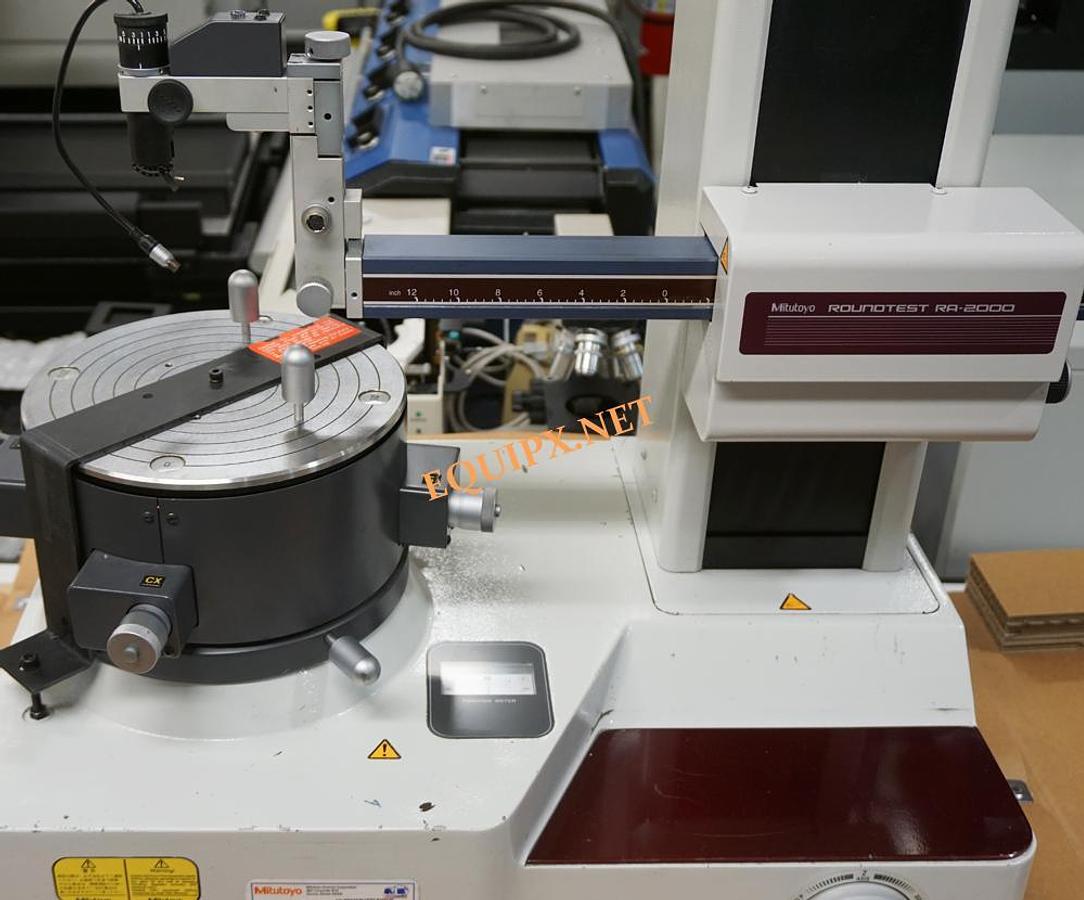

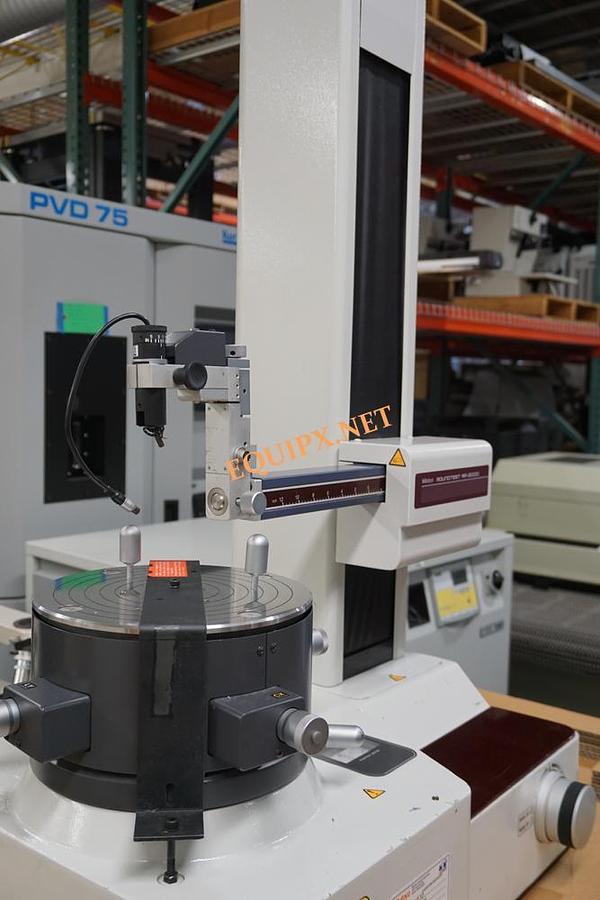

Mitutoyo RA2200AH roundness tester

Mitutoyo RA2200AH roundness tester

$19,500 (USD)

or
Call (408) 209-9278

Description

Mitutoyo America
Roundtest RA-2200AS/DS/AS/DH Series 211 Roundness / Cylindricity Measuring System

Series 211
Features

The RA-2200 provides a high accuracy, high speed and high performance in roundness measurement. The fully-automatic or a DAT (Digital Adjustment Table) function aided manual workpiece centering and leveling turns what used to be a difficult and finicky task into one that is simple enough for even untrained users to perform. This facilitates substantial reductions in overall measurement time. The RA-2200 system comes complete with powerful data analysis software ROUNDPAK which requires only simple manipulation using a mouse and icon, achieving enhanced functionality and ease of operation.

Technical Data

Turntable
Rotational accuracy (radial): (.8+.35H)μin {(0.02+3.5H/10000)μm}
Rotational accuracy (axial): (.8+.35R)μin {(0.02+3.5R/10000)μm}
H: Probing height (mm), R: Probing radius (mm)
Rotating speed: 2, 4, 6, 10rpm
Table top diameter: ø9.2” (235mm) AS / AH models
ø 7.9” (200mm) DS / DH models
Centering range: ±3mm (±5mm: DS / DH models)
Leveling range: ±1°
Maximum probing diameter: ø 11.8” (300mm)
Maximum workpiece diameter: ø22.8” (580mm)
Maximum workpiece weight: 66 lbs (30kg)
Vertical column (Z-axis)
Vertical travel: 11.8” (300mm) (22.8” (500mm): AH/DH models)
Straightness (λc2.5): 0.10μm / 100mm, 0.15μm / 300mm
(0.25μm / 500mm: AH / DH models)
Parallelism with rotating axis: 0.7μm / 300mm
(1.2μm / 500mm: AH / DH models)
Positioning speed: Max. 50mm/s
Measuring speed: 0.5, 1, 2, 5mm/s
Maximum probing height: 11.8” (300mm) (OD / ID)
[22.8” (500mm): AH / DH models)
Maximum probing depth: over ø32: 85mm (w/standard stylus)
over ø7: 50mm (w/standard stylus)
Horizontal arm (X-axis)
Horizontal travel: 6.9” (175mm) (Including a protrusion of
1” (25mm) the turntable rotation center)
Straightness (λc2.5): 0.7μm / 150mm
Squareness with rotating axis: 1.0μm / 150mm
Positioning speed: Max. 30mm/s with joystick operation
Measuring speed: 0.5, 1, 2, 5mm/s
Probe and stylus
Measuring range: ±400μm/±40μm/±4μm
(±5mm: tracking range)
Measuring force: 10mN~50mN (in 5 steps)
Standard stylus: 12AAL021, carbide ball, ø1.6mm
Measuring direction: Two directional
Stylus angle adjustment: ±45° (with graduations)
Data analysis system
Analysis software: Roundpak
Filter type:
2CRPC-75%, 2CRPC-50%, 2CR-75% (phase corrected),
2CR-50% (phase corrected), Gaussian, filter OFF
Cutoff value;
15upr, 50upr, 150upr, 500upr, 1500upr,
15-150upr, 15-500upr, 15-1500upr, 50-500upr,
50-1500upr, 150-1500upr, Manual setting
Reference circles for roundness evaluation:
LSC, MZC, MIC, MCC
Air supply
Air pressure: 390kPa (4kgf/cm2)
Air consumption: 30L/min.
Power supply: 100V AC – 240V AC, 50/60Hz
Dimensions (W x D x H):26.3 x 20 x 35.4”
(667 x 510 x 900mm)
26.3 x 20 x 43.3”
(667 x 510 x 1100mm: AH / DH models)
Mass: 396 lbs (180kg)
440 lbs (200kg) AH / DH models

Description

This is a highly accurate form measuring system which allows you to measure roundform geometry like cylindricity.

The Roundtest RA-2200 offers the following benefits:
  • It has fully motorised axes movement.
  • Its extremely high turntable accuracy of (0.02+0.00035H) µm gives you excellent form analysis.
  • The user friendly software, ROUNDPAK, gives you easy drag and drop usage and a wide range of parameters.
  • ROUNDPAK also has easy-to-use part programming and single measurement functions.
  • A huge number of styli provides you with maximum flexibility.
  • There is an auto follow function for easy and quick pre-centering of the workpiece.

    • There is a wide variety of models available to suit any application.
    RA-2200DS/DH: These models have a navigation function supplied as standard, to quickly and simply guides you through the centering and leveling task. The models are equipped with the D.A.T. (Digital Adjustment Table).

    RA-2200AS/AH: The models have an automatic centering and leveling turntable supplied as standard , freeing you from the centering and leveling task. The models are equipped with the A.A.T. (Automatic Adjustment Table).

    Specification


    Turntable:

    Rotational accuracy:
    Radial:
    (0,02+0,00035H) µm
    H: Measuring height from turntable surface (mm)
    Axial:
    (0,02+0,00035X) µm
    X: Radial distance from center (mm)
    Rotational speed:
    2, 4, 6, 10 rpm
    Max. probing Ø:
    300 mm
    Max. workpiece Ø:
    580 mm
    Max. turntable loading [kg]:
    30
    Centering range:
    DS / DH: ±5 mm
    AS / AH: ±3 mm
    Leveling range:
    ±1°

    Vertical column:

    Max. probing height:
    AS / DS : 300 mm
    AH / DH: 500 mm
    above turntable surface
    Max. probing depth:
    85 mm (minimum ID : ø32 mm)
    50 mm (minimum ID : ø7 mm)
    Straightness:
    0.1 µm / 100 mm
    AS / DS : 0.15 µm / 300 mm
    AH / DH: 0.25 µm / 500 mm
    Parallelism with rotation center:
    AS / DS : 0.7 µm / 300 mm
    AH / DH: 1.2 µm / 500 mm

    Horizontal axis:

    Straightness:
    0.7 µm / 150 mm
    Perpendicularity to rotation center:
    1 µm / 150 mm

    Software:

    ROUNDPAK

    FORMTRACEPAK-AP
    (optional for roughness detection unit)
    Printer:
    Built-in thermal line printer (optional external printer)
