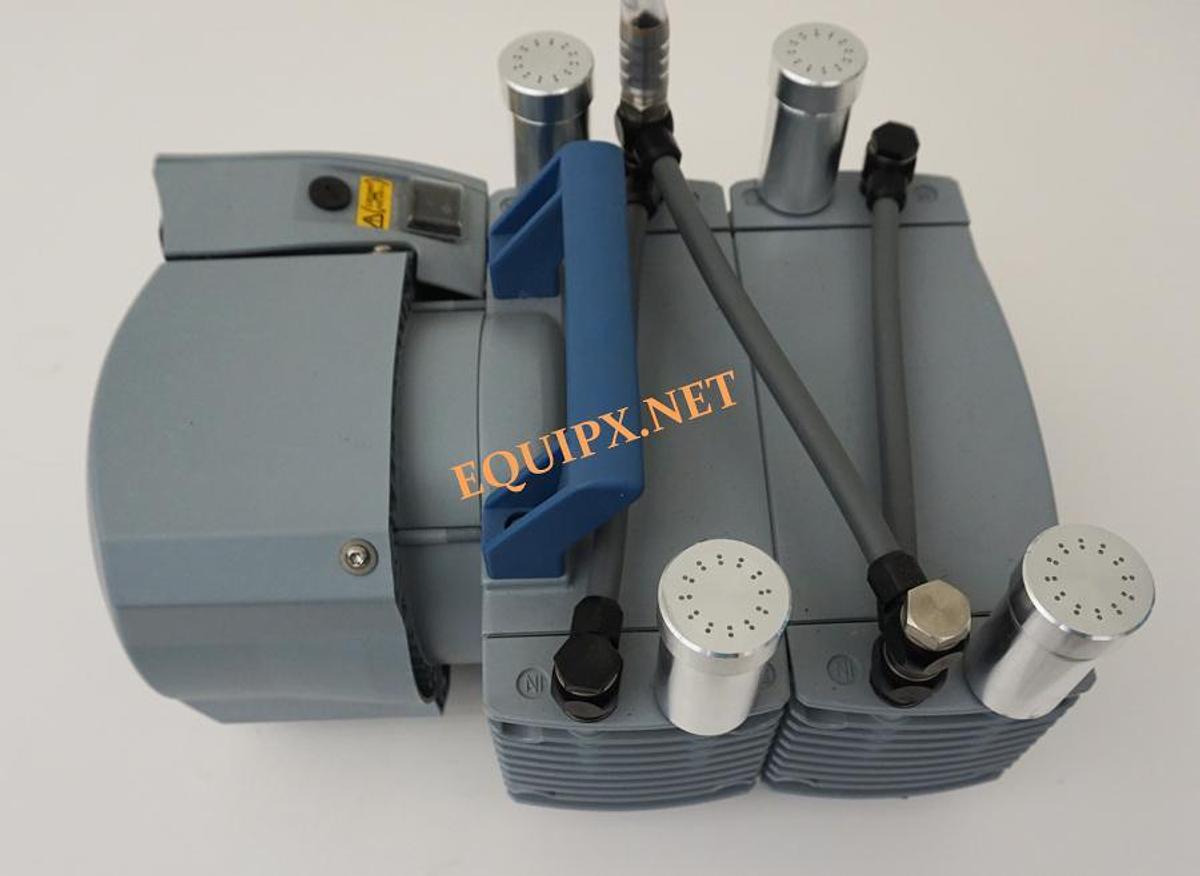

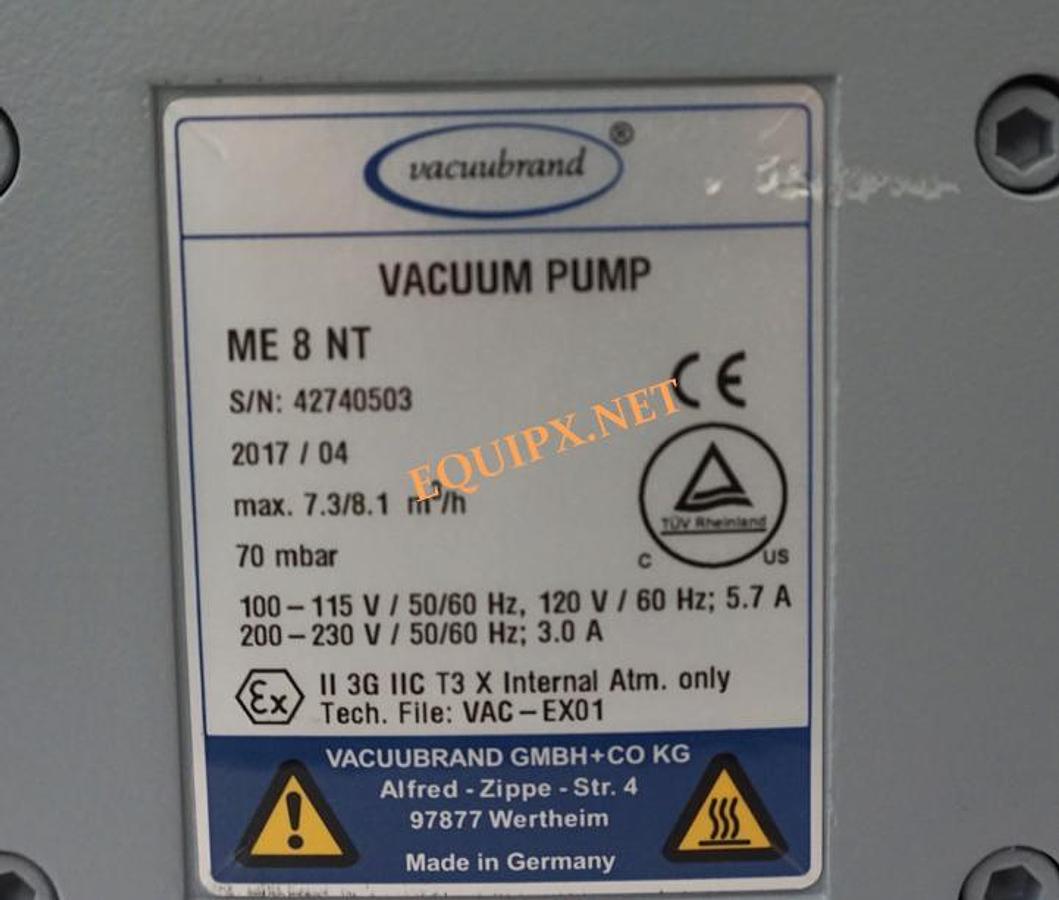

Vacuubrand ME 8 NT, 4.8CFM, 100-120v/200-230v
Vacuubrand ME 8 NT, 4.8CFM, 100-120v/200-230v
$2,650 (USD)
or
Call (408) 209-9278
Description
manufacture date 2/2016
Technical data and graphs
| Max. pumping speed 50 Hz | 7.3 m3/h | |
| Max. pumping speed 60 Hz | 4.8 cfm | |
| Ultimate vacuum | 70 mbar / 52 torr | |
| Number of heads | 4 | |
| Number of stages | 1 | |
| Lower ambient temperature (operation) | 10 °C | |
| Upper ambient temperature (operation) | 40 °C | |
| Lower ambient temperature (storage) | -10 °C | |
| Upper ambient temperature (storage) | 60 °C | |
| Max. back pressure (abs.) | 2 bar | |
| Inlet connection | Hose nozzle DN 8-10 mm | |
| Outlet connection | 2 x silencer / G1/4" | |
| Rated motor power | 0.25 kW | |
| Rated motor speed at 50/60 Hz | 1500/1800 min-1 | |
| Protection class | IP 40 | |
| Dimension L in mm | 328 mm | |
| Dimension W in mm | 239 mm | |
| Dimension H in mm | 198 mm | |
| Weight | 16.4 kg | |
| Noise level at 50 Hz, typ. | 45 dBA | |
| ATEX conformity | II 3/- G Ex h IIC T3 Gc X Internal Atm. only | |
| NRTL certification | Yes | |
| Items supplied | Pump completely mounted, ready for use, with manual. | |
| Rated mains voltage range 1 | 110/230 V | |
| Mains frequency 1 | 50-60 Hz |
