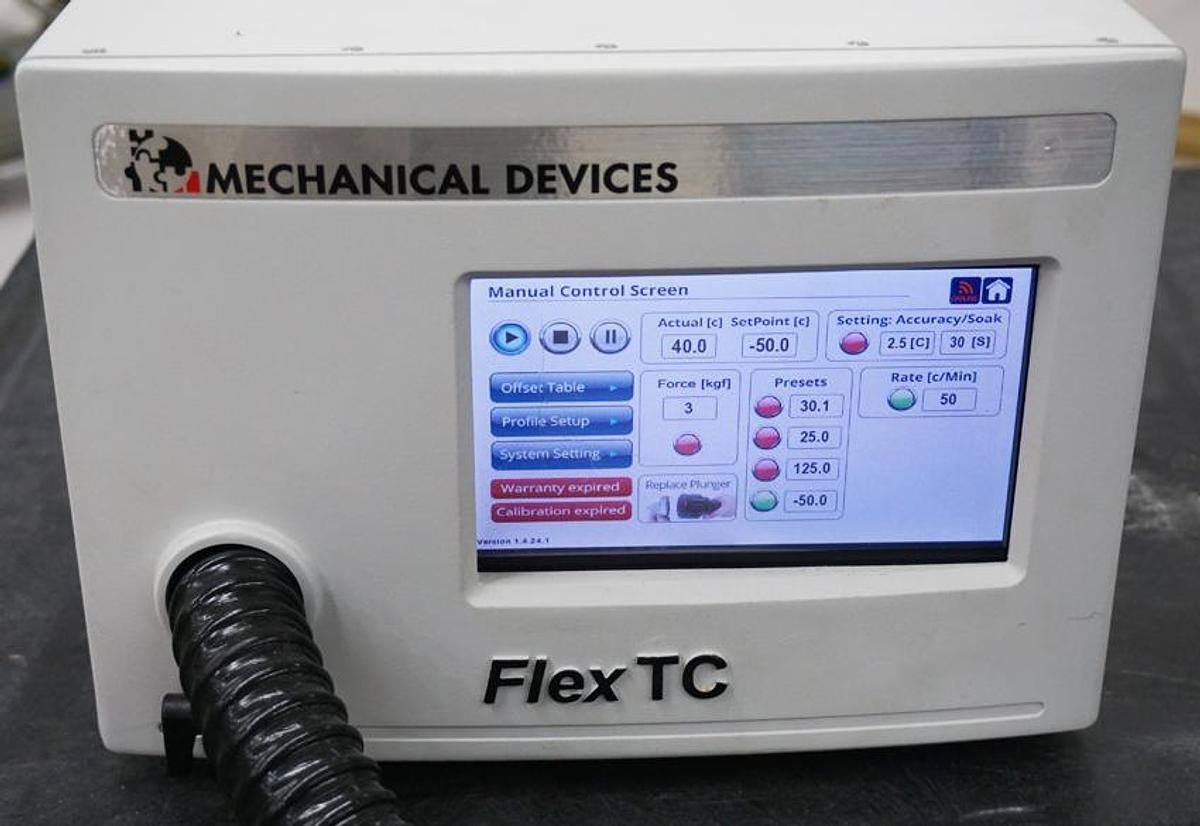

2018 Mechanical Devices FLEX-TC thermal forcing system model MDTC-485-1 Range -55C to 155C

2018 Mechanical Devices FLEX-TC thermal forcing system model MDTC-485-1 Range -55C to 155C

$7,950 (USD)

or
Call (408) 209-9278

Description


  • Tcase Temperature Range of - 55°C to +155°C*
  • Temperature accuracy < 0.2°C
  • Fluid Free Operation.
  • Compact & Portable Design.
  • Humidity and Frost Free Control.
  • Transition Rates: 50°C/Min max (not on the entire range).
  • Suitable for testing soldered devices and devices in sockets.
  • System Enclosure (inch) : 16.5 (L) x 12.5 (W) x 8.5 (H)
  • Data Logger and special curve profile.
  • Environmentally Friendly Operation.
  • ESD-SAFE
  • 7" Full color touch screen menu driven panel display.
  • Ramp/Soak/Cycle profile programming, save & upload.
  • LAN interface. • XP/ Vista/Win 7 Operating system.
  • Ultra Quiet Operation 40dBA
  • Thermal head hose m/ (ft): 2.0 meter (6.5 ft)
  • MTBF 70,000hr
  • Electrical 100-120VAC, 60Hz..
    • Show All

    Specifications

    Stock Number4391
    ManufacturerMechanical Devices
    ModelFLEX-TC MDTC485-1
    Year2018
    Serial Number18000205-1
