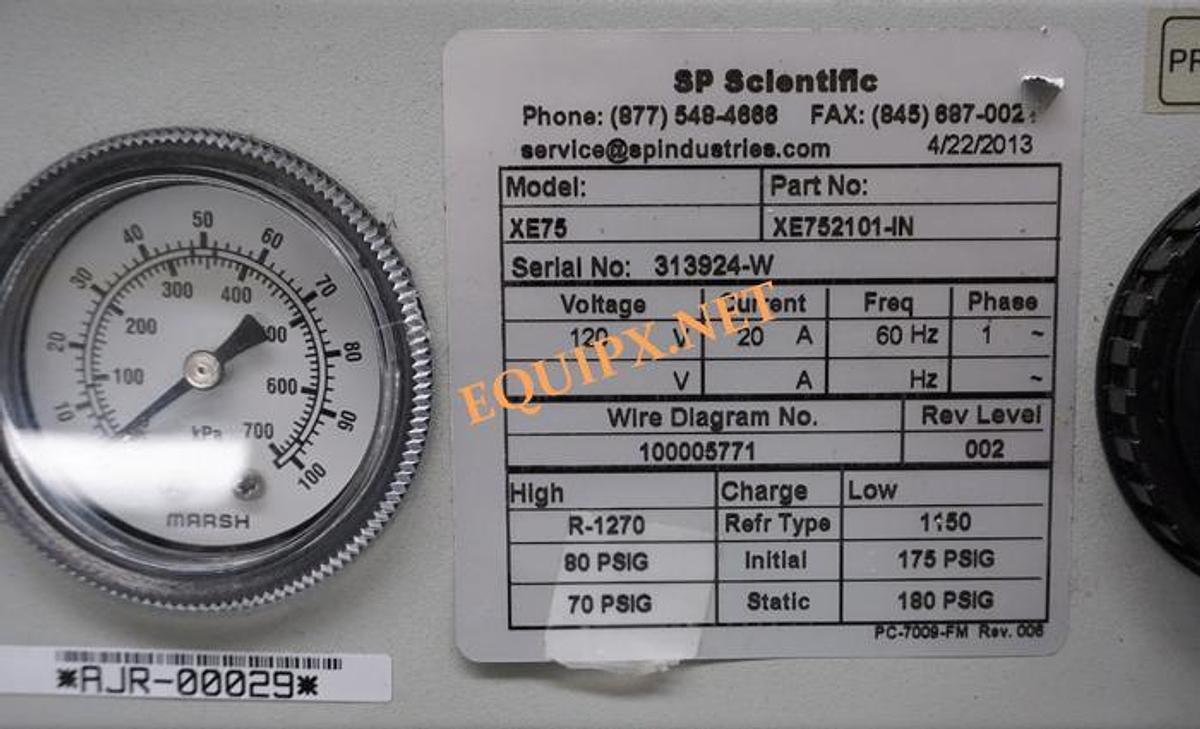

pn XE752101-IN

-75C to +225C temperature range

Small footprint – can be rack mounted if required

Does not require any expendable refrigerants

Can be controlled by internal or external thermocouple

Flow rates of 1 to 6 scfm

Effective and robust Dual Cool refrigeration system

Quiet operation for use in labs

120v 60hz

Save lab space with small footprint

Economical approach for less rigorous applications

Accommodates a variety of devices under test with 1 to 6 scfm flow rate

Meets mil spec requirements with -75C to +225C temperature range

Control process internally or from the device under test

RS-232 and GPIB allow use with automatic test equipment

Excellent stability, accuracy and repeatability

Optional test boxes expand performance capabilities

Accurate temperature control with the internal or external sensor selection

Specifications
Temperature Range	-75C to +225C (model and scfm dependent)
Stability	+/-0.5C at discharge nozzle
Sensors	type K thermocouples
Ramp Rate
Max Ramp Rate	+-55C to +125C < 10 seconds at 2 scfm +125 to -55C <20 seconds="" at="" 2="" scfm="" -25c="" to="" 100c="" 10="" 4="" br="">+100C to -25C at <20 seconds="" at="" 4="" scfm="" div="">200C to -65C in <10 seconds="" div="">
	-75C to +225C in <10 seconds="" div="">
Control	PID
Stability	+/- 0.5C
Repeatability	+/- 0.5C
Resolution	0.1C
Arm Reach	96" (243.84 cm)
Dimensions: (W x D x H)
Controller	9.3 x 7 x 8.2 “ (23.6 x 17.8 x 20.8 cm)
Refrigeration System	14.9 x 23.7 x 16.12” (37.9 x 60.19 x 40.9 cm)
Weight:
Controller	9.0 lbs (4.08 kg)
Refrigeration System	120.0 lbs (54.4 kg)

Stock Number	4392
Sort	0

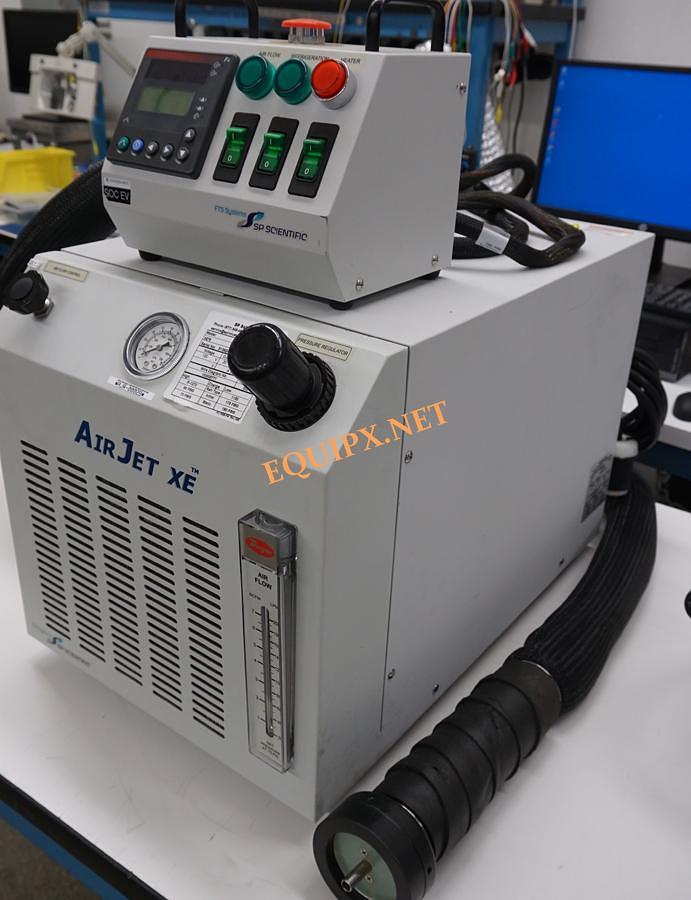

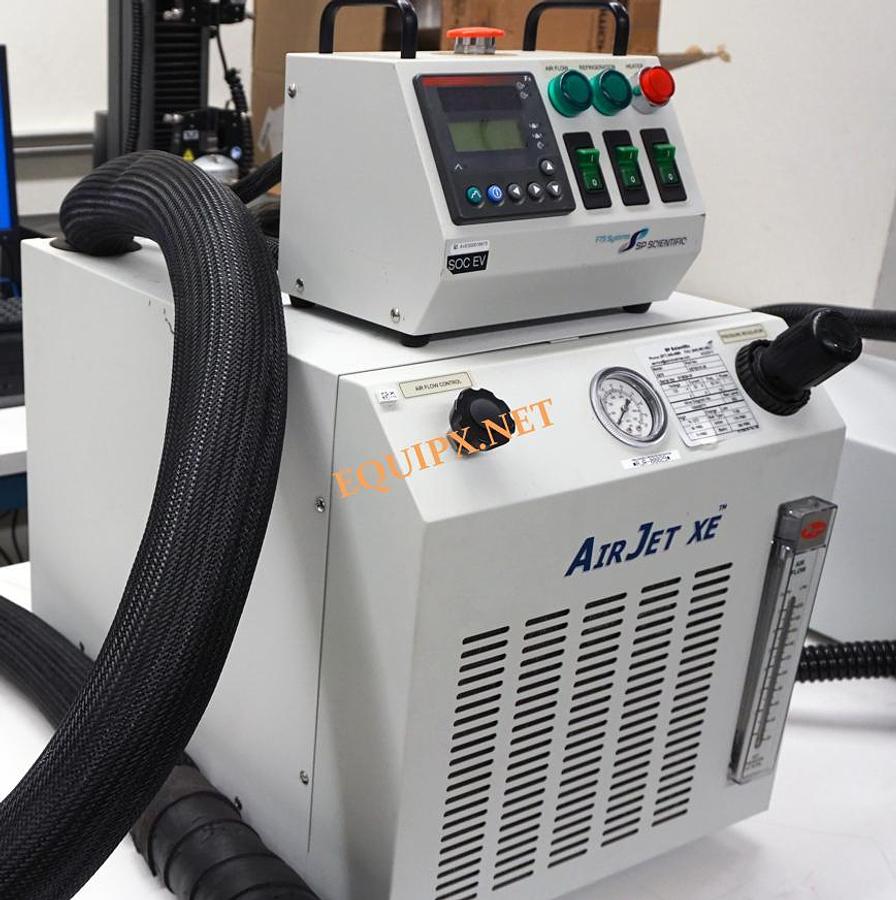

SP FTS Systems Airjet XE75
