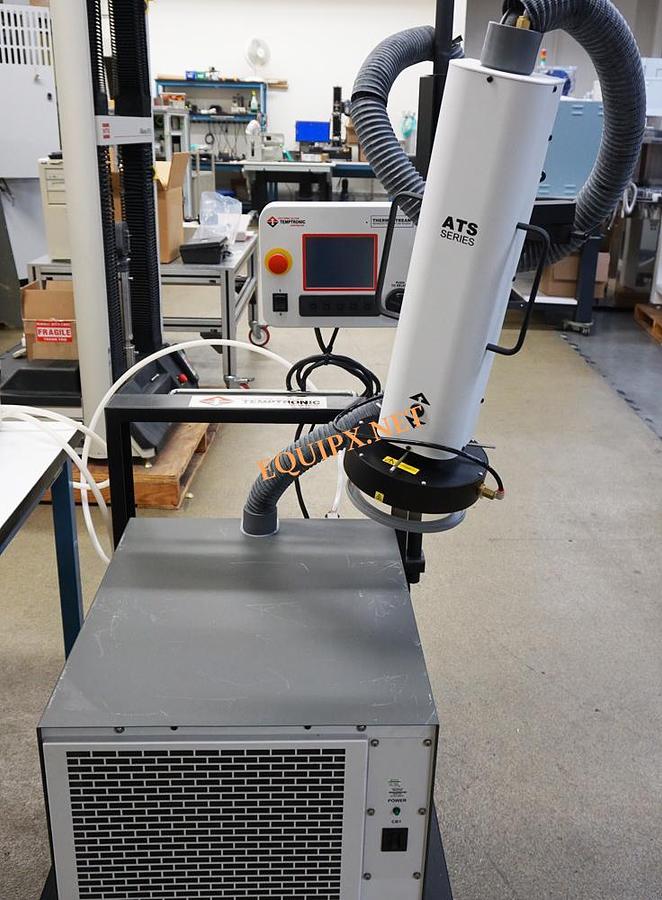

Intest thermal (Temptronics) ATS625 temperature forcing system with air dryer. Temperature range -60 to +225C

Intest thermal (Temptronics) ATS625 temperature forcing system with air dryer. Temperature range -60 to +225C

$16,500 (USD)

or
Call (408) 209-9278

Description

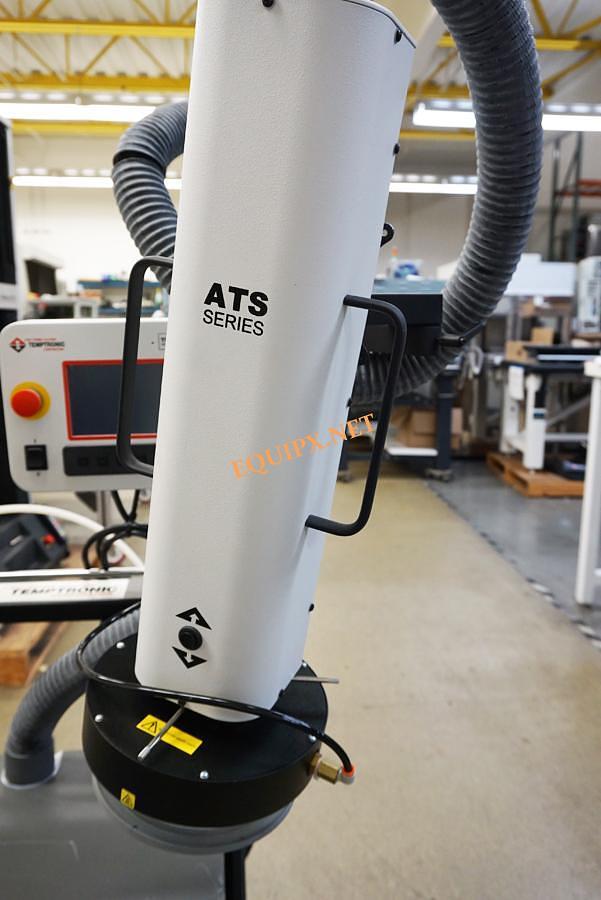

Temptronic ATS-625 Thermostream -60° to +225°C with AIR DRYER

Description

Designed for 60Hz operation only, this advanced Temperature Source for fast and precise thermal conditioning of components, parts, hybrids, modules, sub-assemblies, and printed circuit boards. Capable of ultra-low temperatures without the use of Liquid Nitrogen (LN2) or Liquid Carbon Dioxide (LCO2).

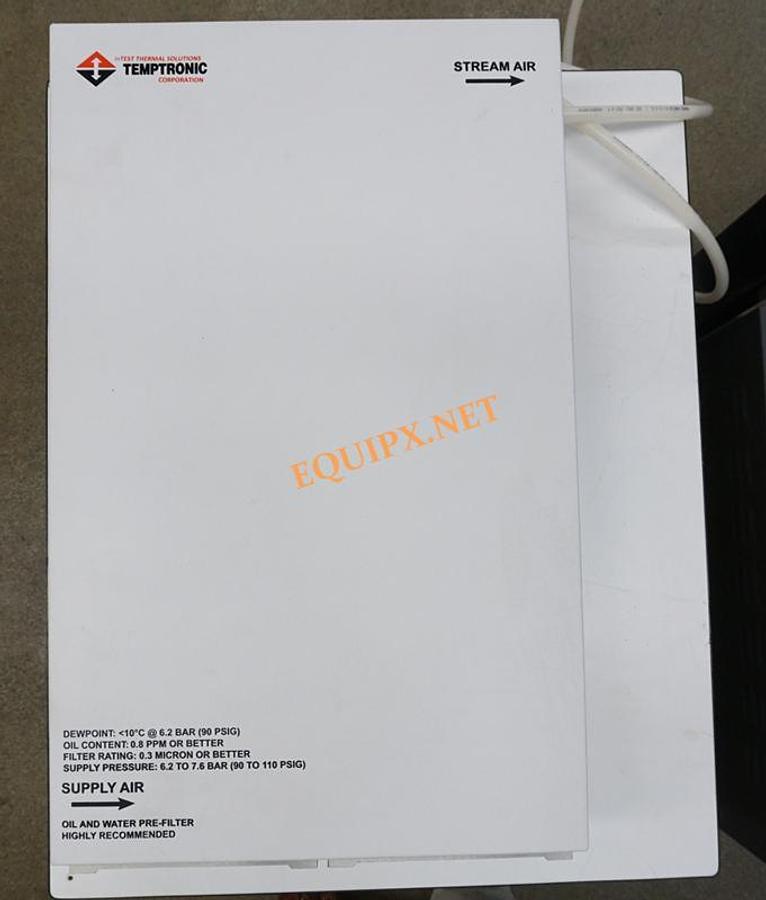

AIR DRYER provides 20SCFM air cooled to -70C dew point

Features

  • Transition Rates:
    -40°C to +125°C, < 12 seconds       +125°C to -40°C, < 40 seconds
  • System Airflow Output: 5 scfm ( 2.4.7 l/s) Fixed Flow
  • Temperature  Display & Resolution: ±1°C
  • Temperature Accuracy: ±1°C
  • Directly Control the device under test (DUT)
  • DUT Control Sensors: Type T or Type K Thermocouples
  • Remote interfaces: IEEE.488, RS232
  • 5.5"ID Thermal Cap provides a localized thermal test environment
       protects from moisture and condensation at the DUT site
  • Compact, portable system, easily integrates to  benchtop
  • CE Compliant and CFC-free
  • Model no. ATS-625-K-4
  • Manufacture date Dec 2013
  • Serial no. 13120520
  • Type SA187706
  • Power req. 115v 60hz
  • max operating pressure 110psi

    • Specifications

    Facility Requirements

    Power

    60Hz only, system does not operate at 50Hz

    115 ±10% VAC, 60Hz, 20amp

    220 ±10% VAC, 60Hz, 20amp

    Compressed Air

    Clean, Dry Air (CDA)

    Filtered to 5 micron particulate contamination.

    Oil Content: <0.1 ppm="" by="" weight="" filtered="" to="" 0="" 01="" micron="" oil="" contaminant="" p="">

    Dew point: <-70°C @ 6.2 BAR (90PSI)

    Air Supply Pressure

    5.5 to 7.6 BAR (90 to 110 PSIG)

    Total Air Flow Rate Required

    5.7 l/s (12 scfm)

    2.8 l/s (6 scfm) minimum

    Air Supply Temperature

    +20° to +25°C; +22°C nominal

    Operating Environment

    Operating Temperature

    +20° to +28°C; +23°C nominal

    Humidity

    0 to 60%; 45% nominal

    Service and Safety

    Refrigerants

    HCFC and CFC-free, non-toxic, non-flammable

    Serviceability

    Auto-diagnostics and field replaceable modules

    Over Temperature Protection

    +230°C (factory set): Operator can set high and low air temperature limits

    Weight and Dimensions

    Dimensions

    Controller

    26.7cm (10.5 inches) wide X 20.7cm (8.13 inches) high X 9.8cm (3.8 inches) deep

    Chiller

    51.3cm (20.2 inches) wide X 41.4cm (16.3 inches) high X 74.9cm (29.5 inches) deep

    Weight

    System

    112.0kg (247lbs.)

    Chiller

    74.5kg (157lbs)

    Chiller with Cart

    100.8kg (215lbs)

    Noise Level

    <60dBA



    See link below for full specifications
