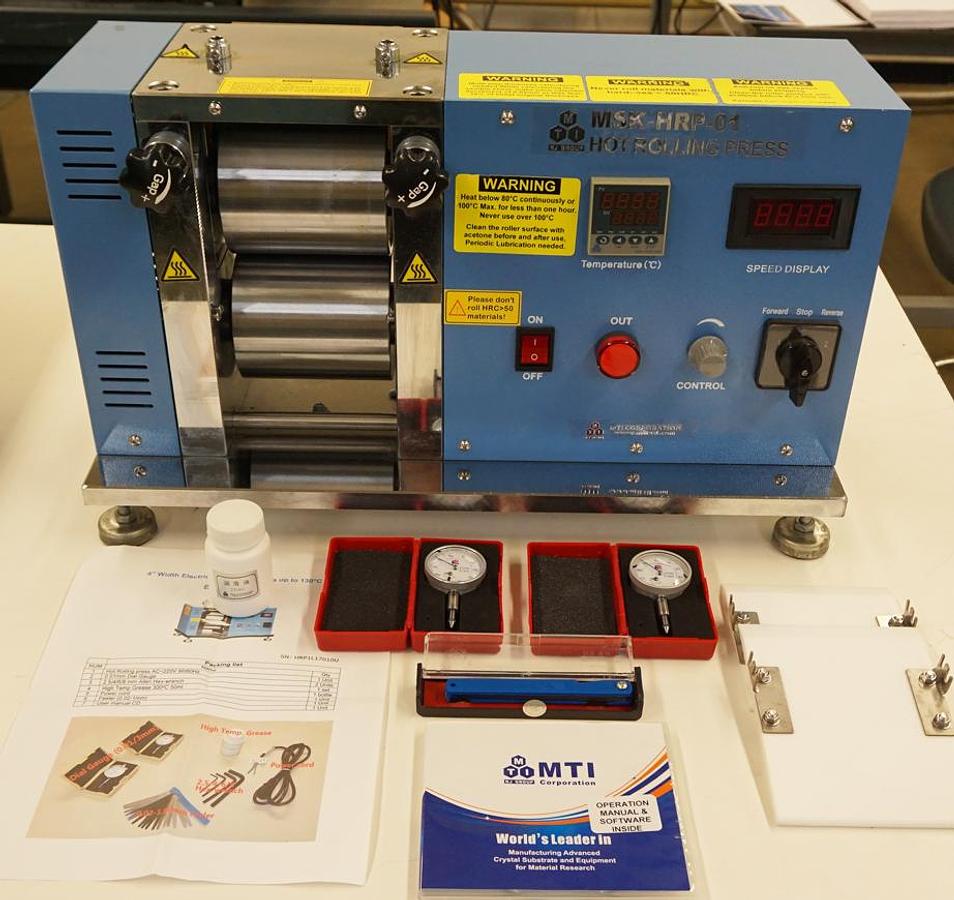

MTI MSK-HRP-01 variable speed hot rolling press for preparation of battery electrodes

Description

MSK-HRP-01 is a compact Hot Rolling Cylinder Press with max. the working temperature of 100°C, which is designed for preparing battery electrodes for both inside or outside a glove box. The high torque DC motor is Ar gas compatible. It serves well in the application such as increasing the active material density of the electrode in Li-ion batteries research after coating. It has a pair of 100mm width steel rollers with a maximum heating capacity of 100°C.

Update Note: Since 11/25/2015, MSK-HRP-01 is equipped with a 24V DC motor for safe operation in Ar gas environment.

This instrument has been used to prepare flexible solid-state electrolytes for battery research

Manufacture date 05/2017

Power req: 230V

SPECIFICATIONS:

Effective Cylinder Width	96mm
Roller Size	96mm Dia. x 100mm W
Rolling Gap	0~1.2 mm adjustable
Dial Gauge Accuracy	0.01mm
Minimum Thickness	Depending on the electrode's material and thickness, typically: A 0.16mm thick electrode coated on copper can be pressed into a minimum thickness of 0.1 mm A 0.06mm thick electrode coated on copper can be pressed into a minimum thickness of 0.04 mm A 0.33mm thick silver/gold can be pressed into a minimum thickness of 0.03 mm
Heating Temperature	100°C maximum for less than one hour 80°C continuously Recommended Heating Rate: 1.3°C/minute Power of Heating Element: 500W Temperature Control: Precision temperature controller with +/-1°C Accuracy
Rate Voltage	AC 208 - 240V Single phase, 50/60Hz You may order a transformer 1000W to use it at 110V
Motor	High torque 24VDC motor with reducing gear (1:75) 0.8A Rated power 40W Speed Indicator Display: 0~40 Actual rolling speed: 0~26 mm/sec (Actual Speed = display value * 0.65) Digital controlled with constant output power
Power Consumption	600W max.
Surface Hardness of Rollers	HRC60-62 Never roll materials with hardness > 50HRC (bench top rolling press is not suitable for calendering thick metals. For applications with such needs, please consult with MTI engineers.)
Roll to Roll System (Not Included)	MSK-HRP-04 R2R system can be integrated with the calendering machine at extra cost to enable the automatic film unwinding -> winding after calendering. Please click underline to view product details.
Dimensions	520mm(L) x 280mm(W) x 370mm(H) Shipping Dimensions: 40" x 30" x 25" (L x W x H)
Shipping Dimensions	40" x 25" x 25"
Shipping Weight	190 lbs
Application Notes	Important announcement (please read this before place the order) The MSK-HRP-01 roller is specially designed for battery R&D in terms of its advantages as affordable, compact and precise. Please strictly follow the instructions to operate Must use acetone to clean rollers' surface after each use Never rolling material with hardness > 50HRC If the machine will be idle for a long period of time, please apply anti-rust lubricant on the rollers The minimum thickness of the rolled sheet should depend on the physical property of the material. Here are some results from our test:
