Agilent IDP15 scroll pump- Refurbished with new tip seals 9.1CFM ultimate vacuum <15mtorr
Agilent IDP15 scroll pump- Refurbished with new tip seals 9.1CFM ultimate vacuum <15mtorr
$4,950 (USD)
or
Call (408) 209-9278
Description

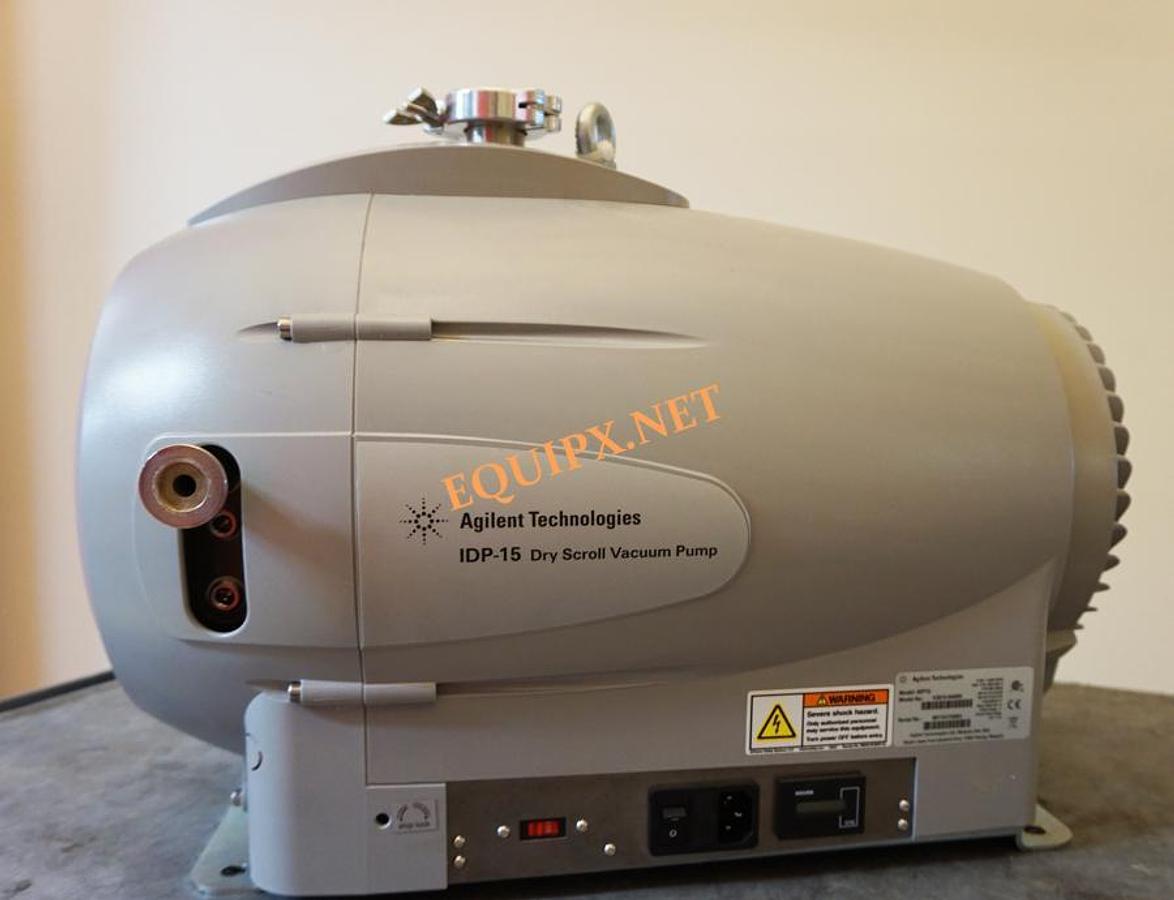

The Agilent IDP-15 Scroll Pump is a high performance dry primary vacuum pump, providing rapid pump-down.
With a single-sided scroll design, it offers fast, easy yearly maintenance and low cost of ownership.
It is hermetic, with the motor and all bearings completely isolated from the vacuum path and protected from process gases for extended life.
The IDP-15 is exceptionally quiet (<50db) and vibration-free. Air Cooled. Provided with Inlet Isolation Valve
Refurbished with new tip seals. Guaranteed and tested to <15 microns="" ultimate="" vacuum="" br="">
Peak pumping speed: 60 Hz: 256 L/m, 15.4 m3 /hr 50 Hz: 214 L/m, 12.8 m3 /hr
Media: Not suitable for use with corrosive, explosive or particulate-forming gases
Ultimate pressure: 10 x 10−3 Torr (13.3 x 10−3 mbar)
Maximum inlet pressure: 1.0 atmosphere (0 psig)
Maximum outlet pressure: 6.5 psig Inlet connection:
NW25 Exhaust connection:
NW16 Gas ballast: 1/4” NPTF (two positions)
sn MY15170003
With a single-sided scroll design, it offers fast, easy yearly maintenance and low cost of ownership.
It is hermetic, with the motor and all bearings completely isolated from the vacuum path and protected from process gases for extended life.
The IDP-15 is exceptionally quiet (<50db) and vibration-free. Air Cooled. Provided with Inlet Isolation Valve
Refurbished with new tip seals. Guaranteed and tested to <15 microns="" ultimate="" vacuum="" br="">
Peak pumping speed: 60 Hz: 256 L/m, 15.4 m3 /hr 50 Hz: 214 L/m, 12.8 m3 /hr
Media: Not suitable for use with corrosive, explosive or particulate-forming gases
Ultimate pressure: 10 x 10−3 Torr (13.3 x 10−3 mbar)
Maximum inlet pressure: 1.0 atmosphere (0 psig)
Maximum outlet pressure: 6.5 psig Inlet connection:
NW25 Exhaust connection:
NW16 Gas ballast: 1/4” NPTF (two positions)
sn MY15170003
Specifications
| Stock Number | 4444 |
| Sort | 0 |
