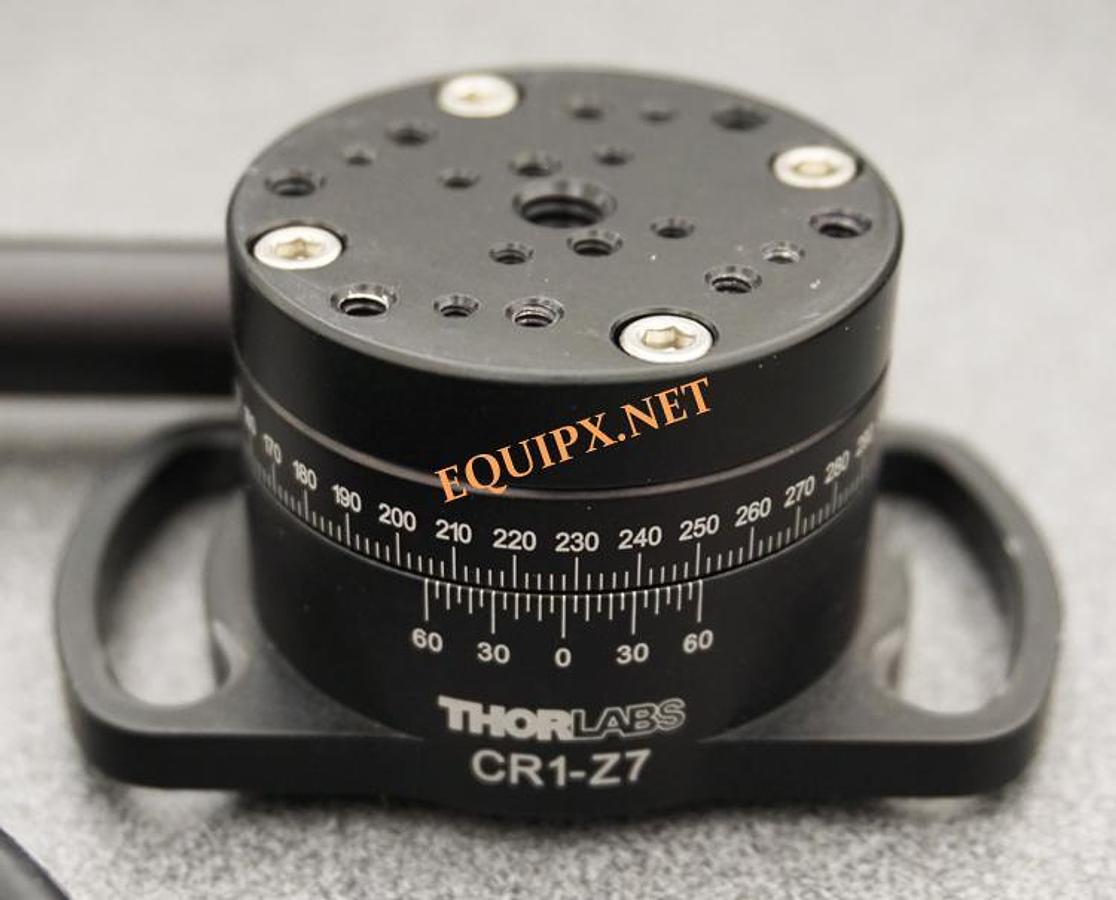

Thorlabs CR1-Z7 motorized rotation stage
Thorlabs CR1-Z7 motorized rotation stage
$550 (USD)
or
Call (408) 209-9278
Description
The CR1-Z7 motorized rotation stage offers high-precision, continuous motion in a sturdy, compact package.
The backlashfree worm gear design, coupled with a high-resolution optical encoder, provides the rotational precision required in optical laboratories.
The high torque 12VDC Servo Motor supplies ample power for rotating vertical loads of up to 25lbs. 2.76" (70.1mm) 4.21" (107mm) 1.00" (25.4mm) Ø1.70" (Ø43.2mm)
■ Continuous 360° Rotation
■ Low Backlash Design
■ High Torque DC-Servo Motor With Gear Head & Optical Encoder
■ High Count Optical Encoder (12,288 pulses/rev)
■ Angle Readout of 2° Increments Plus a Vernier Scale Provides 5arcmin Resolution
■ Application Tested to 25lbs Vertical Load
The backlashfree worm gear design, coupled with a high-resolution optical encoder, provides the rotational precision required in optical laboratories.
The high torque 12VDC Servo Motor supplies ample power for rotating vertical loads of up to 25lbs. 2.76" (70.1mm) 4.21" (107mm) 1.00" (25.4mm) Ø1.70" (Ø43.2mm)
■ Continuous 360° Rotation
■ Low Backlash Design
■ High Torque DC-Servo Motor With Gear Head & Optical Encoder
■ High Count Optical Encoder (12,288 pulses/rev)
■ Angle Readout of 2° Increments Plus a Vernier Scale Provides 5arcmin Resolution
■ Application Tested to 25lbs Vertical Load
Specifications
| Stock Number | 4441 |
| Sort | 0 |
