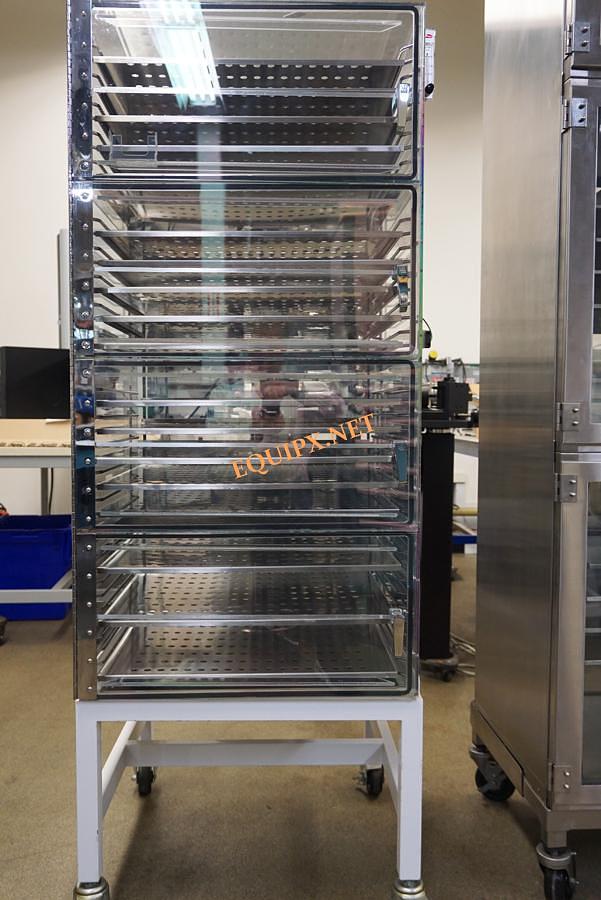

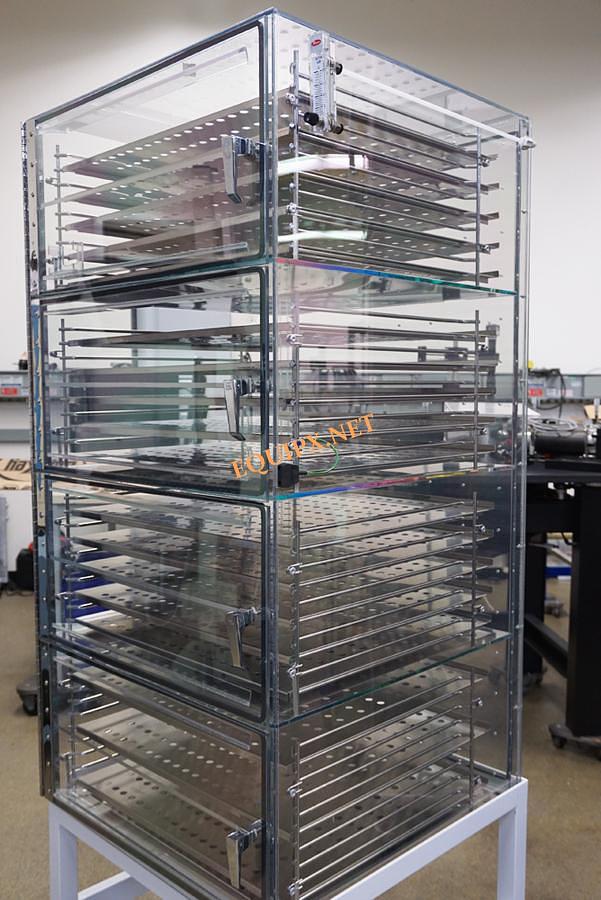

TDI International Dessicator with Plenum and static dissipative acrylic

Model 2444SD

Overall dimensions 24"x24"x48"

Compartments each 22"w x 22"d x 11"h

Static dissipative acrylic with grounding

Rear Plenum, flowmeter, bleeder valve

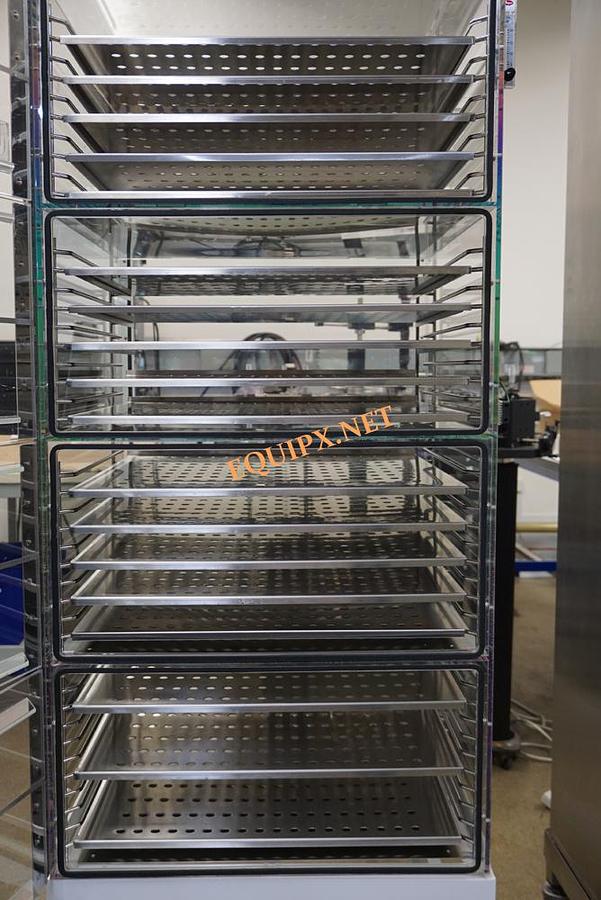

5 perforated shelves per compartment

Cart with casters

Static Dissipative Acrylic Desiccators

All ESD desiccator cabinets include our unique Ultra Nitro-Flow design with notched compartment walls and floors for a uniform humidity control between all compartments.    The plenum chamber; a pressurized housing at the back of the desiccator, contains nitrogen gas or clean dry air CDA at a positive pressure.  The inner plenum chamber wall is perforated with exit ports into each compartment to allow uniform gas flow throughout.  The back wall of the plenum chamber is removable for easy access during maintenance.

Desiccators include tightly sealed doors and compartments with recessed closed cell neoprene gasket in order to minimize nitrogen consumption for relative humidity control.   Desiccator features include a continuous stainless steel door hinge for maximum door support and spring-loaded latches for air-tight door seals.

Static Dissipative Acrylic Desiccator Features:

1/4″ ESD Safe Static Dissipative Acrylic (Non-Out-Gassing)

Prevents build-up of static charge and accumulation of harmful contamination.

Electrostatic decay in less than 0.05 seconds per federal test standard 101C, method 4046.1

Surface resistivity 106-108 Ohms / sq.

Stainless steel plates not only provide full conductive grounding, but also protect acrylic from surface abrasion.

Grounding wire connects from hinge to hard ground. All racks, shelves, plates, latches, and hinges connect to this common ground.

Static dissipative removable back plenum wall.

Options:

Plenum Chamber, Flowmeter and Bleeder Valve

Nitro-Save® or Hygrometer

Heavy-Duty Stainless Steel Racks & Shelves

Stands with Leg Levelers or Lockable Casters
