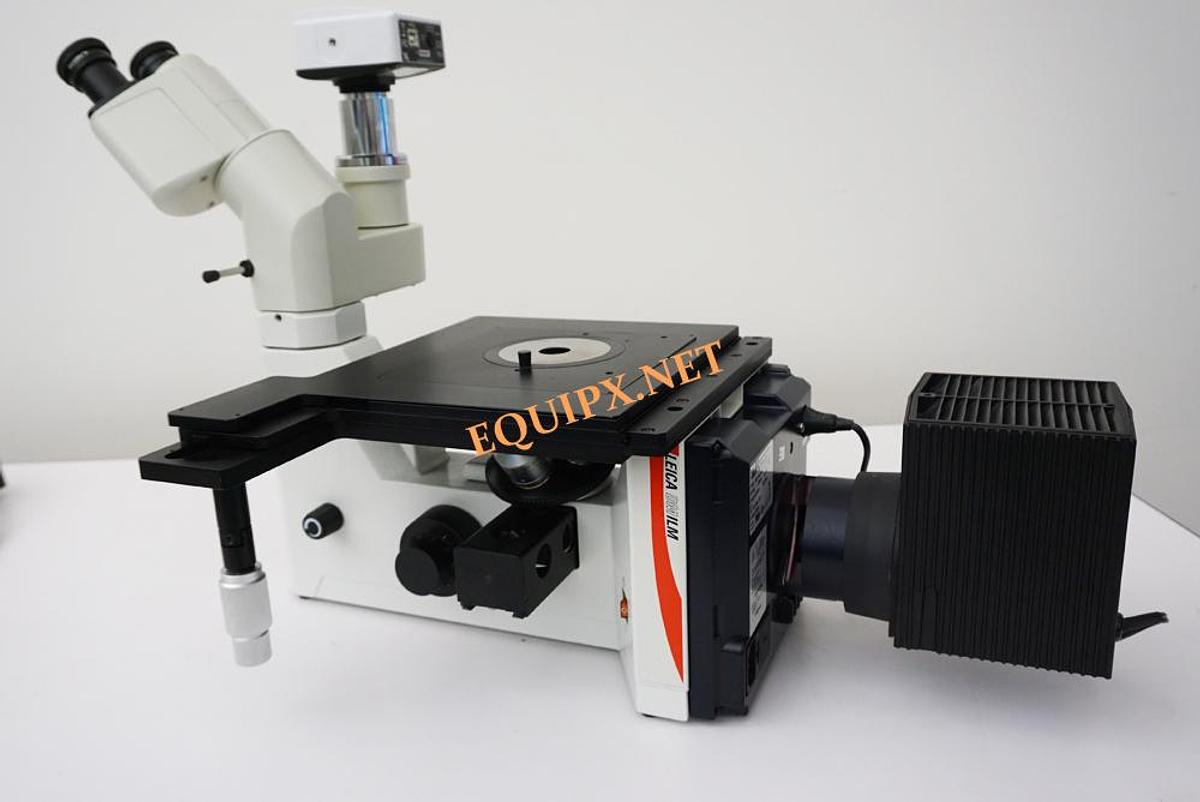

Leica DM-ILM inverted metallurgical microscope

Leica DM-ILM inverted metallurgical microscope

$9,500 (USD)

or
Call (408) 209-9278

Description

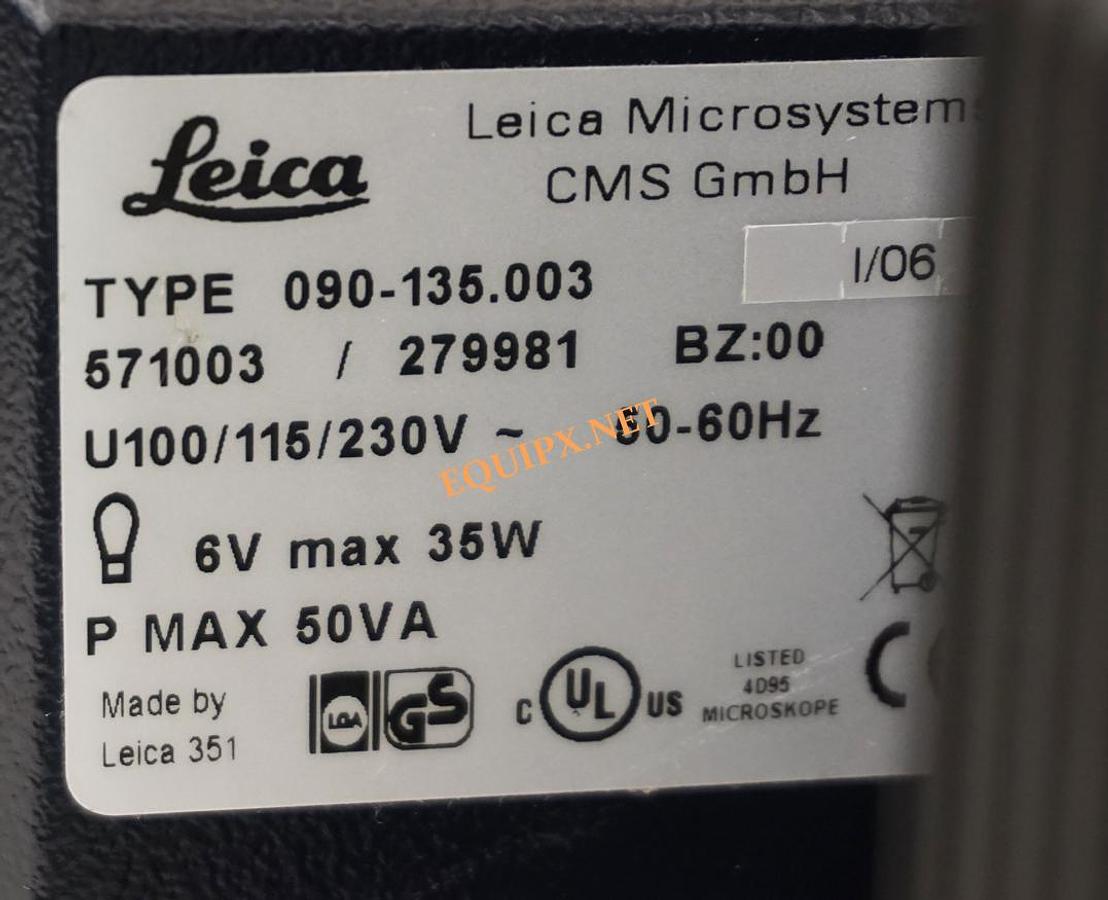

6v 35w halogen lamp incident illumination

10x/20 eyepieces

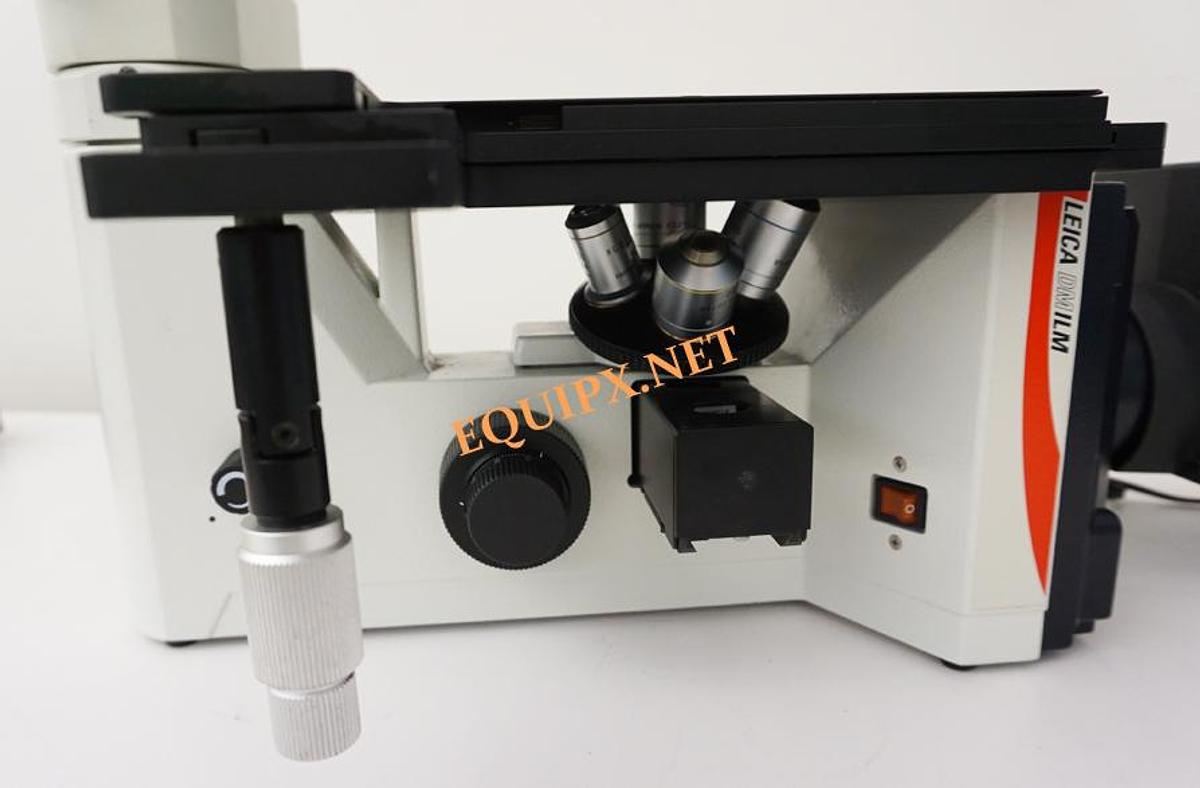

4 position manual nosepiece

Objectives:

N Plan 2.5x/0.07   11.2mm WD
HC PL Fluotar 10x/0.30     11mm WD
HC PL Fluotar 50x/0.80     0.5mm WD
HCX PL Fluotar 100x/0.90  0.3mm WD

3 position filter block slider with BF and POL cubes for brightfield and polarized light

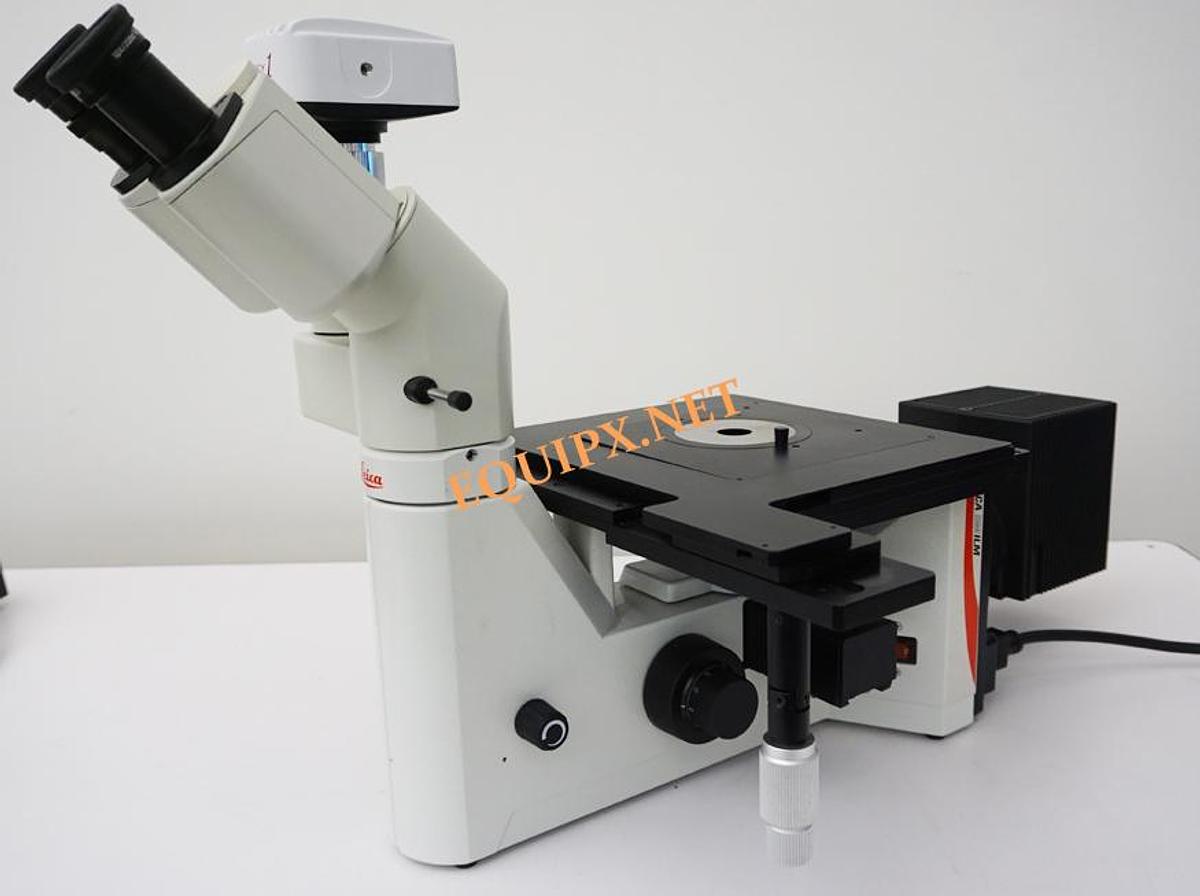

trinouclar viewing head with C mount camera adaptor


Optional: INFINITY1-2CB — 2.0 Megapixel CMOS Color USB 2.0 Camera add $1650.

  • Progressive scan 1/2" SOI268 2.0 megapixel CMOS color sensor
  • High-speed USB 2.0 interface for ease of installation on any computer
  • Full color sub-windowing and subsampling for rapid focus and scanning of samples
  • Crisp color quality for the most demanding brightfield and darkfield microscopy applications including clinical pathology and cytology, life science and geology
  • 15 fps at full 1600x1200 resolution, higher at reduced resolutions
  • Select 8 & 10-bit pixel data modes




    • Show All

    Specifications

    Stock Number4552
