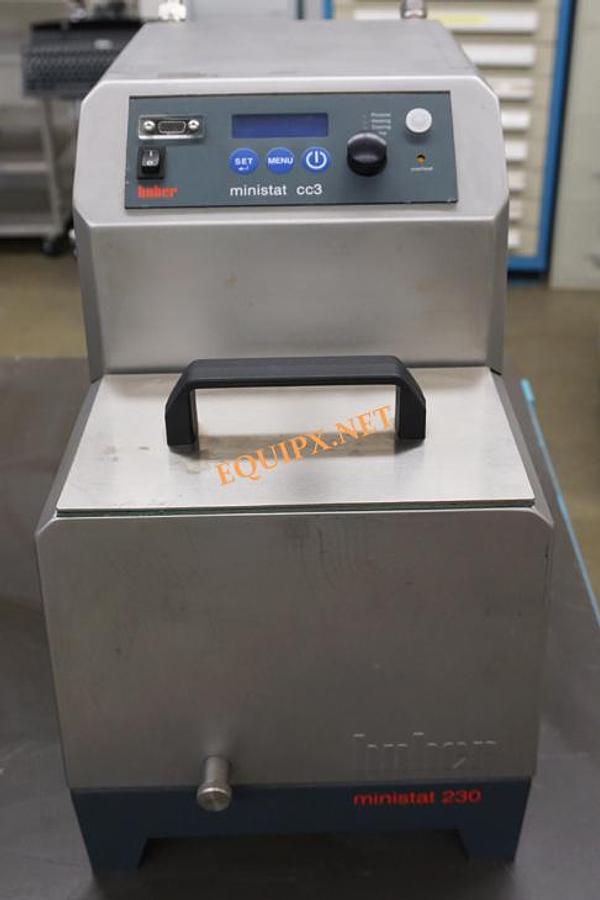

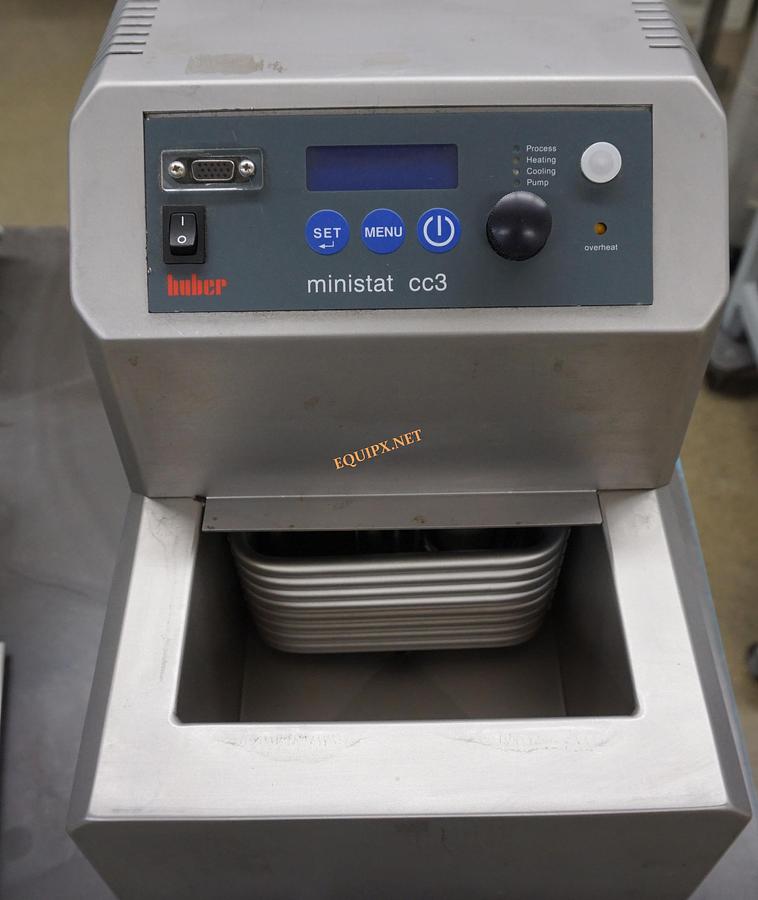

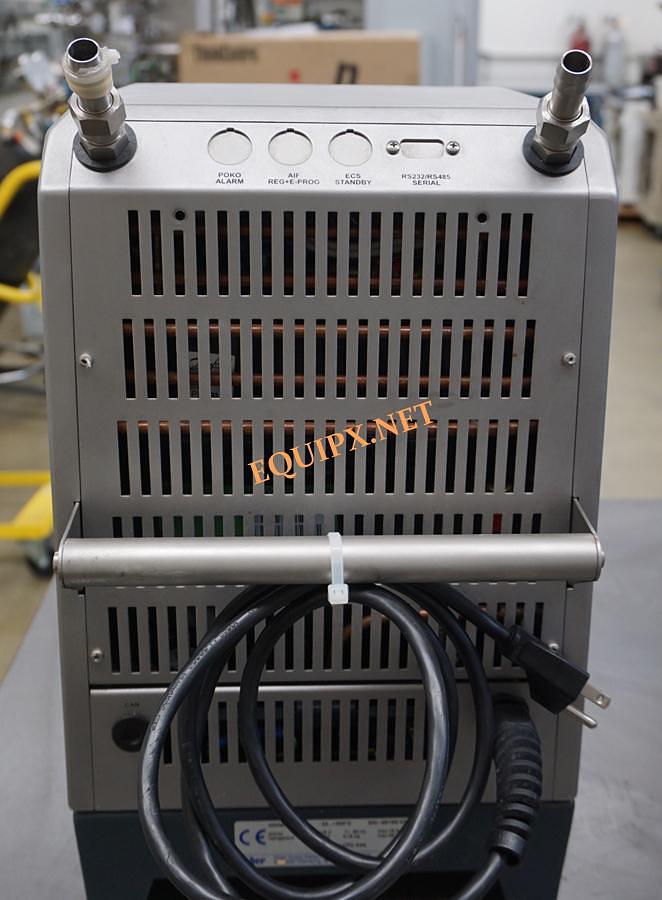

Huber Ministat CC3 230 Refrigerated recirculating bath

Description

Operating temperature range -33...200 °C
Temperature stability at -10°C 0,02 K
Temperature adjustment digital
Temperature indication digital
Internal temperature sensor Pt100
Sensor external connection Pt100
Analog Interface In/Out 4-20mA alternative 1-5V
Safety classification FL
Heating power 2 kW
Cooling power
at 100°C 0,4 kW
at 20°C 0,4 kW
at 0°C 0,35 kW
at -10°C 0,33 kW
at -20°C 0,25 kW
at -30°C 0,1 kW
Refrigeration machine air-cooled, CFC-free
Refrigerant R507
Refrigerant quantity 0,22 kg
Pressure pump
max. delivery (pressure) 27 l/min
Delivery pressure (head) 0.7 bar
Suction pump yes
max. delivery (suction) 20 l/min
Delivery suction pressure (head) 0.4 bar
Pump connection M16x1
Pump connection for hose NW8/12
max. permissible kin. viscosity 50 mm²/s
Bath volume 3,2 l
Bath capacity with displacement rack 1,7 l
Width bath opening WxD / bath depth 170 x 87 / 135 mm
Overall dimensions WxDxH 255x450x476 mm
Net weight 35 kg
Power supply requirement 230V 1~ 50/60Hz
max. Stromaufnahme 12,5 A
Fuse (1 phase) 16 A

Specifications
