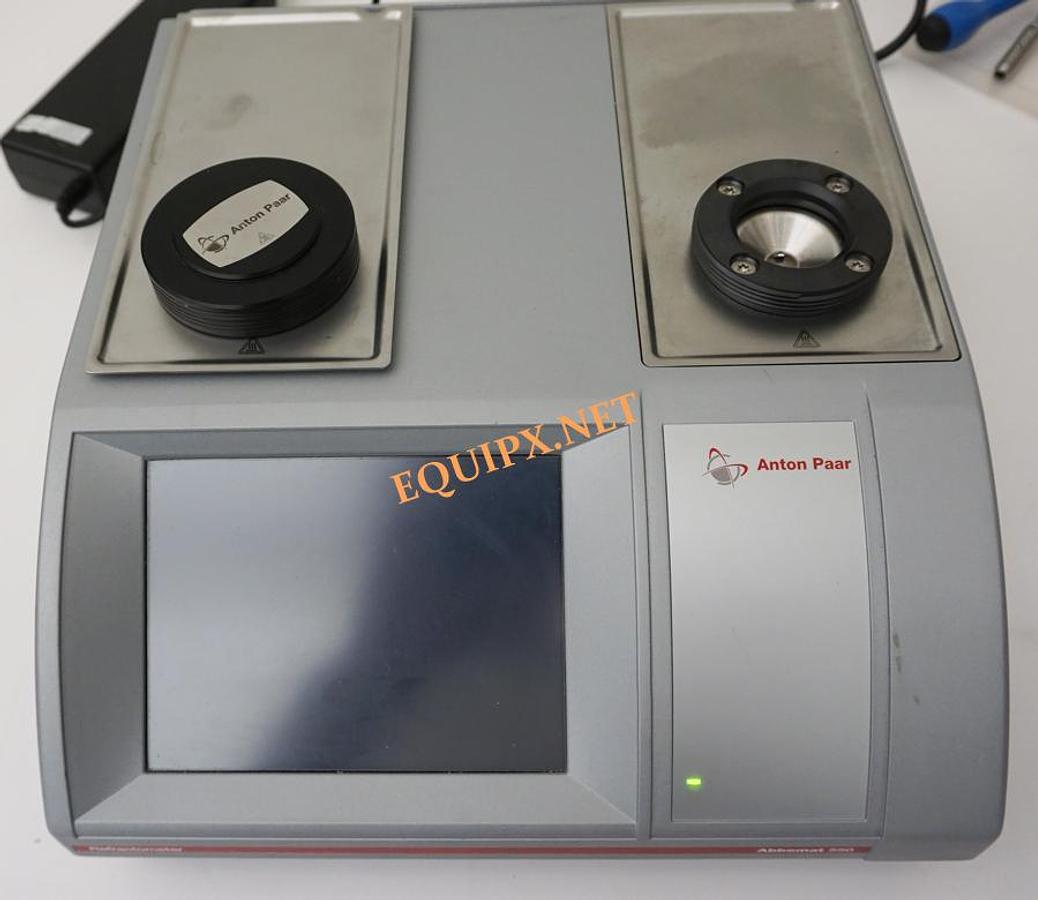

Anton Parr Abbemat 550 refractometer

Anton Parr Abbemat 550 refractometer

$8,450 (USD)

or
Call (408) 209-9278

Description

Abbemat 550 Performance Plus Line Refractometer

Abbemat digital refractometers allow fast and non-destructive refractive index measurements. They are factory calibrated with official standards from the Physikalisch-Technische Bundesanstalt (PTB, National Metrology Institute of Germany). Refractive index results from Abbemat 550 are accurate to ± 0.00002 nD. The Abbemat 550 refractometers are set up conveniently using intuitive touchscreen navigation.

Easy operation

  • A reminder for test measurements or adjustments can be set at user-defined intervals
  • Automatic warning if the sample volume is not large enough for a valid measurement
  • No sample preparation, readings within seconds
  • A quick wipe cleans the prism after each measurement

    • Compliance and traceability

  • Full compliance with 21 CFR Part 11
  • Compliant with international standards such as ASTM, ICUMSA, OIML, AOAC, DIN/ISO, FDA, ISI, JIS and pharmacopoeias
  • History and current status of results via the result memory
  • Adjustment and check history, check intervals and validity checks for each measurement

    • Range nD: 1.26 to 1.72
    Resolution nD: ± 0.00001
    Accuracy nD*: ± 0.00002
    Light source: LED light source, average lifetime > 100,000 h
    Temperature Range: 4 to 85 °C
    Wavelength: 589 nm
    Minimum sample amount: approx. 0.2 mL
    Measuring time: 5 seconds per sample (after temp. equilibration)
    Scales/methods: Sugar scales, syrup and honey scales, alcohol scales, urine scales, serum scales, more than 70 scales available
    Interfaces: RS-232, CAN-bus, 3 USB ports, Ethernet and VGA connector
    * valid at refractometric standard conditions (T = 20 °C, λ = 589 nm, ambient temperature = 23 °C)
