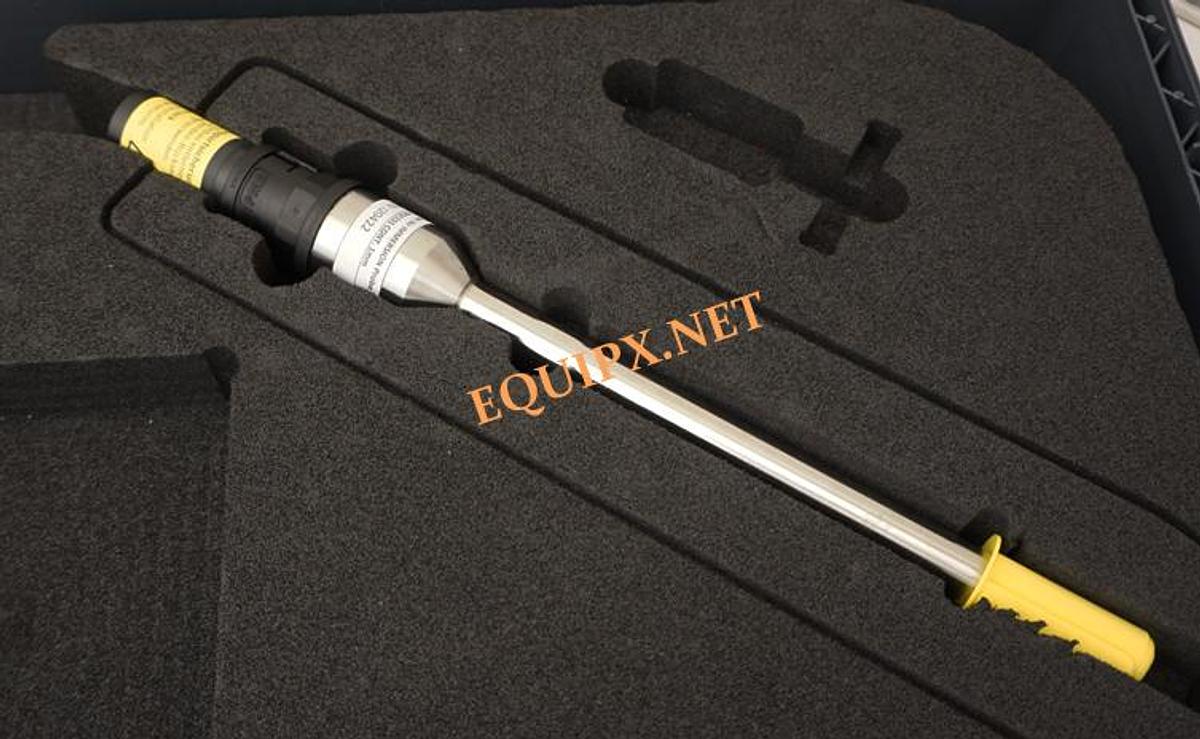

Bruker IN237P1 immersion probe for Matrix F NIR spectrometer

IN237P1 Imersion probe for process control

Type of measurement: transmission (NIR)

Specifications:
Optical pathlength: 1mm±0.01mm
Material (surfaces in contact with medium):
- Quartz glass
- Kalrez® 7075 (please check the compatibility between the sealing material and chemicals of
your process)
- Stainless steel 1.4571 (316Ti)

Probe dimensions:
- Outer diameter: 20mm
- Barrel length: 250mm
- Min. immersion depth: 30mm + optical pathlength
- Max. immersion depth: 240mm
Temperature range: 5°C to 260°C
Max. temperature at the end of the SMA connectors: 110°C
Pressure range: -1bar to 35bar

Fiber optic cable connectors: 2 SMA type 905

Included in delivery:
- Connector for protection conduit

Recommended accessories:
- 2x Fiber optical cables IN220 or IN229
- Protective S180

3 probes available
