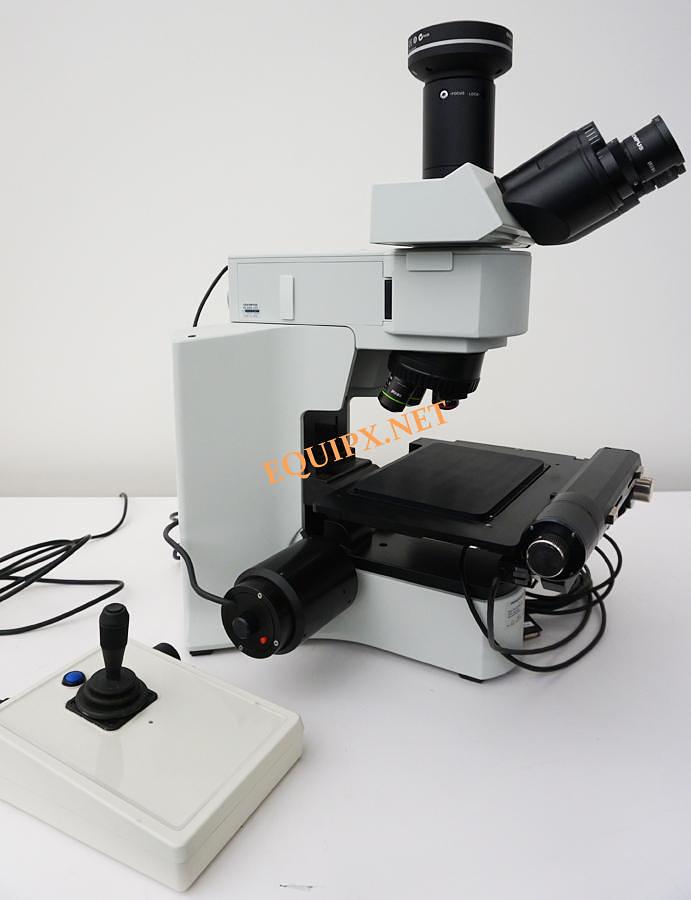

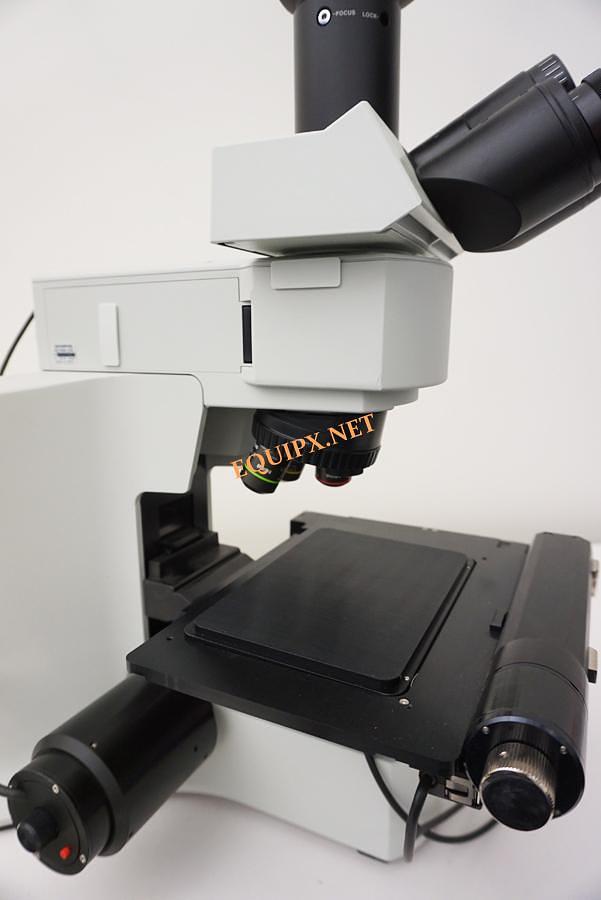

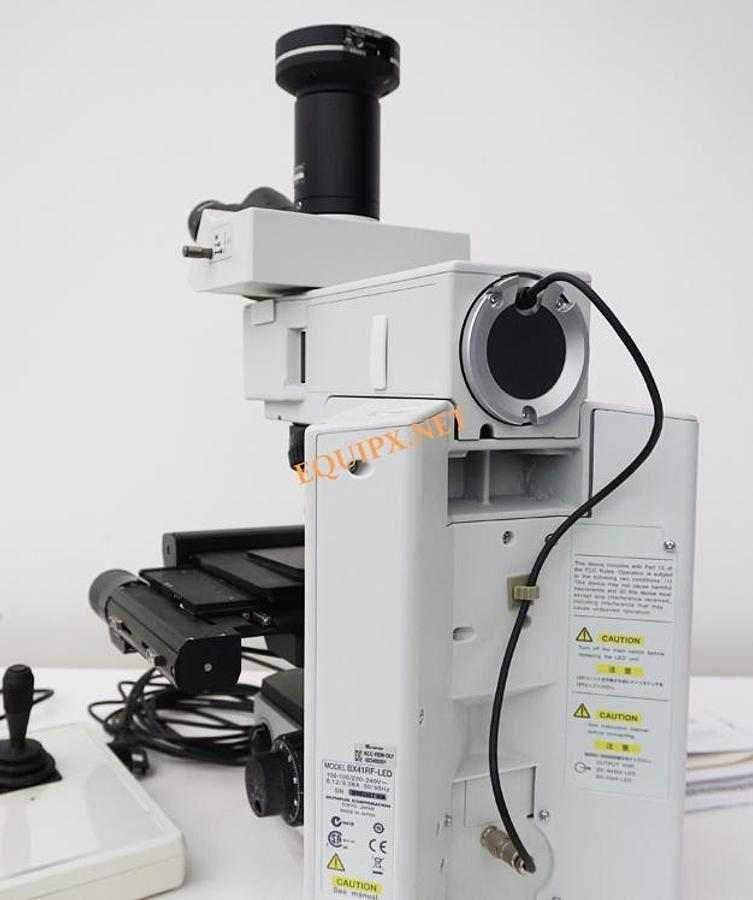

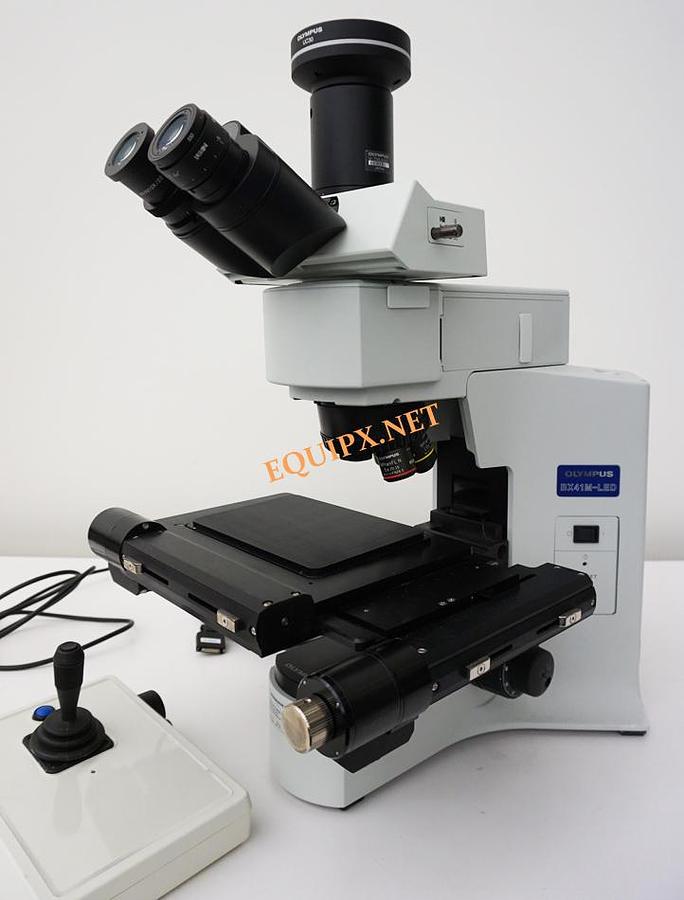

Olympus BX41M-LED metallurgical microscope with Olympus UC-30 3.2mp color camera

BX41RF-LED base stand

Trinocular viewing head with WHN 10x eyepieces

6x6 manual xy stage (not shown)

Optional: Ludl 6x6 motorized stage with joystick and controller and motorized focus (shown in photo) please inquire for price

Brightfield objectives:
5x M Plan FL N
10x M Plan FL N
20x LM Plan FL N

LED illuminator

Optional software available:

Olympus Inspector application software version 5.2 for Windows XP, Vista, Windows 7

Olympus analySIS getIT! Base-level Acquisition software for Windows XP, Vista, Windows 7

 Olympus UC-30 camera

The UC30 offers an excellent 3.2 megapixel resolution and fast frame rates with the added benefit of 2x and 3x color binning. Ideal for routine image acquisition in material science applications where quick and easy image documentation is paramount.

High resolution

The color CCD chip ensures users can see more and, as a result, measurements can be carried out with great precision and sensitivity.

The camera also offers three frame rates:

The Search mode uses 3x pixel binning to offer nearly 35 images per second at 688 x 514 pixels. This makes finding suitable areas of a sample very easy.

The Focus mode uses 2x pixel binning to offer 14 images per second at 1,040 x 772 pixels. This ensures that focusing can be carried out quickly and accurately.

The Full-resolution mode offers 5 images per second at 3.2-megapixel resolution.
