Cincinnati Sub Zero VTS-3-6-6-SC/AC Vertical Thermal Shock chamber- 3 cu ft capacity Air Cooled (2013)
Cincinnati Sub Zero VTS-3-6-6-SC/AC Vertical Thermal Shock chamber- 3 cu ft capacity Air Cooled (2013)
$44,500 (USD)
or
Call (408) 209-9278
Description
REFURBISHED NOV 2024 WITH NEW TOUCH SCREEN INTERFACE
internal chamber size 20w x 16d x 16h
Air cooled
temp range -75C to 210C
touch screen controller
max load 66 lbs)
Exterior dimensions 40w x 79d x 98h
sn 12-VT15571

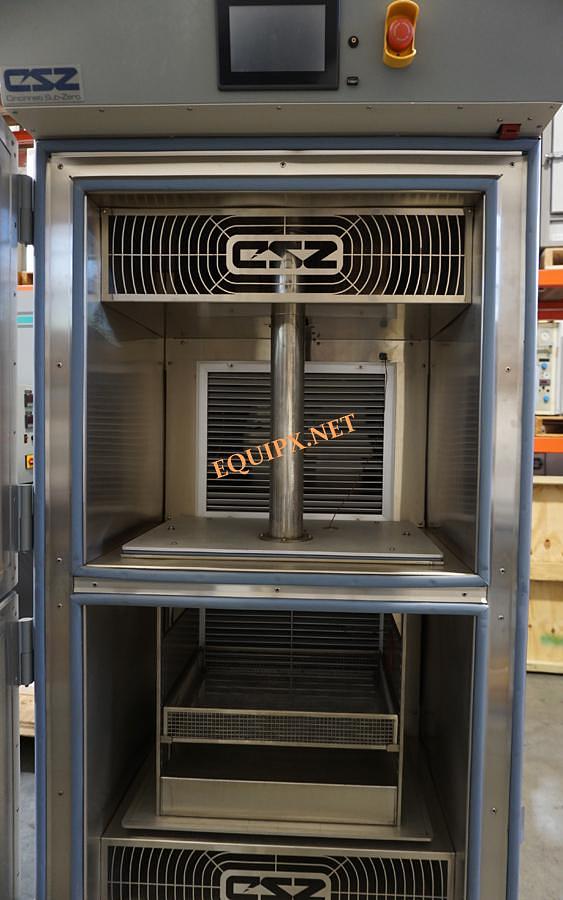

The EZT-570S controller provides flexibility and a full range of user-friendly features that combine to simplify programming along with built-in safeties to protect your chamber and product under test. The product transfer carriage provides smooth, steady transfer of your product between the hot/cold chambers. Door safey interlocks/limit switches to prevent door from being opened during operation.
Emergency stop button shuts down power to chamber.
Traveling cable port for routing cables and wires from the product under test to an external device.
Hinged panel doors provide easy access to all components for ease of servicing.
Compact size and casters provide mobility with leveling legs to secure and level your chamber
Rapid airflow through the workspace to facilitate fast part temperature change rates.
Environmentally safe, zero ozone depletion potential refrigerants are used to protect the environment.
Dry air purge for prolonged temperature cycles
Dual purpose cold chamber may be used for for temperature cycling and defrost
Power requirements 208v, 3 phase, 60hz
Full load current 101 amps, service 125amps
Manufacture date 2013
internal chamber size 20w x 16d x 16h
Air cooled
temp range -75C to 210C
touch screen controller
max load 66 lbs)
Exterior dimensions 40w x 79d x 98h
sn 12-VT15571
The EZT-570S controller provides flexibility and a full range of user-friendly features that combine to simplify programming along with built-in safeties to protect your chamber and product under test. The product transfer carriage provides smooth, steady transfer of your product between the hot/cold chambers. Door safey interlocks/limit switches to prevent door from being opened during operation.
Emergency stop button shuts down power to chamber.
Traveling cable port for routing cables and wires from the product under test to an external device.
Hinged panel doors provide easy access to all components for ease of servicing.
Compact size and casters provide mobility with leveling legs to secure and level your chamber
Rapid airflow through the workspace to facilitate fast part temperature change rates.
Environmentally safe, zero ozone depletion potential refrigerants are used to protect the environment.
Dry air purge for prolonged temperature cycles
Dual purpose cold chamber may be used for for temperature cycling and defrost
Power requirements 208v, 3 phase, 60hz
Full load current 101 amps, service 125amps
Manufacture date 2013
Specifications
| Stock Number | 4715 |
| Sort | 0 |
