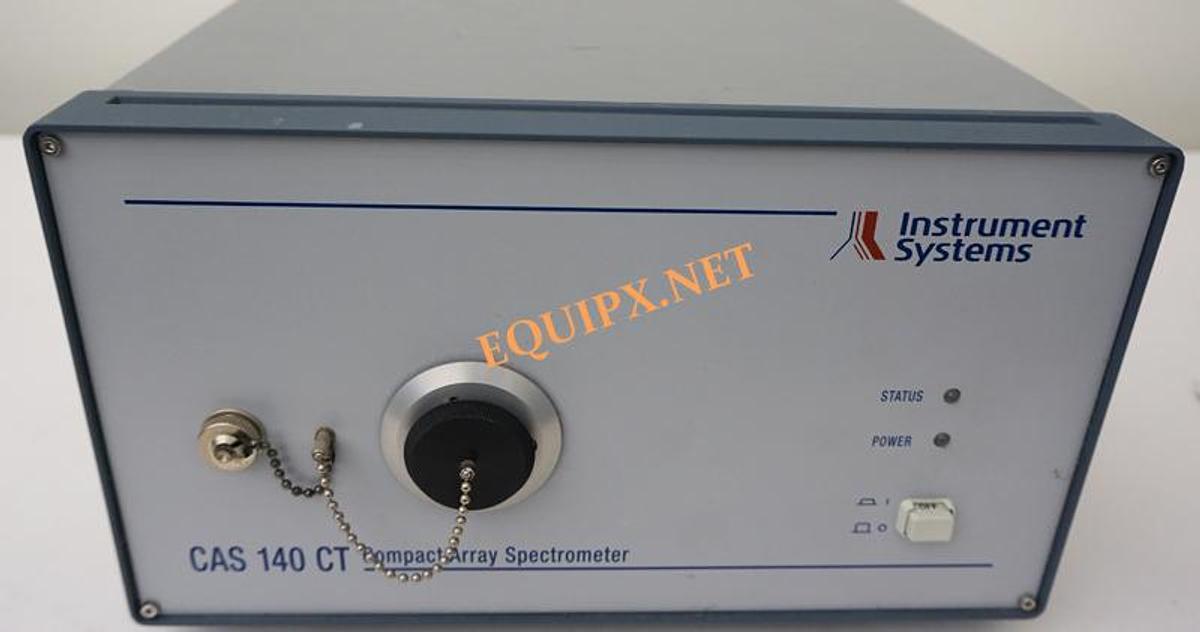

Instrument Systems CAS140CT-152 spectrometer UV-VIS 200-800nm
Instrument Systems CAS140CT-152 spectrometer UV-VIS 200-800nm
$3,450 (USD)
Description
sn 74314209
Three generations of the CAS 140CT speak to the massive success of this array spectroradiometer from Instrument Systems. Simple to operate, highly accurate with an opto-mechanically robust design, these machines are highly capable and highly desirable, with a wide range of potential uses in a huge number of industries. Whether you require it as a reference instrument in calibration laboratories, or intend to have it operate continuously in a manufacturing capacity, the CAST 140CT is the answer for your testing and manufacturing needs.
One of the cutting edge features that puts the CAS 140CT ahead of other models is the newly developed Crossed-Czerny-Turner spectrograph. This high-end spectrograph has a back-illuminated CCD detector which assists in reducing stray light. The end result is a significantly improved dynamic range and increased measurement accuracy.
The CAS 140CT is a singular design, and is the only array spectroradiometer to incorporate an optical density filter wheel. This helps extend the measurable intensity range over 4 orders of magnitude, which makes the CAS 140CT proficient in taking measurements for both very weak and very strong light sources automatically and accurately.
Applications
Specifications
| Model | Spectral range [nm] | Number of pixels | Spectral resolution [nm] *) | Datapoint interval [nm] |
|---|---|---|---|---|
| back-illuminated CCD detector | ||||
| CAS140CT-151 | 360 – 830 | 1024 x 128 | 2.2 | 0.5 |
| CAS140CT-152 | 200 – 800 | 1024 x 128 | 2.7 | 0.6 |
| CAS140CT-153 | 380 – 1040 | 1024 x 128 | 3.0 | 0.65 |
| CAS140CT-154 | 220 – 1020 | 1024 x 128 | 3.7 | 0.8 |
| CAS140CT-155 | 750 – 1050 | 1024 x 128 | 2.0 | 0.3 |
| CAS140CT-156 | 300 – 1100 | 1024 x 128 | 3.7 | 0.8 |
| InGaAs or extended InGaAs detector | ||||
| CAS140CT-171 | 780 – 1650 | 512 | 9 | 2.1 |
| CAS140CT-175 | 1500 – 2150 | 256 | 15 | 3 |
| *) for standard 100 µm slit, for 50µm slit the given values should be roughly halved |
