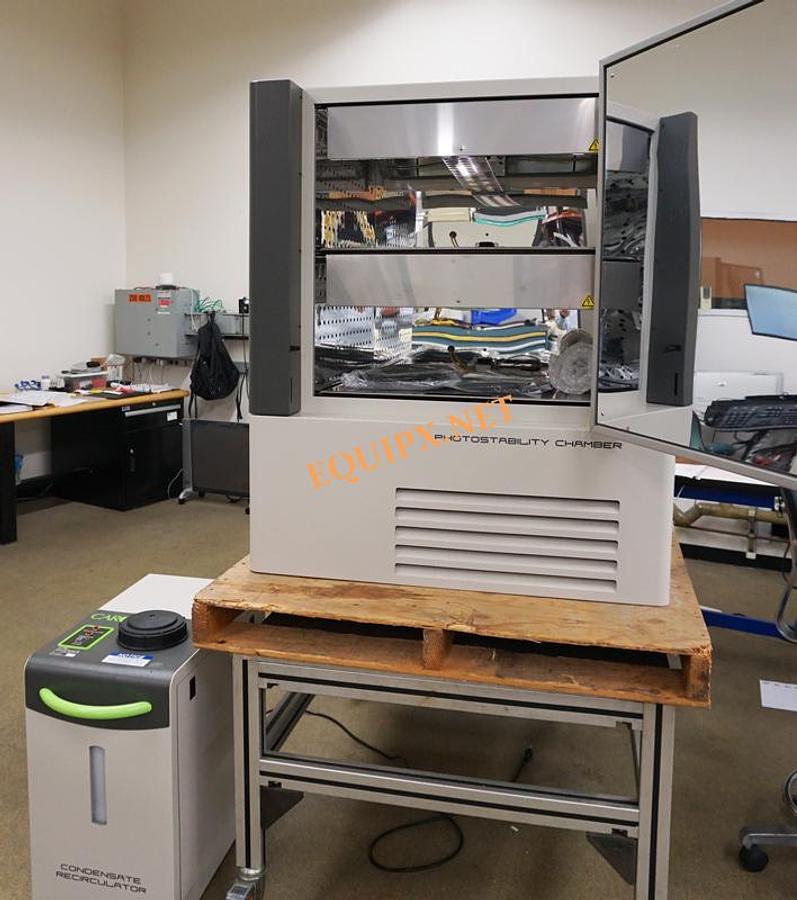

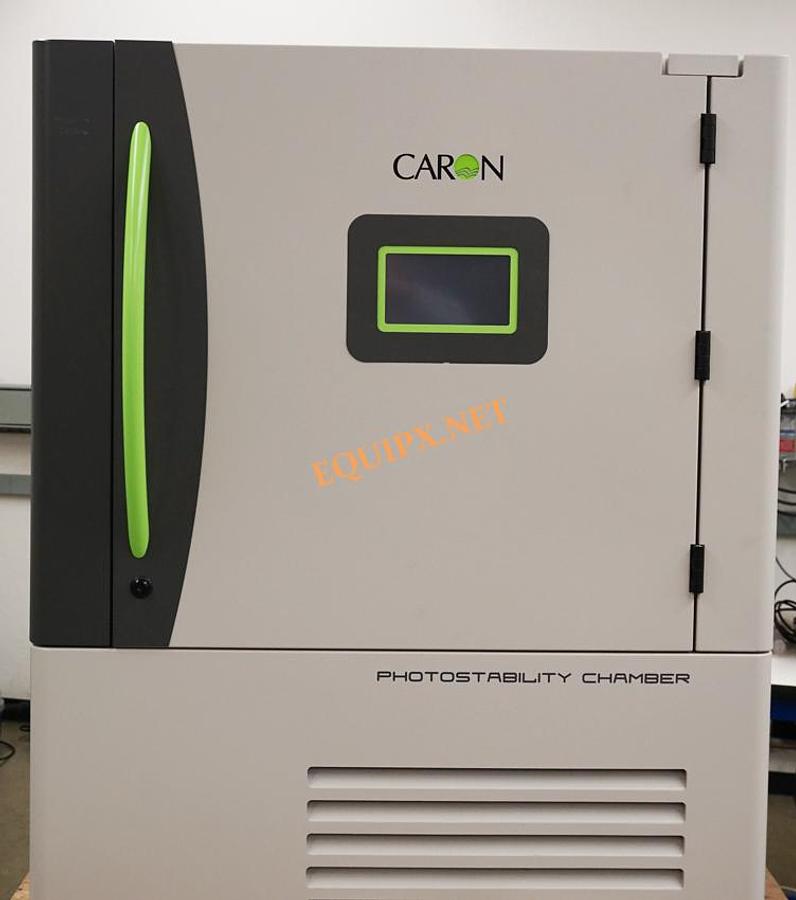

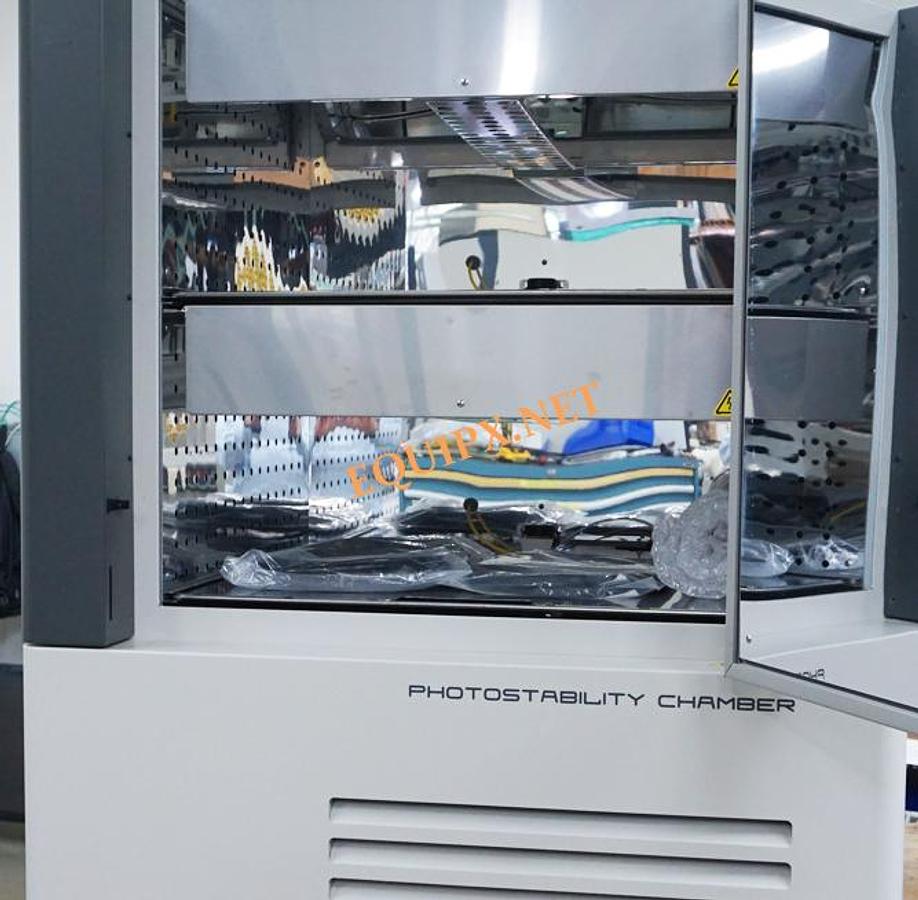

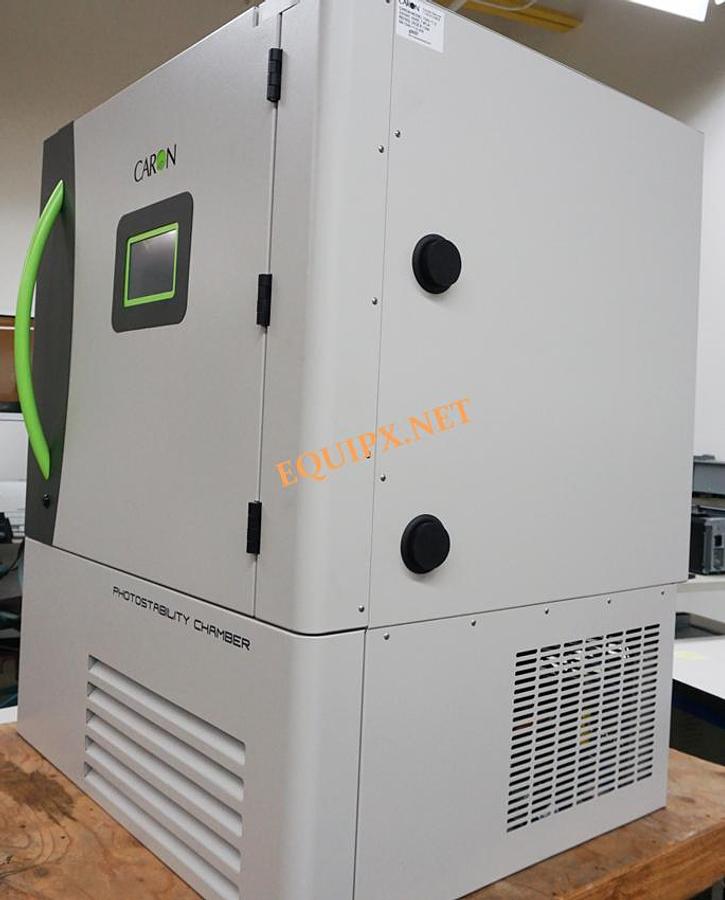

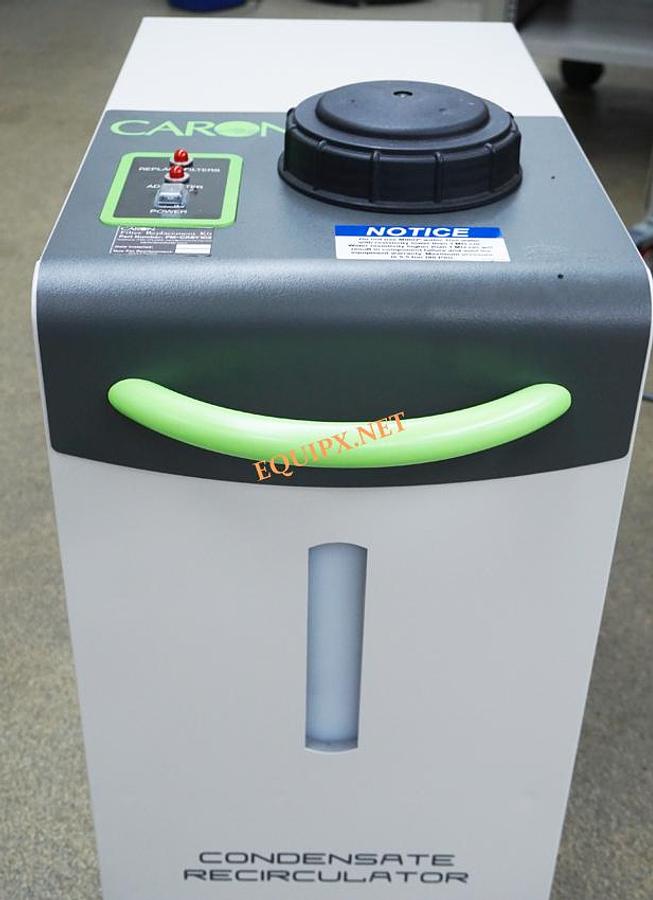

Caron 7545-11-2 photostability chamber with CRSY-102 condensate recirculator
Caron 7545-11-2 photostability chamber with CRSY-102 condensate recirculator
$26,500 (USD)
or
Call (408) 209-9278
Description
Power req. 230VAC, 60HZ, 7.8FLA
SN 7545-11-2-005
SPECIFICATIONS
7545-1 Lamp Type / UVA Fluorescent / Near UV (Black Lamp) Lamp Type / VIS Fluorescent / Cool White (ISO 10977 Compliant)
Light Detectors UVA and Visual /Calibrated
UVA Intensity 20 W/m2
VIS Intensity 20 klux
Lamps Dimming N/A
Time Required to Reach ICH of 200 Whr/m2 10 hrs
Time Required to Reach ICH of 1.2 million lux-hr 60 hrs
Light Uniformity UVA:±10% VIS:±15%
Temperature Range 10°C to 35°C (Lights On)**
Temperature Control ± 0.2°C
Temperature Uniformity ± 2.5°C (Lights On)
Humidity Range 40-70% RH
Humidity Control ±3%
Shelf Count Two (2) Sliding / 26.0”W x 23.1"D x 8"H Each (660mm W x 587mm D x 203mm H)
Usable Shelf Area / Each 19.0”W x 23.0"FB (483mm x 584mm)
Usable Shelf Area / Total 6.1in. 2 ft.2 (0.56m2) / 76% of Total Shelf Maximum
Weight 22 lbs. Per Shelf (10 kg)
Interior Surfaces Reflective Specular Aluminum
Interior Construction Stainless Steel
Internal Volume 11cu.ft. (311L) /Includes Lamp Space
Exterior Dimensions 37.7”W x 30.8"D x 45.7"H (958mm W x 782mm D x 1161mm H)
Interior Dimensions 26.9”W x 24.0"D x 28.0"H (683mm W x 610mm D x 711mm H)
Access Ports Two (2) / 2”W x 1.8"H Each (51mm W x 46mm H)
Shipping Weight 580 lbs.
* Specifications are subject to change without notice. Specifications were established with lights fully ‘on’ at 25°C, 50% RH and RH levels limited by a 5°C minimum dewpoint. 50 Hz units are CE Marked and contain readily available European components.
**When calibrated to the median average temperature.
**Includes export shipping crate Specifications are subject to change without notice.
Environmental Conditions: Temperature 15ºC to 25ºC, Humidity non-condensing
*See graph for details
*7540, 7545 Series units have forced internal air flow of 440 cfm (12459 LPM)
* Model 7540-11 7545-11 -1 -2 -3 -1 -2 -3 Shipping Weight 580 lbs. (263 kg.) 700 lbs. (317 kg.)** 580 lbs. (263 kg.) 700lbs. (3 kg.)
** Electrical 115V, 60Hz, 15A 230V, 60Hz, 10A 230V, 50Hz, 10A 115V, 60Hz, 15A 230V, 60Hz, 10A 230V, 50Hz 10A
SN 7545-11-2-005
SPECIFICATIONS
7545-1 Lamp Type / UVA Fluorescent / Near UV (Black Lamp) Lamp Type / VIS Fluorescent / Cool White (ISO 10977 Compliant)
Light Detectors UVA and Visual /Calibrated
UVA Intensity 20 W/m2
VIS Intensity 20 klux
Lamps Dimming N/A
Time Required to Reach ICH of 200 Whr/m2 10 hrs
Time Required to Reach ICH of 1.2 million lux-hr 60 hrs
Light Uniformity UVA:±10% VIS:±15%
Temperature Range 10°C to 35°C (Lights On)**
Temperature Control ± 0.2°C
Temperature Uniformity ± 2.5°C (Lights On)
Humidity Range 40-70% RH
Humidity Control ±3%
Shelf Count Two (2) Sliding / 26.0”W x 23.1"D x 8"H Each (660mm W x 587mm D x 203mm H)
Usable Shelf Area / Each 19.0”W x 23.0"FB (483mm x 584mm)
Usable Shelf Area / Total 6.1in. 2 ft.2 (0.56m2) / 76% of Total Shelf Maximum
Weight 22 lbs. Per Shelf (10 kg)
Interior Surfaces Reflective Specular Aluminum
Interior Construction Stainless Steel
Internal Volume 11cu.ft. (311L) /Includes Lamp Space
Exterior Dimensions 37.7”W x 30.8"D x 45.7"H (958mm W x 782mm D x 1161mm H)
Interior Dimensions 26.9”W x 24.0"D x 28.0"H (683mm W x 610mm D x 711mm H)
Access Ports Two (2) / 2”W x 1.8"H Each (51mm W x 46mm H)
Shipping Weight 580 lbs.
* Specifications are subject to change without notice. Specifications were established with lights fully ‘on’ at 25°C, 50% RH and RH levels limited by a 5°C minimum dewpoint. 50 Hz units are CE Marked and contain readily available European components.
**When calibrated to the median average temperature.
**Includes export shipping crate Specifications are subject to change without notice.
Environmental Conditions: Temperature 15ºC to 25ºC, Humidity non-condensing
*See graph for details
*7540, 7545 Series units have forced internal air flow of 440 cfm (12459 LPM)
* Model 7540-11 7545-11 -1 -2 -3 -1 -2 -3 Shipping Weight 580 lbs. (263 kg.) 700 lbs. (317 kg.)** 580 lbs. (263 kg.) 700lbs. (3 kg.)
** Electrical 115V, 60Hz, 15A 230V, 60Hz, 10A 230V, 50Hz, 10A 115V, 60Hz, 15A 230V, 60Hz, 10A 230V, 50Hz 10A
