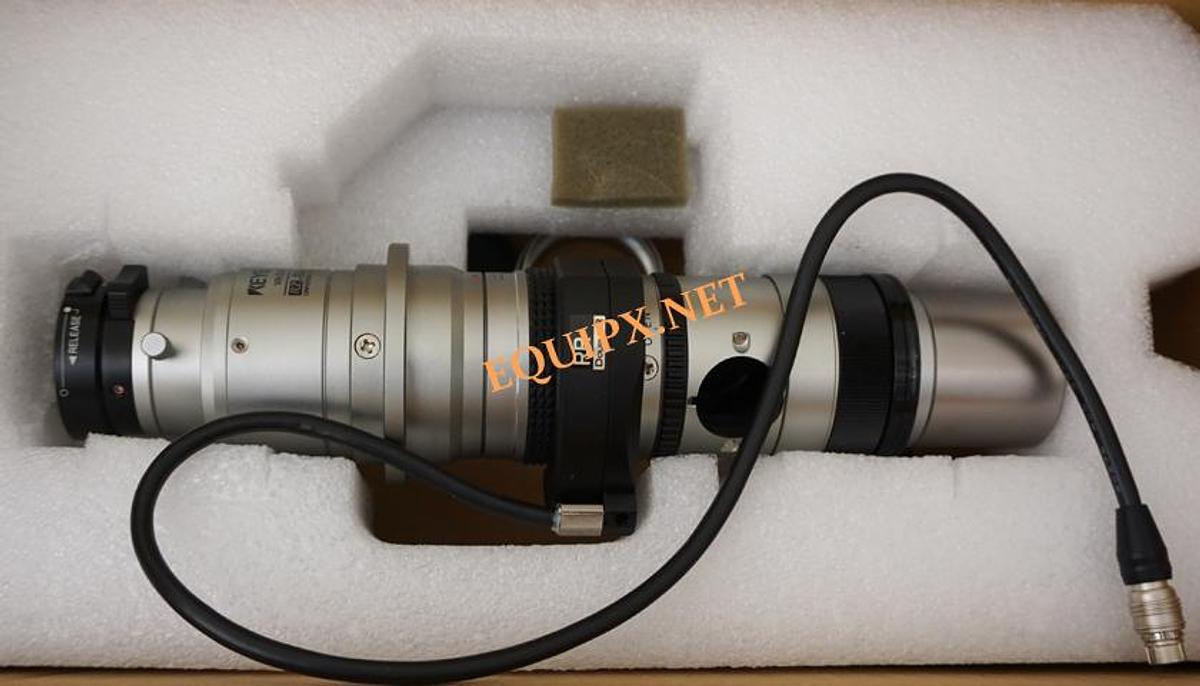

Keyence VH-Z100UR RR-100x-1000x universal zoom lens- NEW

The working distance for the Keyence VH-Z100R zoom lens is 25 mm (0.98") across all magnification levels (100x to 1000x). [1, 2]

This distance decreases to 20 mm (0.79") if you attach the optional dual lighting base unit and adjustable lighting attachments. [1, 2]

Key Details

• Standard Working Distance: 25 mm
• With Dual/Adjustable Lighting Attached: 20 mm
• Magnification Range: 100x to 1000x (on a 15-inch monitor) [1, 2]

The Field of View (FOV) for the Keyence VH-Z100R shifts dynamically based on your magnification setting, ranging from 3.05 mm wide at 100x down to 0.30 mm wide at 1000x. [1]

The exact horizontal, vertical, and diagonal FOV dimensions across the lens's standard optical steps (calibrated for a 15-inch monitor) include: [1]
