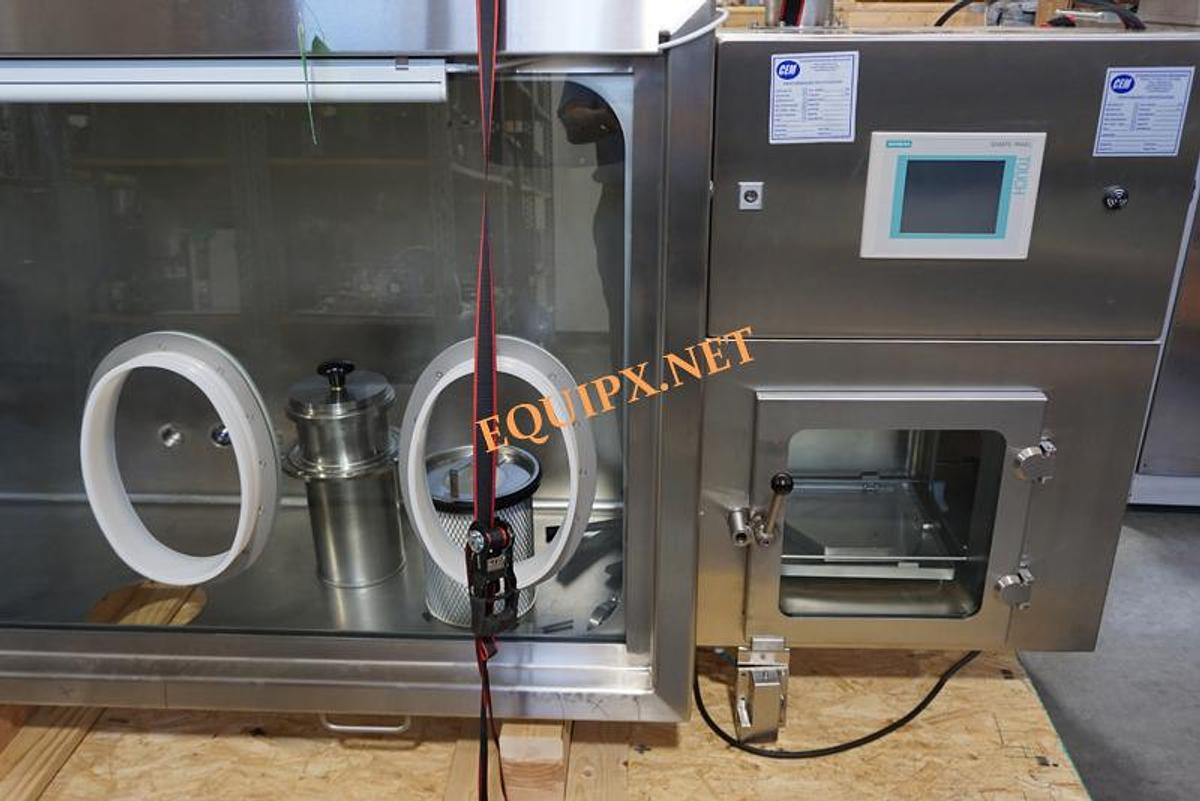

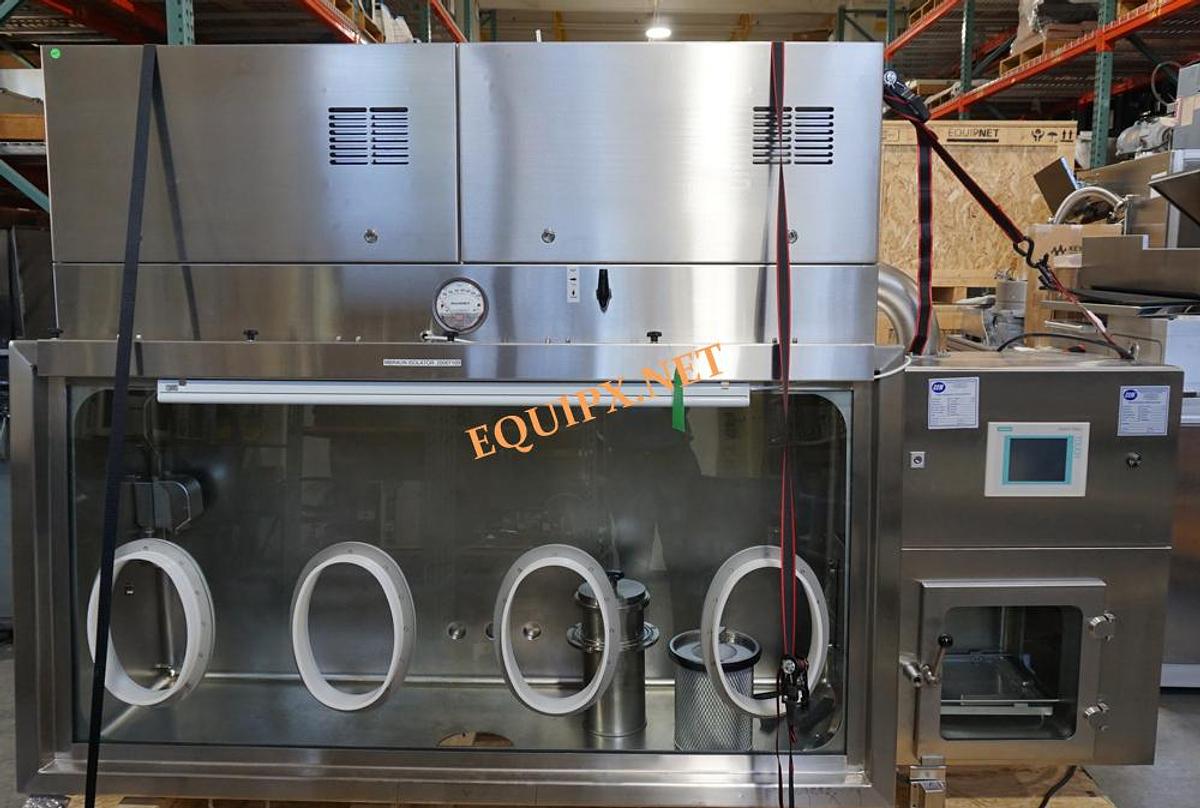

Mbraun 4 port IsoPro Containment Isolator with transfer Chamber and HEPA filtration
Mbraun 4 port IsoPro Containment Isolator with transfer Chamber and HEPA filtration
$23,500 (USD)
or
Call (408) 209-9278
Description
ISO PRO 1000 ADVANCED CONTAINMENT ISOLATOR
PREVIOUS USAGE: CLEANROOM PRODUCTION ENVIRNOMENT BY WL GORE
INTERNAL WORKSPACE DIMENSIONS (mm)1800W X 594D X 925H (71"w x 23"d x 36.4"h)
INSIDE SURFACE Ra 0.8, OUTSIDE SURFACT Ra < 1.0
STAND 304SS WITH 4 WHEELS AND LEVELING FEET
HOUSING 316l SS WELDED CONSTRUCTION,3mm WITH RADIUM (12mm) AND BALL CORNERS.
PRESSURE MONITORING MAGNAHELIC GAUGE
PRESSURE REGULATION ANALOG PRESSURE SENSOR
WINDOWS LAMINATED SAFETY GLASS ANGLED 5 DEGREES FROM BOTTOM TO TOP
INCLUDES 316L SS FRAME AND EPDM. WINDOW SEAL
GLOVE PORT FEEDTHROUGHS 4 PIECES, OVAL MADE OF HDPE
INCLUDES GLOVES EPDM WITH FDA CERTIFICATE. 1 PIECE
TRANSFER CHAMBER W - 414mm, D-351mm, H=300mm (16.3"w x 13.8"d x 12"h)
DOOR OPENING W=300mm, H=300mm, 316SS WITH RADIUS AND BALL CORNERS. (12" x 12")
ACRYLIC DOORS AND INTERNAL TRAY
INLET FILTER HEPA H13 SCREW TYPE WITH MANUAL SHUT OFF
OUTLET FILTER HEPA H13 PUSH-PUSH
DOUBLE FILTER SYSTEM: EXHAUST OUTLET IS LOCATED ON TOP OF THE ISOLATOR HOUSING WITH OUTSIDE FLANGE TO CONNECT TO AN EXISTING HVAC SYSTEM.
ELECTRICAL FEEDTHROUGH CABLE FEEDTHROUGH WITH CABLE (1m INSIDE)
FEEDTHROUGH 3 PIECES 316L SS TTC ISO DN 40
FLANGES IN THE BACK WALL WITH BLIND COVERS OUTSIDE AMD TEFLON
PLUGS
INCLUDES FLOOR DRAIN PORT.
1 EACH 1100 1699999 BLOWER UPGRADE / EXPLOSION PROOF
1 EACH 1200 1699999 PLC FOR MONITORING PRESSURE, CIRCULATION & POWER
1 EACH 1300 1699999 AUDIBLE ALARM FOR PRESSURE ALARM
1 EACH 2000 1699999 GULLWING WINDOW
1 EACH 3000 1699999 BAG IN/BAG OUT RING INCLUDING ACCESSORIES, BAG&TIES
1 EACH 4000 1699999 WASH IN PLACE (WIP) ASSEMBLY TO CONSIST OF 1 SPRAY
GUN WITH TEFLON TUBE AND WALL FEED THROUGH AND OUTSIDE BALL VALVE
PLUS THE DRAIN EXIT WITH AN OUTSIDE BALL VALVE AND MANUAL VALVE AT
INLET AND OUTLET.
1 EACH 5000 1699999 N2 BULKHEAD FITTING WITH BLANK CAP
1 EACH 6000 1699999 TRANSFER CHAMBER MODIFICATION TO UPGRADE TRANSFER
DOOR MATERIAL FROM ACRYLIC TO GLASS INCLUDING SS FRAMES AND INTERLOCKS.
1 EACH 8000 1699999 FLANGE CONNECTION FOR ROTARY/LINEAR MOTION MOTOR
(MOTOR COMPONENT NOT INCLUDED.)
**
NOTE: WINDOW SEAL IS A SPECIALLY DESIGNED EPDM SEAL WITH CERTIFICATE.
PREVIOUS USAGE: CLEANROOM PRODUCTION ENVIRNOMENT BY WL GORE
INTERNAL WORKSPACE DIMENSIONS (mm)1800W X 594D X 925H (71"w x 23"d x 36.4"h)
INSIDE SURFACE Ra 0.8, OUTSIDE SURFACT Ra < 1.0
STAND 304SS WITH 4 WHEELS AND LEVELING FEET
HOUSING 316l SS WELDED CONSTRUCTION,3mm WITH RADIUM (12mm) AND BALL CORNERS.
PRESSURE MONITORING MAGNAHELIC GAUGE
PRESSURE REGULATION ANALOG PRESSURE SENSOR
WINDOWS LAMINATED SAFETY GLASS ANGLED 5 DEGREES FROM BOTTOM TO TOP
INCLUDES 316L SS FRAME AND EPDM. WINDOW SEAL
GLOVE PORT FEEDTHROUGHS 4 PIECES, OVAL MADE OF HDPE
INCLUDES GLOVES EPDM WITH FDA CERTIFICATE. 1 PIECE
TRANSFER CHAMBER W - 414mm, D-351mm, H=300mm (16.3"w x 13.8"d x 12"h)
DOOR OPENING W=300mm, H=300mm, 316SS WITH RADIUS AND BALL CORNERS. (12" x 12")
ACRYLIC DOORS AND INTERNAL TRAY
INLET FILTER HEPA H13 SCREW TYPE WITH MANUAL SHUT OFF
OUTLET FILTER HEPA H13 PUSH-PUSH
DOUBLE FILTER SYSTEM: EXHAUST OUTLET IS LOCATED ON TOP OF THE ISOLATOR HOUSING WITH OUTSIDE FLANGE TO CONNECT TO AN EXISTING HVAC SYSTEM.
ELECTRICAL FEEDTHROUGH CABLE FEEDTHROUGH WITH CABLE (1m INSIDE)
FEEDTHROUGH 3 PIECES 316L SS TTC ISO DN 40
FLANGES IN THE BACK WALL WITH BLIND COVERS OUTSIDE AMD TEFLON
PLUGS
INCLUDES FLOOR DRAIN PORT.
1 EACH 1100 1699999 BLOWER UPGRADE / EXPLOSION PROOF
1 EACH 1200 1699999 PLC FOR MONITORING PRESSURE, CIRCULATION & POWER
1 EACH 1300 1699999 AUDIBLE ALARM FOR PRESSURE ALARM
1 EACH 2000 1699999 GULLWING WINDOW
1 EACH 3000 1699999 BAG IN/BAG OUT RING INCLUDING ACCESSORIES, BAG&TIES
1 EACH 4000 1699999 WASH IN PLACE (WIP) ASSEMBLY TO CONSIST OF 1 SPRAY
GUN WITH TEFLON TUBE AND WALL FEED THROUGH AND OUTSIDE BALL VALVE
PLUS THE DRAIN EXIT WITH AN OUTSIDE BALL VALVE AND MANUAL VALVE AT
INLET AND OUTLET.
1 EACH 5000 1699999 N2 BULKHEAD FITTING WITH BLANK CAP
1 EACH 6000 1699999 TRANSFER CHAMBER MODIFICATION TO UPGRADE TRANSFER
DOOR MATERIAL FROM ACRYLIC TO GLASS INCLUDING SS FRAMES AND INTERLOCKS.
1 EACH 8000 1699999 FLANGE CONNECTION FOR ROTARY/LINEAR MOTION MOTOR
(MOTOR COMPONENT NOT INCLUDED.)
**
NOTE: WINDOW SEAL IS A SPECIALLY DESIGNED EPDM SEAL WITH CERTIFICATE.
Specifications
| Stock Number | 4733 |
| Sort | 0 |
