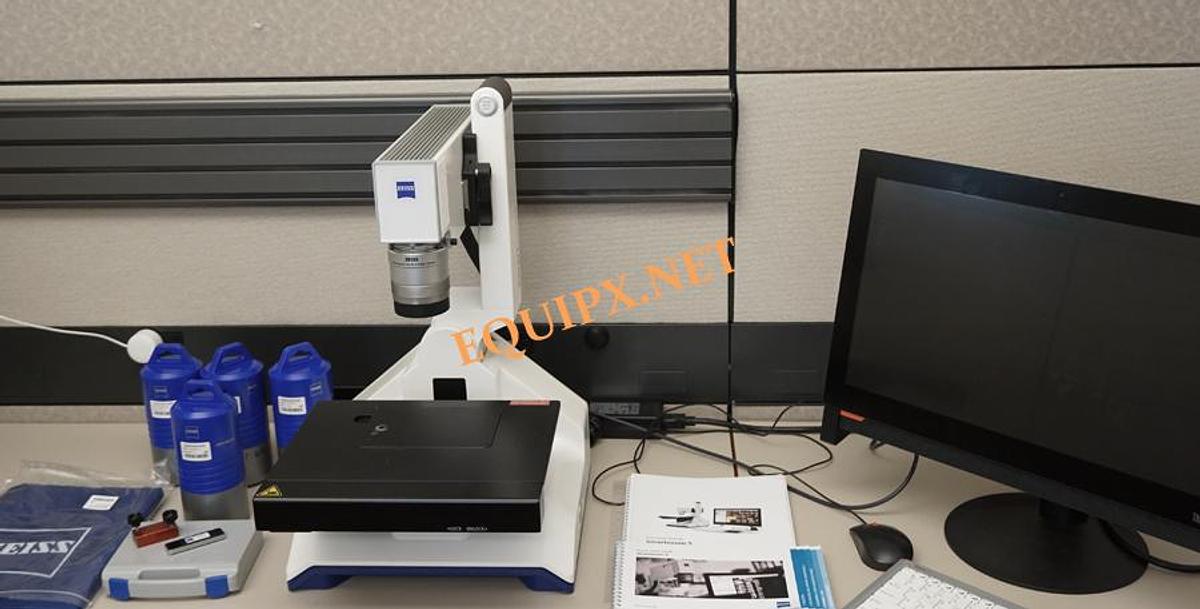

2023 Zeiss SmartZoom 5 Digital Microscope with 2 objectives, scanning stage, 3D Stitching

Zeiss SmartZoom 5 Digital Microscope with Controller/Computer purchased in 2023

Includes:

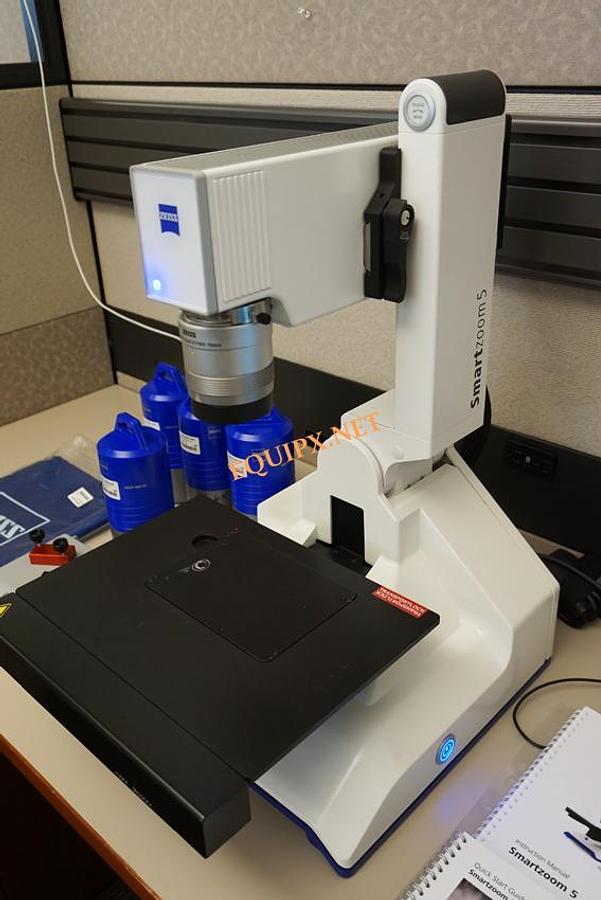

Zeiss Model D Tiltable Stand (G) Item No. 430040-9000-000  Motorized Z-Drive for Focusing & Pivot Point Adjustment  Tilting angle ≤ 45°

Zeiss Smartzoom 5 Optical Engine (G) Item No. 425525-9010-000

  Integrated 10x Zoom

  Integrated Coaxial LED illumination

  Integrated CMOS Camera

Zeiss 10X Plan Apo D Objective Part No. 435230-9040-000

   NA = 0.6, FWD 10 mm

   Integrated Segmented LED Illumination

   Integrated Data Output on Magnification & Optical Correction Factors

Zeiss 1.6X Plan Apo Objective

   NA = 0.1, FWD 36 mm

   Integrated Segmented LED Illumination

   Integrated Data Output on Magnification & Optical Correction Factors

Zeiss Motorized Scanning Stage D 130 X 100 STEP Item No. 432038-9000-000

   Stage Flat Surface Area: 310 mm X 223 mm

   XY Travel: 130 mm X 100 mm

   Absolute Accuracy: +/- 5 µm

   Reproducibility: ≤ 1 µm

   Stepper Motor with 4 mm Spindle Pitch

   Integrated Controller

   Interchangeable Stage Inserts: 160 mm X 116 mm

   Metal Stage Insert Included

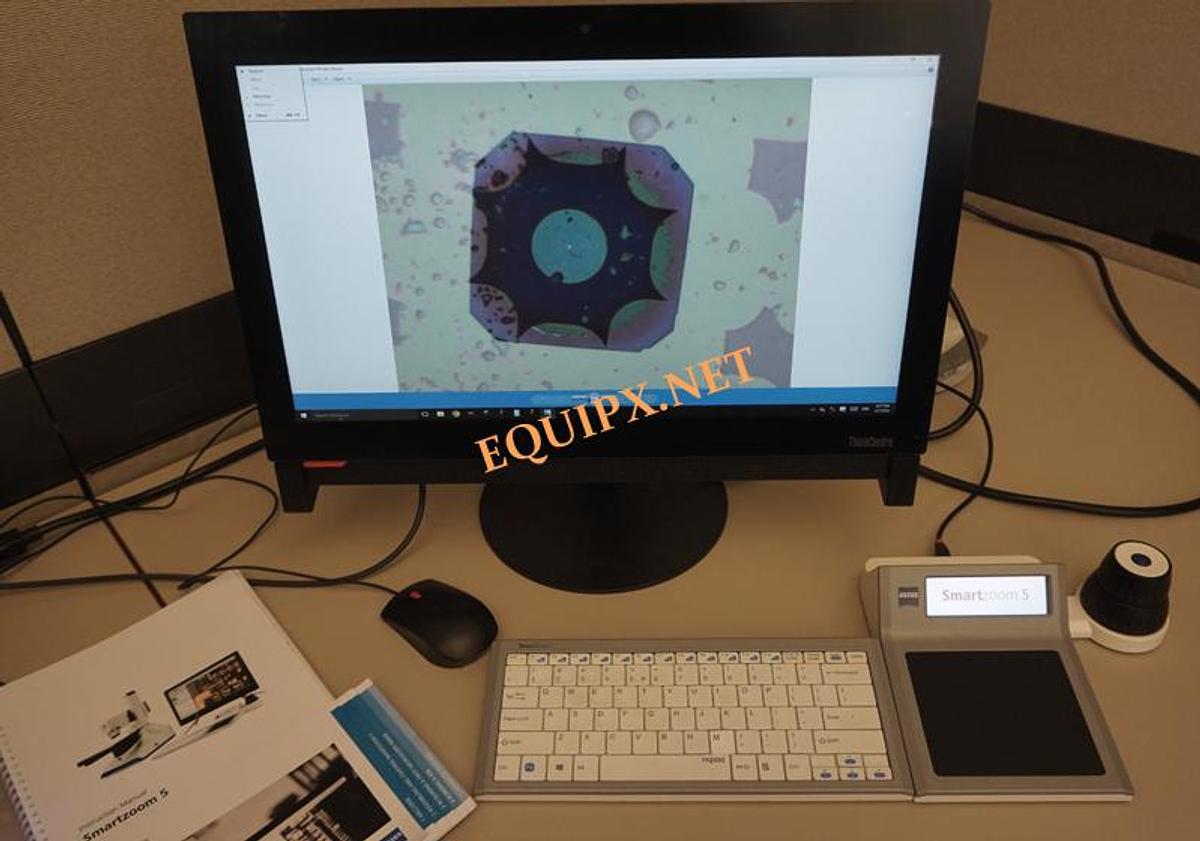

Lenovo ThinkCentre All-in-One Control PC for Smartzoom 5 Item No. 432915-9105-000

  Full HD 24” Display & Integrated PC with Windows 10

  2019 LTSC includes Smartzoom Acquisition

  2D/3D Measurement & Reporting Software with 3D/EDF (Extended Depth of Focus) Imaging

  3D/EDF Stitching & Job Mode with Individual Referencing Data, Configuration & System CalibrationAdditional 0.5x and 5.0x objecties available as optionsOriginal cost approx $80,000. including 2 objectivesadditional objectives cost approx. 9k each
