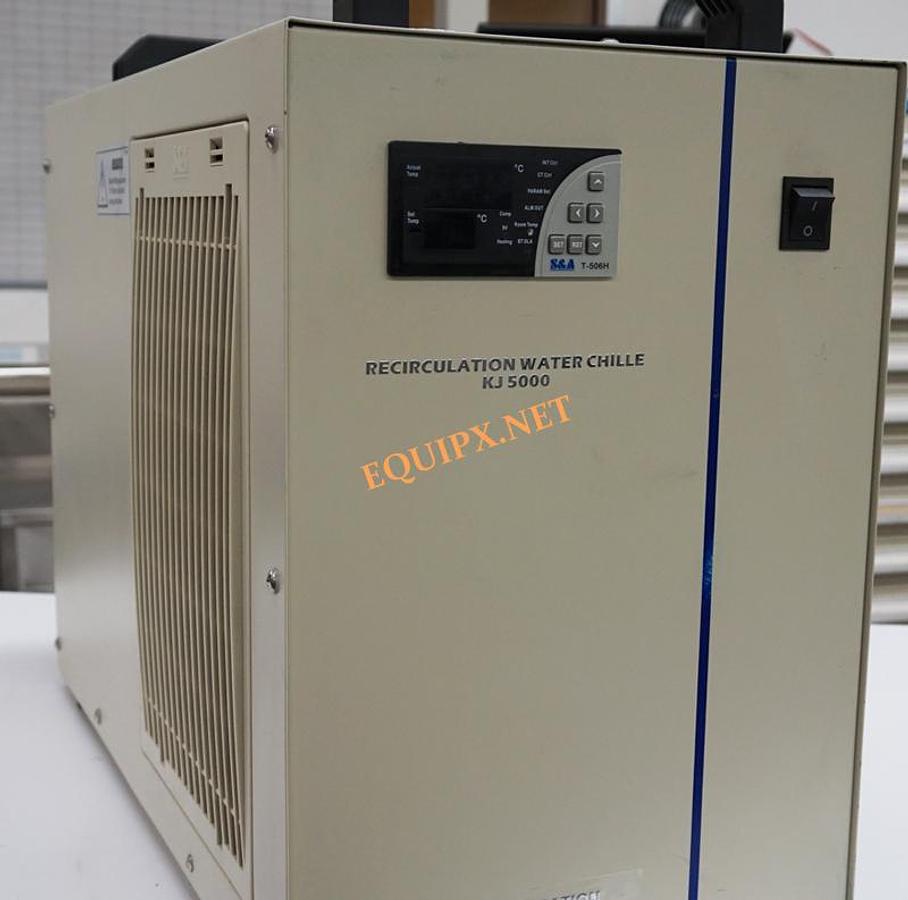

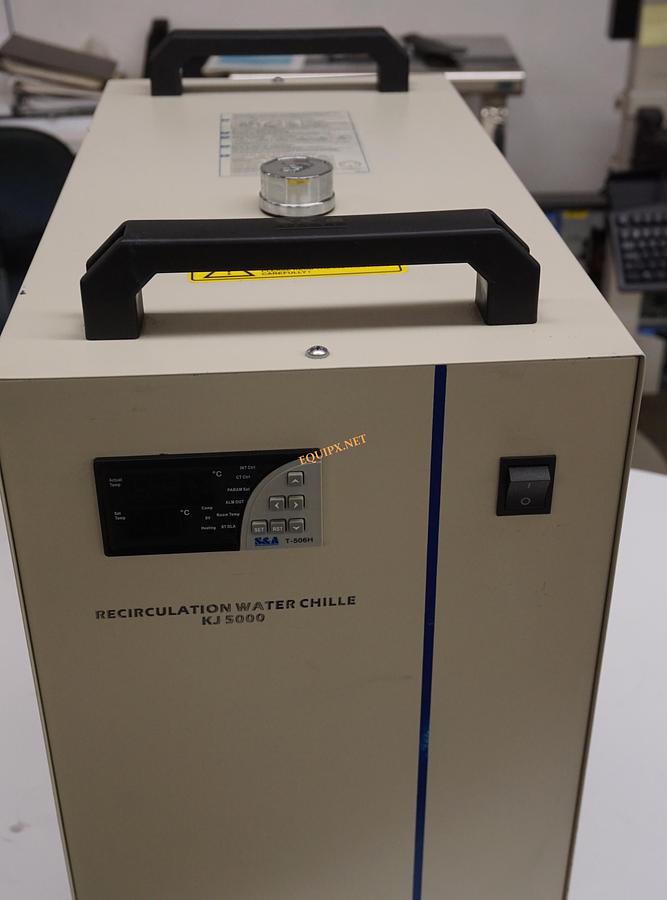

MTI KJ5000 Recirculating water chiller 5-35C

Digital Temperature Controlled Recirculating Water Chiller with 16L / min Flow, 2.8K BTU/hr - EQ-KJ5000

EQ-KJ5000 is a CE certified Water-cooled Chiller with built in the refrigerating machine that provides a clean, environmentally friendly and reliable source of temperature-controlled fluid for closed loop systems up to 16L/min. It eliminates scale buildup, sewerage cost, and tap water cooling expenses. This small chiller provides high cooling capacity at low cost and has a convenient digital reading and setting display. Temperature range can be adjusted from 5 to 30°C. It is suitable for MTI RTP Furnaces, High-Temperature Ovens, and any lab equipment that need water cooling.   SPECIFICATIONS Power Supply AC 100-120V or AC 208-240V can be selected in options bar (50/60Hz). Current 3.5-5.6A Refrigerant & Cooling Capacity Refrigerant: R134a (~300g) Capacity: 722Kcal/h;  2866Btu/h;  840W Temperature Control  5~30 °C Temperature Accuracy ± 0.3 °C Max. Pump Head 10 meters (14psi) Pipe Connectors Φ 12mm PTC connector 8mm I.D, 12mm O.D. polyurethane tube is included Water Flow Rate 16 Liters / minute Water Tank 6 Liters Water Tank made of stainless steel Water chiller should not be connected to a system with the capacity more than the tank's capacity itself. Use coolant instead of water for longer service life. Do not use deionized water as the cooling agent, DI water may cause the copper pipe to corrode, mainly pitting, and leak over time. Water Drain Plug Threads and Pitch Size: M16, 1.75mm Water Filter One water filter is included for immediate use. Replace the water filter every 3 to 6 months based on water quality and usage. Please click on pic to order               Protection Protected from overflow alarm and over temperature Noise Level When compressor and water pump is running,  70 dB (20 cm away from the chiller) 64 dB (100 cm away from the chiller) When only the water pump is running,  47 dB (20 cm away from the chiller) 43 dB (100 cm away from the chiller) (Background noise level: 45 dB) Overall Dimensions 550 X 280 X 430 mm (L x W x H) Shipping Weight 100 lbs Operation Instructions Warranty One year limited warranty with lifetime support Compliance CE approval NRTL or CSA Certification is available upon request at extra cost. Application Notes Must use Rust Protection coolants to prevent rust and corrosion. The use of tap water is prohibited. Please connect the chiller water outlet to the equipment water inlet and the chiller water inlet to the equipment outlet. Otherwise, the water flow sensor on the equipment may fail to work due to the wrong water flow direction If you need a temperature below 20C, please set Parameter F9 to the desired temperature(10C-20C).
