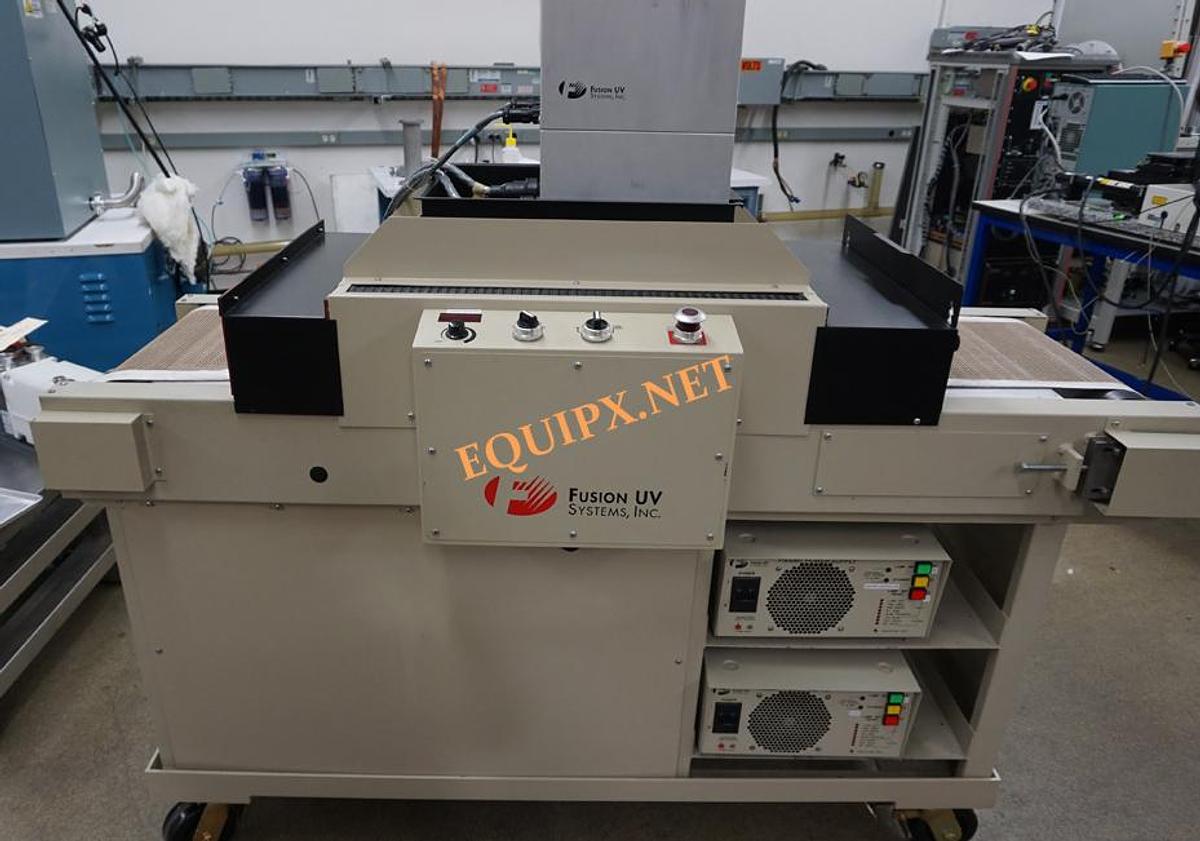

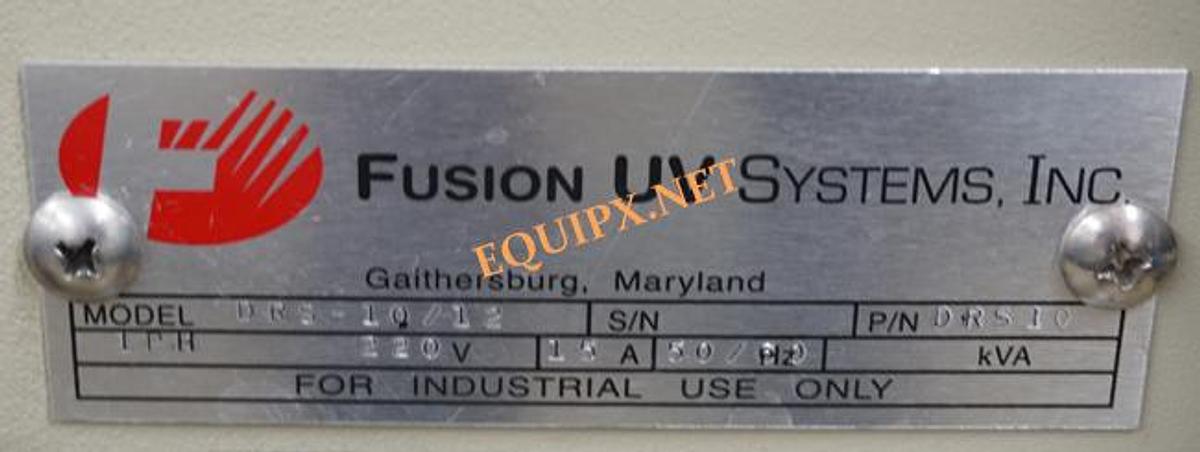

Fusion DRS 10/12 UV curing conveyor with (2) F300S lamp systems and 14" belt width

Call (408) 209-9278

Description

14" wide conveyor belt

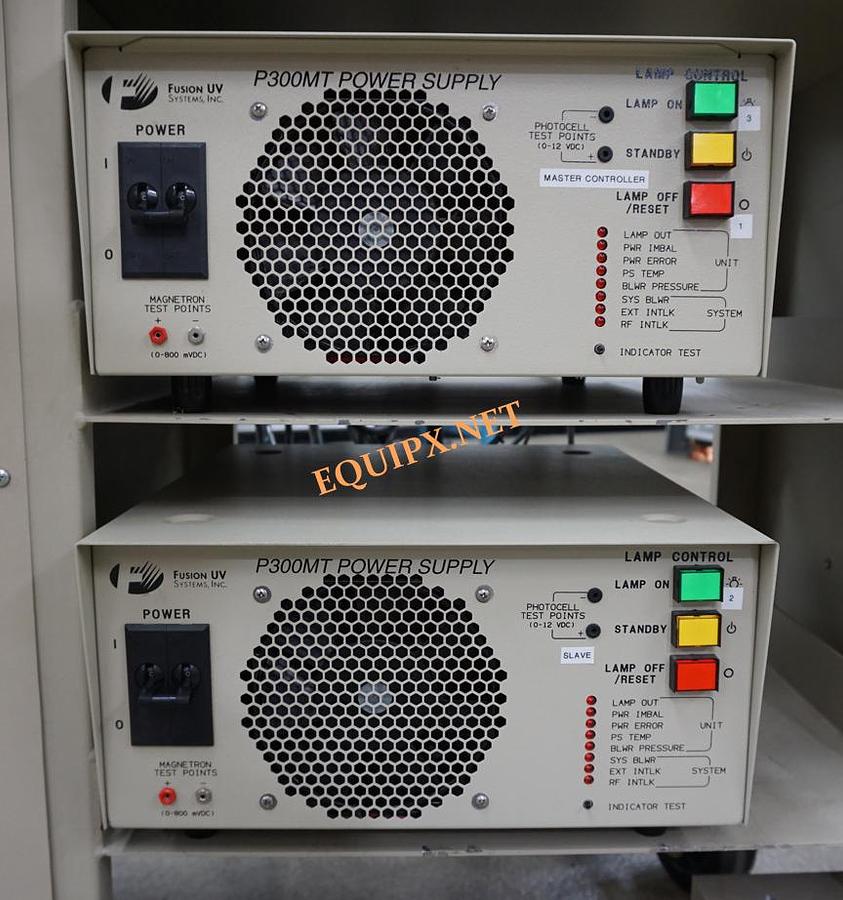

(2) P300MT power supplies

(2) I300 series irradiators with 6" lamps

3.5" clearance above belt

Variable belt speed

Digital speed control

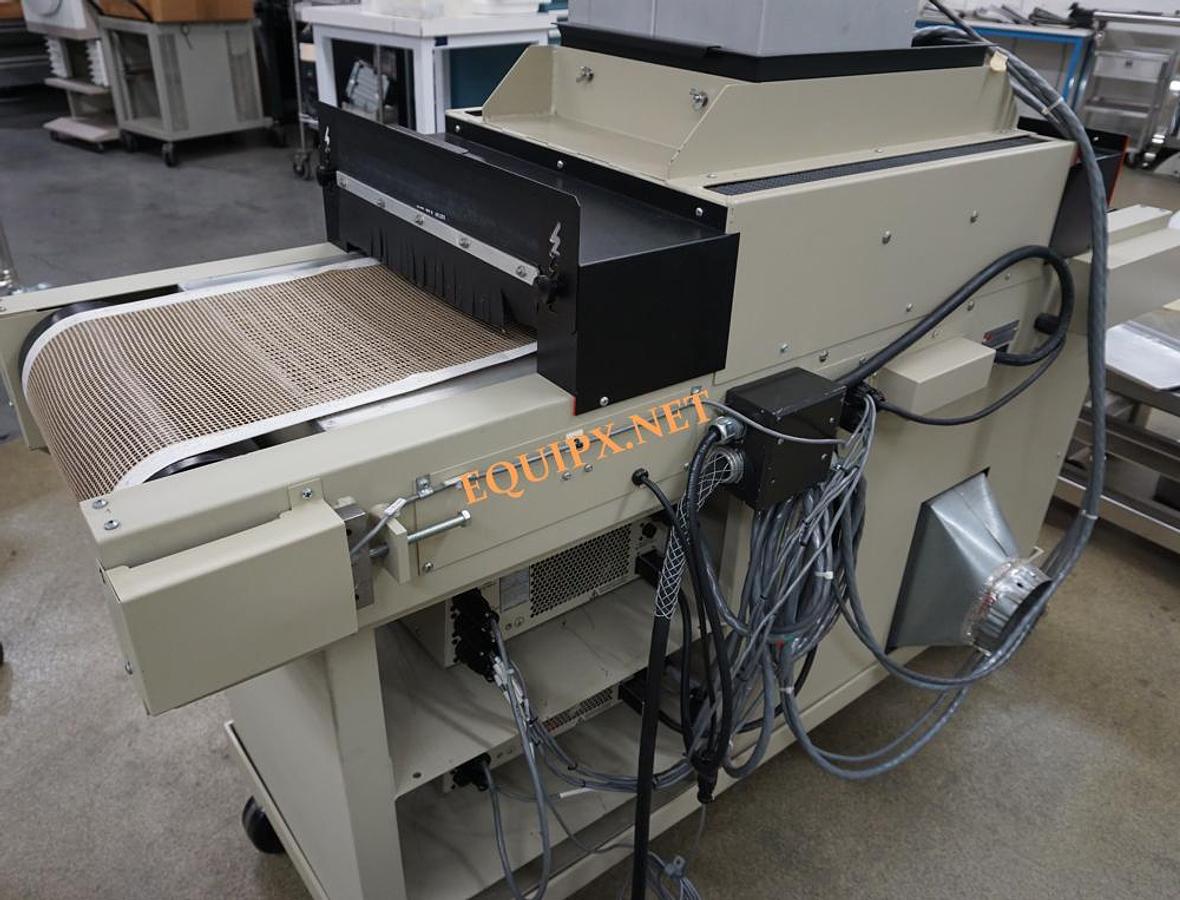

Discharge chute 15"x36"

Conveyor Equipped Systems for Laboratory R&D or Production Line Use

The DRS10/12 offers the performance of electrodeless lamp technology in both laboratory and production line environments. The F300, F450, F455, LH6, LH10*, VPS and F600 lamp systems are available with inter-changeable special fill bulbs offering the user the flexibility to select the most appropriate UV spectrum for the chemistry being used. For chemical formulators, coating manufacturers, and end users, these systems allow evaluation of curing processes for larger production lines…or they can be placed into production as is. The DRS will satisfy your needs for increased productivity, lower energy costs and product quality improvement.

Standard Features

Compact, efficient design.

Modular electrodeless lamp systems (lamp system selected separately).

Anti-static, kevlar, mesh conveyor belt.

10-150 fpm (3.0-45.7 m/min.) continuous range. Adjustable speed control with digital display.

Display speed in m/min. or fpm.

Vacuum “hold down” facilitates handling of lightweight parts and sheets.

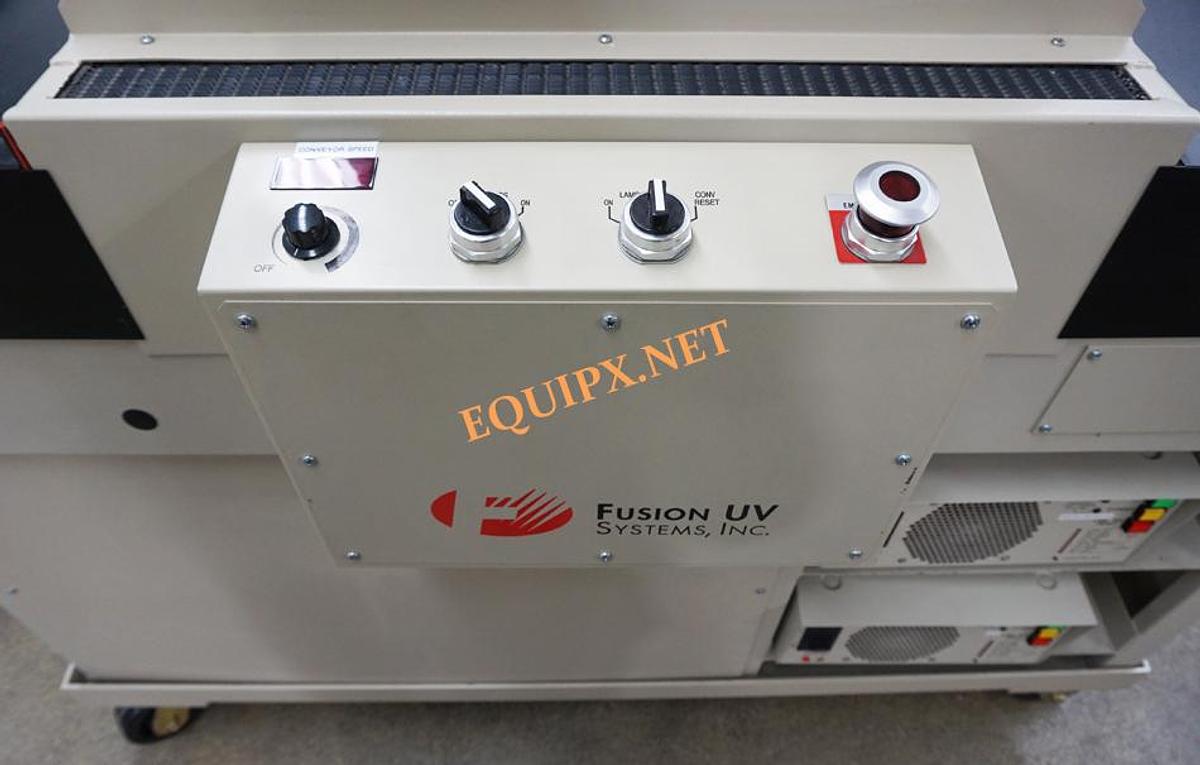

Emergency stop switch.

System interlocks for safe operation.

Parts up to 4 inches high.

Lamp focus adjustability.

Designed for ease of product loading and unloading.

Choice of 110/120 or 200/220 VAC, 50/60 Hz, single-phase.

Slip-clutch drive for safety.

Integral exhaust blower.

Optional Features

Five optional speed ranges from 1 to 500 fpm.

Continuous range focal adjustment.

Standard color shown. Other colors available.

Tough and Safe

The conveyor frame and lamp housing of the DRS10/12 conveyor system are constructed of welded steel for strength and durability.

As with all Fusion UV Systems equipment, personal safety and substrate protection are prime considerations.

The DRS10/12, when used with standard Fusion UV Lamp Systems, protects against:

Lamp and blower failure.

Microwave leakage.

Excessive power supply temperature.

Power imbalance.

Power error.

Power interruption.

Zero speed.

In addition, there is an external interlock provision for user connection to other equipment.SPECIFICATIONS OF DRS 10/12

F300 lamp system characteristics

Electrodeless Technology

The microwave-powered lamp and its electrodeless bulb technology have proven themselves over time and in hundreds of demanding applications. At the heart of the microwave technology is the tubular electrodeless bulb in an elliptical reflector that focuses an intense strip of UV energy onto the surface in front of it. These long life bulbs (no metal electrodes as required in conventional arc lamps) are known for their stable performance, high intensity and low maintenance operation. Frequent on/off operation has no adverse effect on UV output or bulb lifetime.

More Efficient and Faster UV Curing from High Peak Irradiance and Low Infrared

The small diameter bulb combined with the elliptical reflector provides high peak of UV irradiance for high-speed cure. The small diameter bulb also reduces infrared emission resulting in lower surface temperatures of the substrate, thus reducing the need for complicated heat removal methods. The system features two easy-to-service modular components: the microwave-powered irradiator and the power supply.

Advanced Irradiator

Rigid aluminum construction incorporates both the bulb and reflector assembly. The major benefits of this design are:

Higher production rates - The focused elliptical reflector concentrates maximum UV power 53 mm (2.1 inches) below the lamp face.

Reduced maintenance - No water cooling required. Positive air flow, using only filtered air, forces dirt, dust, and vapors away from the reflectors and bulb, maintaining system cleanliness and long bulb life. Irradiator modules are available with integral cooling blowers. Simple bulb changes can be accomplished in minutes.

Energy savings and flexibility - The modular design enables adjustable cure width. The 6" modules can be placed end-to-end for uniform cure, or turned on independently to save energy costs for narrow width runs on wide systems. When placed end-to-end, there is no loss of illumination at the juncture of adjacent lamps.

User Friendly Power Supply

The power supply embodies simple controls and easy interconnections. The benefits are:

Easy, Quick Start-up - On/off/standby control allows easier, quicker start-up procedures.

Safe operation - Safety interlocks built in.

Eliminate scrap - Lamp function monitored to eliminate product scrap or waste.

Easy production line integration - Lamps automatically switch on and off with the production line. - Production interlock.

Easy maintenance and troubleshooting - Pullout control board eases service and component change. If any section of the UV curing systems fails, a front panel indicator identifies the cause. A fault can signal other production equipment. Multiple power supplies can be interconnected with a simple communication bus to provide common control and fault indication.

Electrodeless Bulb

Long bulb lifetime - 300 watt/inch mercury bulbs are guaranteed to last a minimum of 8,000 hours. Most users report lifetimes well in excess of warranty period.

Rapid start and restart - Eliminates requirement for shutters and associated shutter mechanisms.

Less heat to substrate - Optimized bulb fill to give maximum ultraviolet output with minimum infrared heat to substrate.

Reduced maintenance - Long life means fewer changes and bulbs simply snap in and out requiring minimal operating downtime.

Full cure width maintained throughout bulb life - No blackening at bulb ends; therefore, no decrease in cure width over time.

Popular Bulb Spectra Available Different spectral output bulbs enable users to optimize UV wavelength with the reactive sensitivity of chemistry being used and the desired properties of the end product. Simply swap the bulb type in the irradiator with no change to the power supply. Additives in the bulb create the different spectral distributions.

Because there are no electrodes in the bulb, the bulb will have long term output stability and long life. Consequently, Fusion UV bulb life guarantees exceed all other medium-pressure lamps. The standard bulb spectra are available: “H” for clear-coats and varnishes; “D” for inks and thick coatings or adhesives; and “V” for white basecoats, through laminating materials and in other specialty applications.

Specifications

Stock Number	4774
Sort	0
