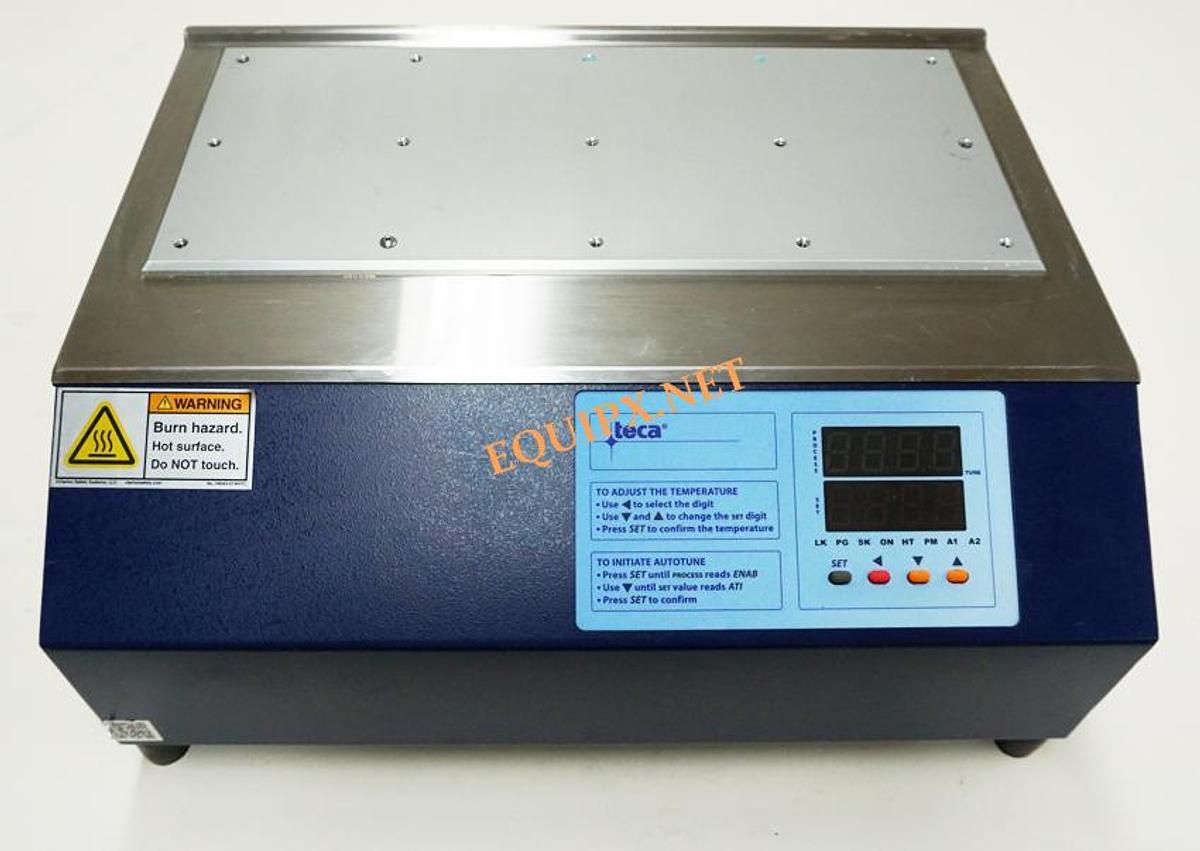

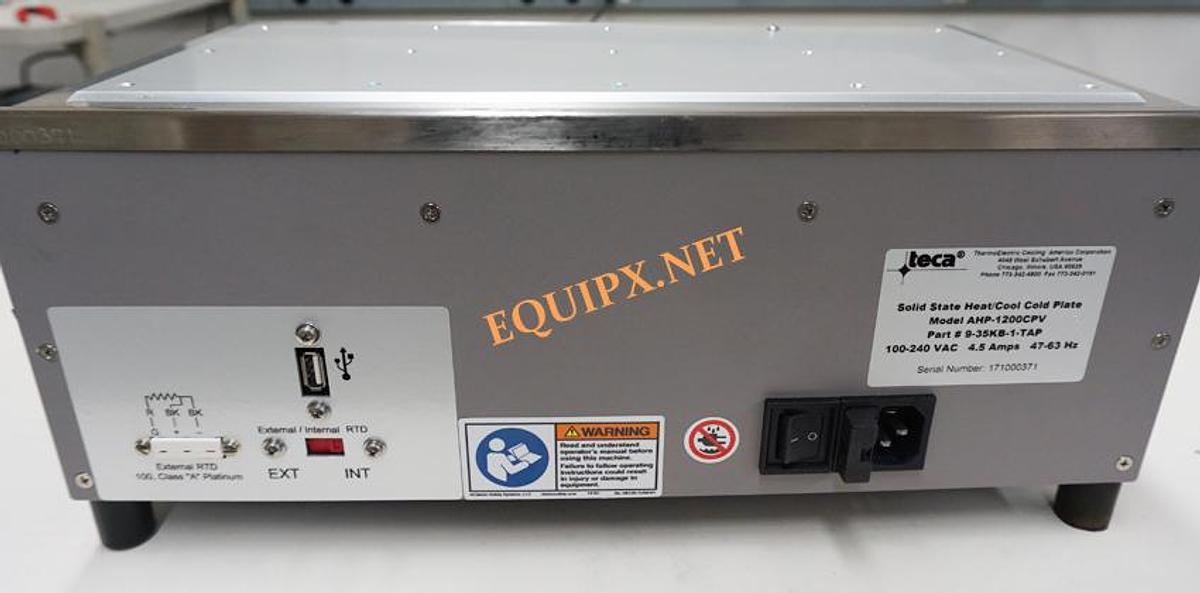

TECA AHP-1200CPV Temp range -20C to +90C Peltier cooled Programmable hot/cold plate
TECA AHP-1200CPV Temp range -20C to +90C Peltier cooled Programmable hot/cold plate
$4,900 (USD)
or
Call (408) 209-9278
Description
Part no. 9-35KB-1-TAP
Features:
• Cools and heats (-20 °C to 90 °C)
• Precision machined anodized aluminum cold plate surface with 6-32 inserts
• Stainless steel threaded inserts available (standard & custom patterns)
• Easy to clean stainless steel apron
• Integral PWM temperature controller
• 100-240 VAC universal input
• Low-profile design with ergonomic sloped front
• PWM controlled fan for quieter operation
• Weighs less than 30 lbs. (13.6 kg)
• Operating ambient temperature range of 0 °C to 50 °C
• Compact bench top unit, 11.2” X 15.1” footprint
• Virtually maintenance-free operation
• Painted Enameled stainless steel exterior housing
• Many accessories available
• Conforms to UL 61010-1 & 61010-2-010
• Certified to CSA STDS C22.2 # 61010-1 & 61010-2-010
• FCC 47CFR PT 15: 2019; IEC 61326-1
Controller Features:
• Integral “tunable” PWM temperature control
• PWM, Bi-directional temperature control
• 4 Temperature zone with 4 independent PID settings
• Multi-segment ramp and soak programmable
• Internal RTD sensor
• Remote Sensibility™ switchable to exterior accessory RTD sensor
• USB Communication with easy to use software
• Labview VI examples
Features:
• Cools and heats (-20 °C to 90 °C)
• Precision machined anodized aluminum cold plate surface with 6-32 inserts
• Stainless steel threaded inserts available (standard & custom patterns)
• Easy to clean stainless steel apron
• Integral PWM temperature controller
• 100-240 VAC universal input
• Low-profile design with ergonomic sloped front
• PWM controlled fan for quieter operation
• Weighs less than 30 lbs. (13.6 kg)
• Operating ambient temperature range of 0 °C to 50 °C
• Compact bench top unit, 11.2” X 15.1” footprint
• Virtually maintenance-free operation
• Painted Enameled stainless steel exterior housing
• Many accessories available
• Conforms to UL 61010-1 & 61010-2-010
• Certified to CSA STDS C22.2 # 61010-1 & 61010-2-010
• FCC 47CFR PT 15: 2019; IEC 61326-1
Controller Features:
• Integral “tunable” PWM temperature control
• PWM, Bi-directional temperature control
• 4 Temperature zone with 4 independent PID settings
• Multi-segment ramp and soak programmable
• Internal RTD sensor
• Remote Sensibility™ switchable to exterior accessory RTD sensor
• USB Communication with easy to use software
• Labview VI examples
Specifications
| Stock Number | 4793 |
| Sort | 0 |
