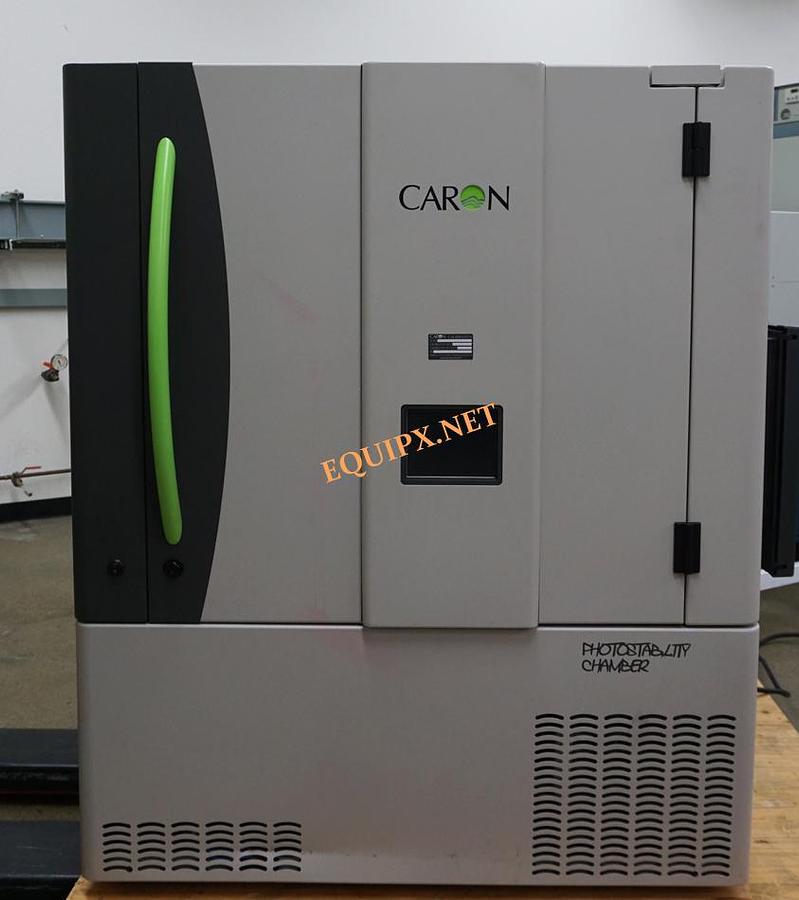

Caron 6540-1 Photostabiity test chamber

PHOTOSTABILITY CHAMBERS

Models: 6540-10 / 6545-10

Modes: 6540-1 6545-1 6540-2 6545-2 6540-3 6545-3

Lamp Type, UVA Fluorescent, near UV (black lamp) Lamp Type, VIS Fluorescent, cool white (ISO 10977 compliant)

Light Detectors UVA and Visual, calibrated UVA Light Intensity, Typical 20 W/m2 2-30 W/m2 VIS Light Intensity, Typical 20 klux 2-35 klux

Lamps Dimming n/a 3-100%

Typical Time Required to Reach ICH Recommendation 10 hrs. 7 hrs. of 200 W-hr/m2 Typical

Time Required to Reach ICH Recommendation 60 hrs. 35 hrs. of 1.2 million lux-hr

Light Uniformity UVA: ±10% VIS: ±15% UVA: ±10% VIS: ±10%

Temperature Range 10°C to 35°C (lights on)

Temperature Control ± 0.2°C

Temperature Uniformity ± 2.5°C (lights on)

Humidity Range n/a 40-70% RH n/a 40-70% RH n/a 40-70% RH Humidity Control n/a ± 3% n/a ± 3% n/a ± 3%

# of Shelves, Size Two (2) Sliding, 26.0” W x 23.1” D x 8” H (660mm W x 587mm D x 203mm H) each Usable Shelf Area, Each 19.0” x 23.0” (483mm x 584mm)

Usable Shelf Area, Total 6.1 ft2 (0.56m2) - 76% of total shelf Maximum Weight per Shelf 22 lbs. (10 kg)

Interior Surfaces Interior Construction Stainless Steel Internal Volume 10.5 cu. ft. (296L), includes lamp space Exterior Dimensions 37.6” W x 30.2” D x 45.0” H (955mm W x 767 mm D x 1133 mm H) w/leveling feet Interior

Dimensions 26.9” W x 24.0” D x 28.0” H (683mm W x 610mm D x 711mm H)

# of Access Ports Two (2), 1.75” W x 2.0” H (44mm W x 51mm H) each

Shipping Weight 550 lbs. (660 lbs. with export crate)

Electrical 115V, 60 Hz, 15A 208/230V, 60 Hz, 15A 230V, 50 Hz, 1
