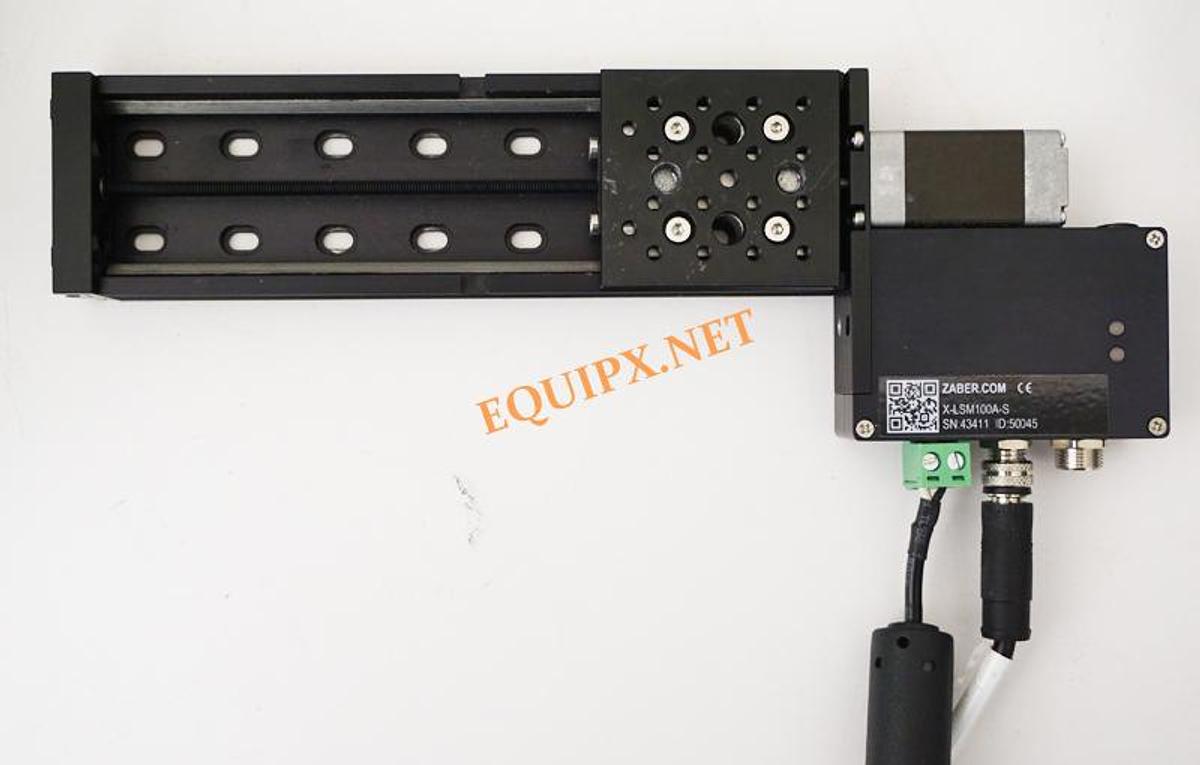

Zaber X-LSM100A-S Motorized linear stage with 100mm travel
Zaber X-LSM100A-S Motorized linear stage with 100mm travel
$1,150 (USD)
or
Call (408) 209-9278
Description
X-LSM100A-S Specifications
| Specification | Value | Alternate Unit |
|---|---|---|
| Microstep Size (Default Resolution) | 0.047625 µm | |
| Built-in Controller | Yes | |
| Travel Range | 101.6 mm | 4.000" |
| Accuracy (unidirectional) | 35 µm | 0.001378" |
| Repeatability | < 3 µm | < 0.000118" |
| Backlash | < 12 µm | < 0.000472" |
| Maximum Speed | 26 mm/s | 1.024"/s |
| Minimum Speed | 0.000029 mm/s | 0.000001"/s |
| Speed Resolution | 0.000029 mm/s | 0.000001"/s |
| Encoder Type | None | |
| Peak Thrust | 55 N | 12.3 lb |
| Maximum Continuous Thrust | 25 N | 5.6 lb |
| Communication Interface | RS-232 | |
| Simplifying Control Protocols. Protocol Reference Manuals are provided on the Support Tab of our website." href="https://www.zaber.com/glossary#comm-protocol" style="box-sizing: border-box; margin: 0px; padding: 0px; color: #a7191c; text-decoration: none; background-color: transparent; transition: all 0.3s linear 0s;">Communication Protocol | Zaber ASCII (Default), Zaber Binary | |
| Data Cable Connection | Locking 4-pin M8 | |
| Maximum Centered Load | 100 N | 22.4 lb |
| Maximum Cantilever Load | 300 N⋅cm | 424.8 oz⋅in |
| Guide Type | Needle roller bearing | |
| Vertical Runout | < 18 µm | < 0.000709" |
| Horizontal Runout | < 18 µm | < 0.000709" |
| Pitch | 0.04° | 0.698 mrad |
| Roll | 0.04° | 0.698 mrad |
| Yaw | 0.04° | 0.698 mrad |
| Stiffness in Pitch | 55 N⋅m/° | 317 µrad/N⋅m |
| Stiffness in Roll | 52.5 N⋅m/° | 332 µrad/N⋅m |
| Stiffness in Yaw | 85 N⋅m/° | 205 µrad/N⋅m |
| Power Supply | 24-48 VDC | |
| Power Plug | 2-pin Screw Terminal | |
| Maximum Current Draw | 350 mA | |
| Linear Motion Per Motor Rev | 0.6096 mm | 0.024" |
| Motor Steps Per Rev | 200 | |
| Motor Type | Stepper (2 phase) | |
| Motor Rated Current | 600 mA/phase | |
| Inductance | 3.5 mH/phase | |
| Default Resolution | 1/64 of a step | |
| Mechanical Drive System | Precision lead screw | |
| Limit or Home Sensing | Magnetic hall sensor | |
| Manual Control | No | |
| Axes of Motion | 1 | |
| LED Indicators | Yes | |
| Mounting Interface | M3 and M6 threaded holes and M4 threaded center hole | |
| Stage Parallelism | < 25 µm | < 0.000984" |
| Operating Temperature Range | 0 to 50 °C | |
| RoHS Certificate of Conformance." href="https://www.zaber.com/glossary#rohs" style="box-sizing: border-box; margin: 0px; padding: 0px; color: #a7191c; text-decoration: none; background-color: transparent; transition: all 0.3s linear 0s;">RoHS Compliant | Yes | |
| CE Compliant | Yes | |
| Vacuum Compatible | No | |
| Weight |
