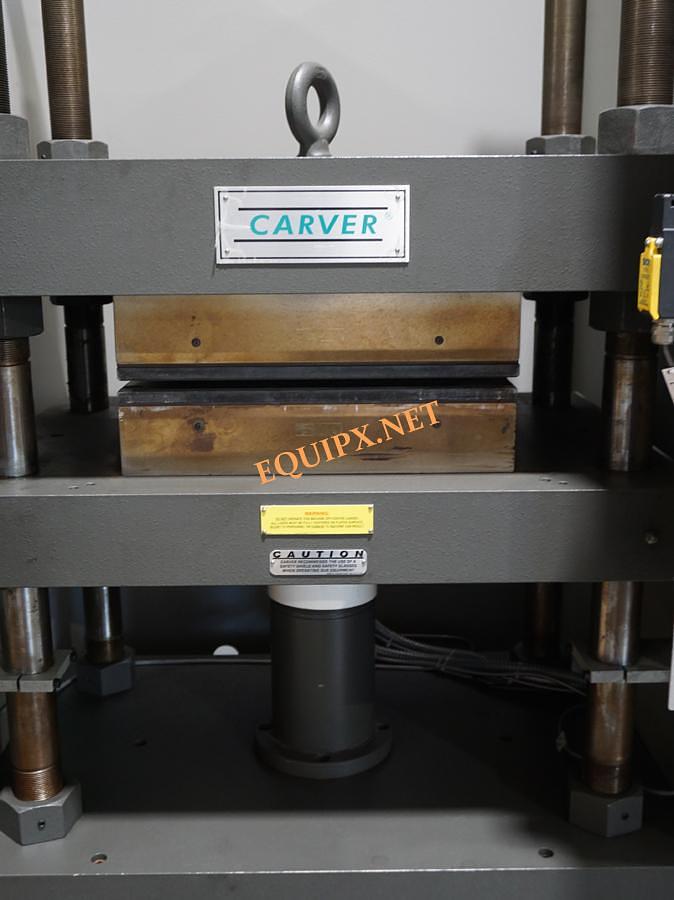

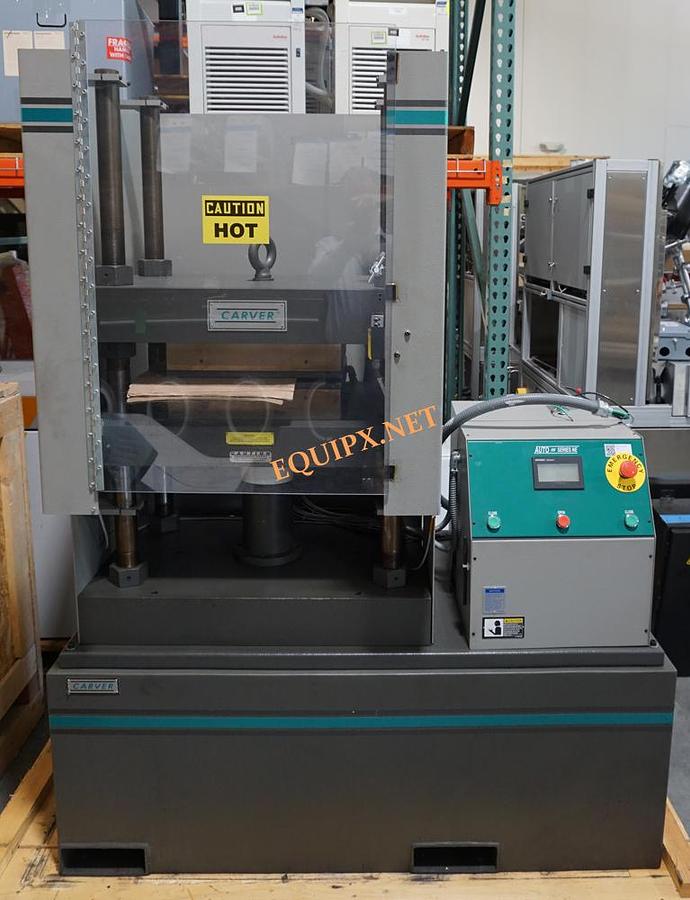

Carver 5401 AutoFour 4815-PL/H 48 Ton Automatic Hydraulic Heated Laboratory Press with 15x15 heated platens

Carver 5401 AutoFour/4815-PL, H Automatic Hydraulic Heated Laboratory Press (48 Ton)

Carver Auto Series Plus automatic laboratory presses feature a large 7” color touch screen operator interface, enhanced platen temperature control with auto-tuning, ramp heating capability, strorage of up to 250 recipes and real-time trending of force and temperature. Optional features include seven day timer for auto platen heat-up, data logging for cycle parameters, and access to logged data through Wi-Fi. 48 ton models include a wrap-around floor stand.

Auto Series Plus press models are available with 15 to 48 tons of clamping force and 6" x 6" to 19” x 19” platens. These benchtop presses are used in quality control and research and development for test sample preparations, destructive testing, molding, laminating and fluid extraction. See below table for press specifications.

Large 7" color touch screen

Storage of up to 250 recipes

Enhanced platen temperature control with auto-tuning

Ramp heating capability

Real-Time trending of force and temperature

Seven day timer for auto platen-up (optional)

Datalogging of cycle parameters (optional)

Access to logged data through WiFi (optional)

Automatic Air/Water Cooling (optional)

Access Door Clear, impact resistant polycarbonate door permits observation and serves a safety shield to protect the operator

Threaded Rods Permits adjustment of Daylight opening

Heated Platens With digitally controlled cartridge heaters (optional)

Proximity Switch For adjustable slow close position

Heavy Duty Bolsters Provide maximum rigidity

Hydraulic Cylinder Delivers up to 48 tons of force

Unitized Base Makes installation and set-up easy

Full Touch Screen Interface For precise, programmed process control

Dual Operator Buttons With "anti-tie-down" feature requires two-handed operation for operator safety

Hydraulic Power Unit Completely self-contained, electrically operated

Model	Catalog Number	Max. Clamp Force, Tons (lb)	Heated Platens	Platen Size (in)	Ram Stroke (in)	Daylight Opening (in)	Overall Size W x D xH (in)	Weight (lb)	Voltage Supply
AutoFour/4815-PL,H	5401	48 (96,000)	Yes	15 x 15	4	0 to 15	55 x 36 x 72	3,384	230 1 phase
