• Chamber Dimensions: 21.5" W x 20.5" D x 16.5" H
• Material: 304 Stainless Steel
Static Dissipative PVC
• Opening Dimensions: 20.25" W x 14.5" H
• Number of Chambers: 1
• Model: Smart®
• Design: Benchtop
• Chamber Width: 21.5"
• Chamber Depth: 20.5"
• Chamber Height: 16.5"
• Humidity Control: Chamber Level
• Door Design: Leak Tight
• Unit of Measure: EA
• Marks & Listings: CE, UL, ULC
• Electrical Specifications: 120/240 V, 0.25 A, 30 W, 60, 1 Ph
• Weight, Product: 45 lb
• Dimensions, Product: 22" W x 21" D x 17" H

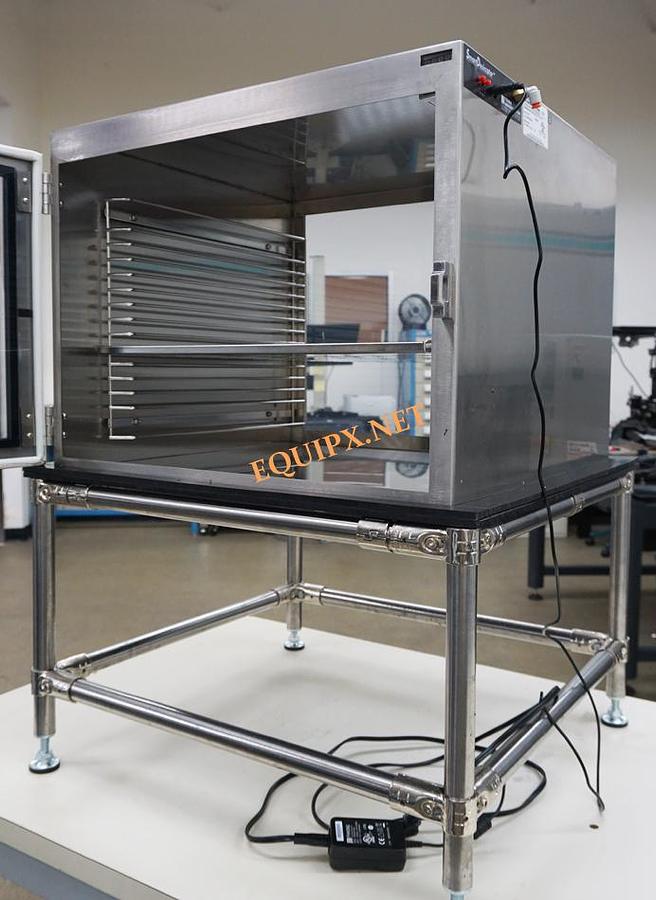

Includes Stand
Includes 1 removable slotted shelf
Available ISO Ratings: ISO 7, ISO 8Smart® gas-purge desiccator cabinet automates low-humidity control down to 0% RHIdeal for moisture-sensitive materials: microelectronics, medical devices, pharmaceutical powdersGas control system auto-adjusts nitrogen purge to maintain sub-ambient humidity set pointFast-acting and economical; maintains below 10% RH with 78% less nitrogen than manual flow meterFully integrated turnkey system takes seconds to install and programSmart® nitrogen desiccator cabinet features automated RH control that toggles nitrogen inflow (binary on/off) for fast setpoint response. Minimizes moisture and oxygen related degradation to optimize yields.Mini LED display and built-in RH sensor simplifies installation. Operation requires only one gas line and one low voltage power connection.Cabinet Design:Durable stainless steel construction is suitable for heavy-duty, sterile, and ESD-safe applications.CleanSeam™ design features fully-welded single piece enclosure with seamless interiors to eliminate hard-to-clean cracks and crevices that can harbor contaminants. The continuous-seam welds are ground smooth to simplify cleaning and sterilization.Automatic relief/bleed (RB) valves continuously bleed off excess internal gas in only one direction. Helps maintain a slight positive pressure inside the desiccator cabinet without allowing contaminants inside.Built-in shelf rack provides high-capacity, organized storage (removable shelves sold separately).Door Design:Stainless steel door frame increases structural rigidity for a tighter seal and longer service life.Santoprene® "e"-shape non-outgassing rubber gasket firmly compresses to eliminate leaks. The one-piece resilient rubber gasket maintains its shape after compression and won't flatten, warp, crack, or degrade like ordinary foam gasket. Gasket is also mechanically attached to the door frame to avoid adhesive failure common with gasket tapes.Heavy-duty lift latches prevent metal-on-metal scraping common with rotary latches; chrome-plated included standard; upgrade to all-stainless steel (304 or 316) to minimize scratching, corrosion and contamination resulting over time that can occur with chrome-plated latches.Durable 304 stainless steel hinges eliminate corrosion, flaking, and contamination that commonly occur with ordinary chrome-plated hinges.
