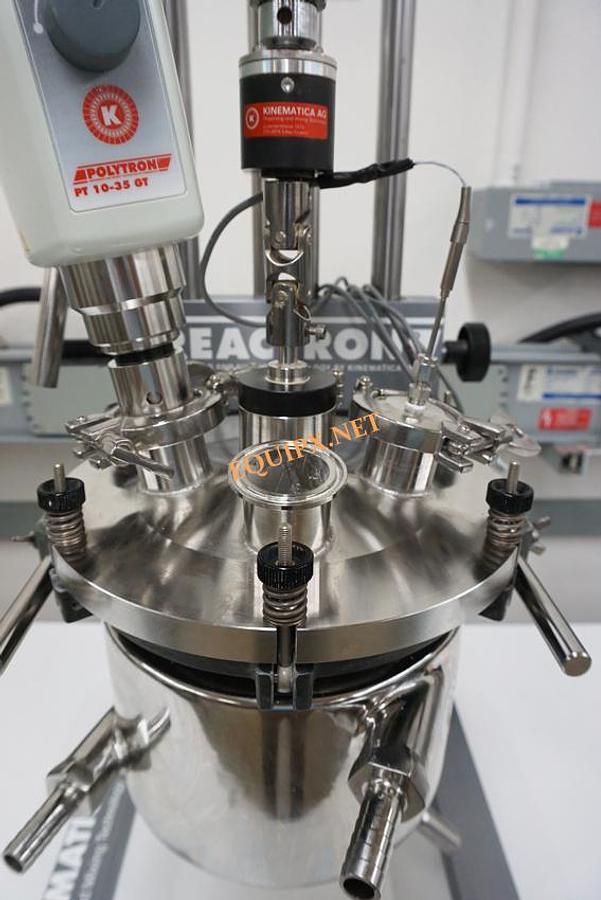

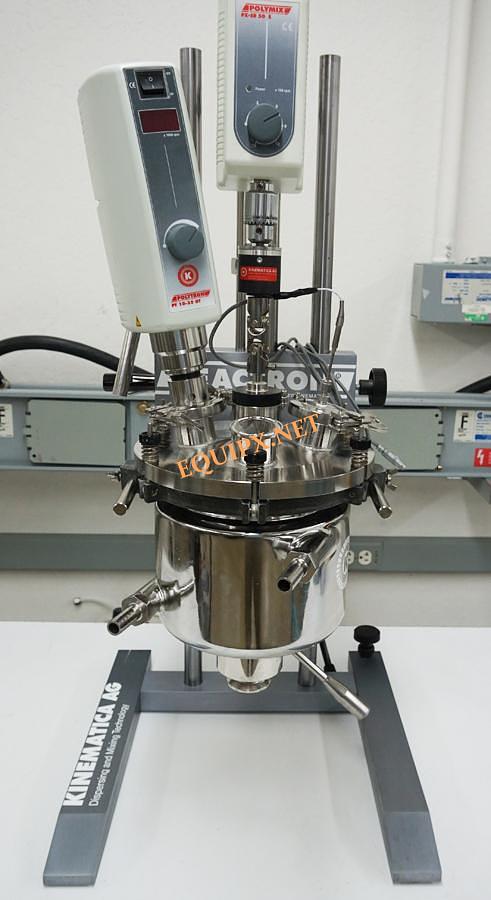

Kinematica Reactron RT 2 liter Benchtop Reactor with stainless pressure vessel

Kinematica Reactron RT 2 liter Benchtop Reactor with stainless pressure vessel

$12,950 (USD)

Description

Includes

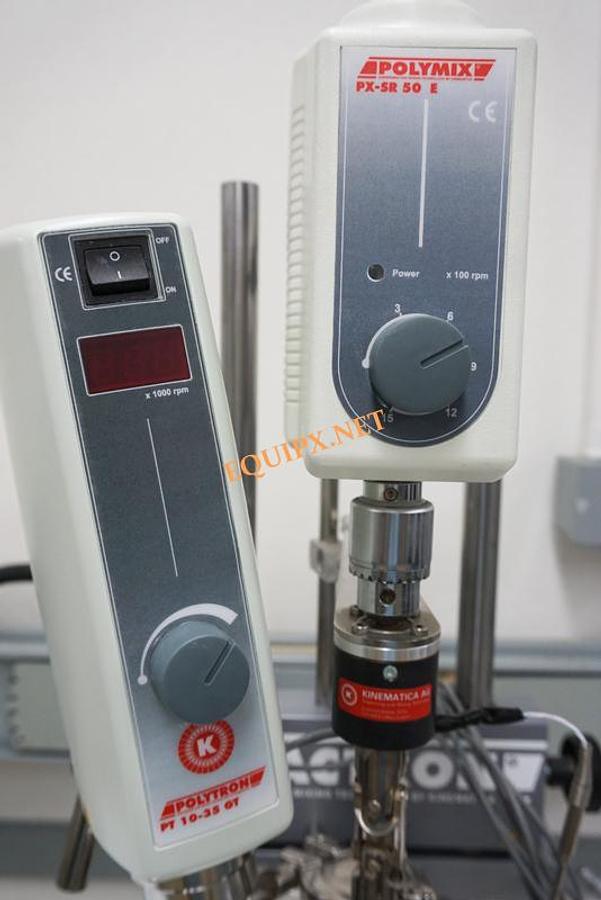

Polytron PT 10-35 GT turrax mixer

Polymix PX-SR 50 E agitator drive

Jacketed vessel with useable capacity 2 liter made from STAINLESS STEEL, vessel cover made from stainless steel 316L with four clamp connections (Tri-clamp 1 1 / 2“) and sealed centrical lead-through fitting for stirrer tool, telescopic stand, POLYMIX® digital overhead stirrer with maintenance free gearbox 1 : 5 (high torque) and anchor stirrer. Upgrade options and complete accessory range on request.

Modular construction

– Mixing vessels, single wall or double wall: for the optimum application temperature
– Mixing vessels in borosilicate, glass or steel: when the vacuum is critical
– Range of dispersers drives and generators: give you the flexibility you want
– Cleaning and dismantling: is child’s play with the integrated (electro-) telescopic stand
– Simple change of aggregate

The standard configuration contains:

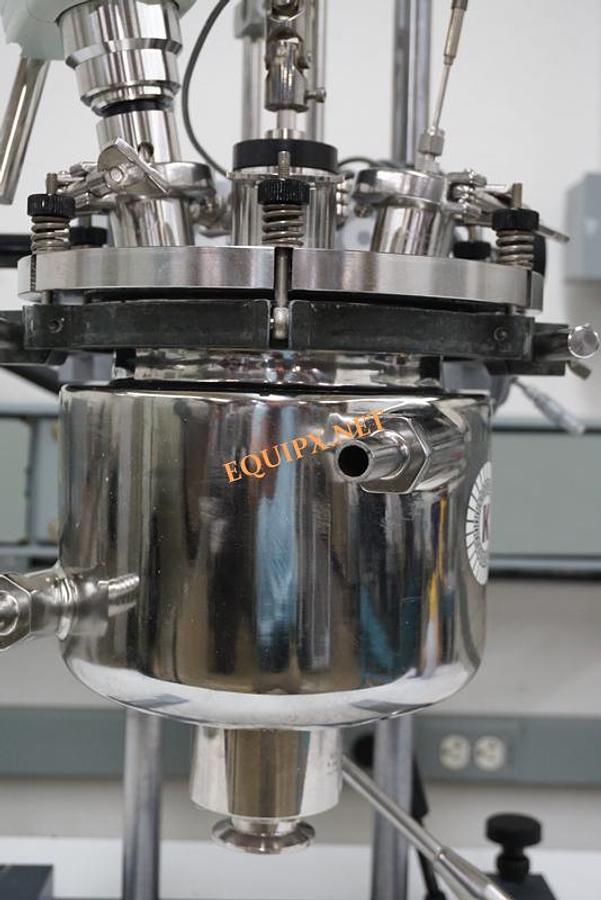

  • Stainless steel vessel, 2 liters, with heating / cooling jacket
  • Stainless steel vessel lid with tri clamp 1.5" connections and sealed central pass-through for the stirring element
  • POLYMIX® PX-MT stirrer with transmission and anchor stirrer
  • Telescopic stand
  • Design and possible variants:
  • Minimum operating vol. (stirring unit) 450 ml
  • Minimum operating vol. (dispersing unit) 1100 ml
  • Maximum operating volume 2000 ml
  • Maximum temperature 90°C (higher possible upon request)
  • Vacuum 25 mbar to 5 bar Stirrer PX-MT, 50-2000 rpm
  • Dispersing unit Based on your application specification
  • Travel telescopic stand 250 mm
  • Dimensions (WxHxD) mm 340 x 300 x 950
  • Weight 20 kg
  • Parts with product contact 1.4435 / 316L, Viton


  • Specifications
