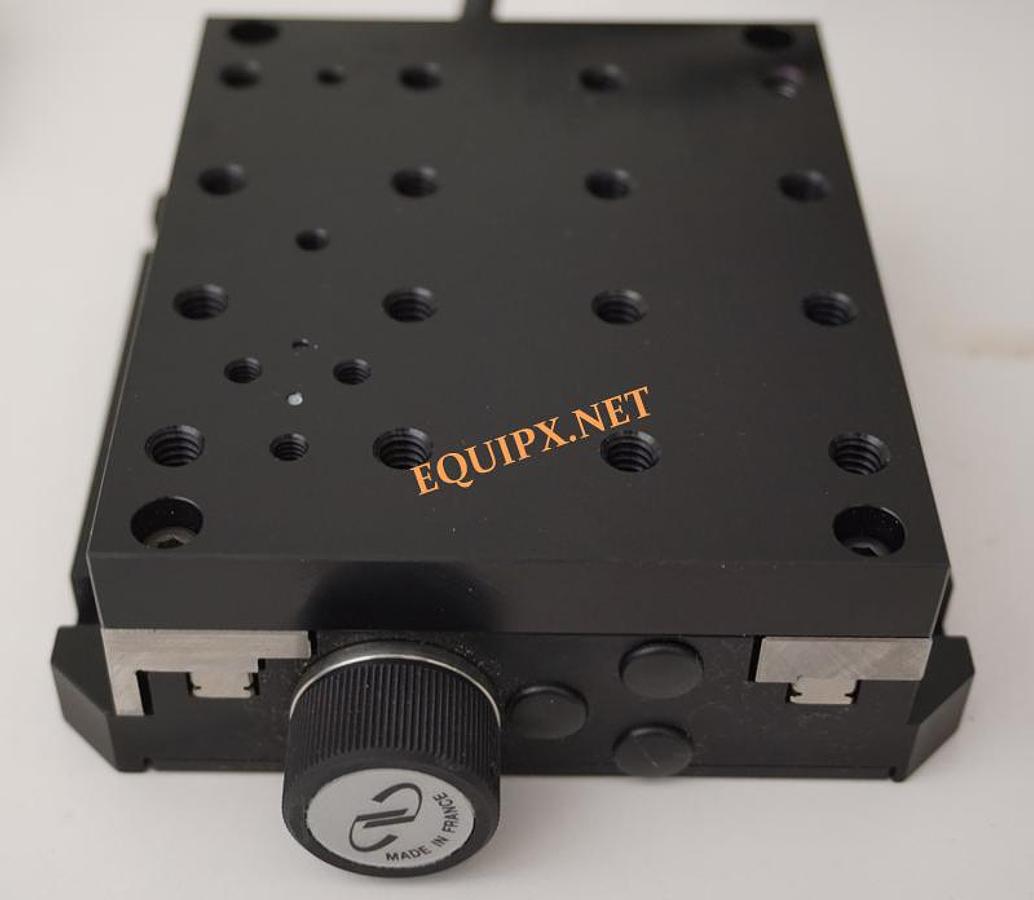

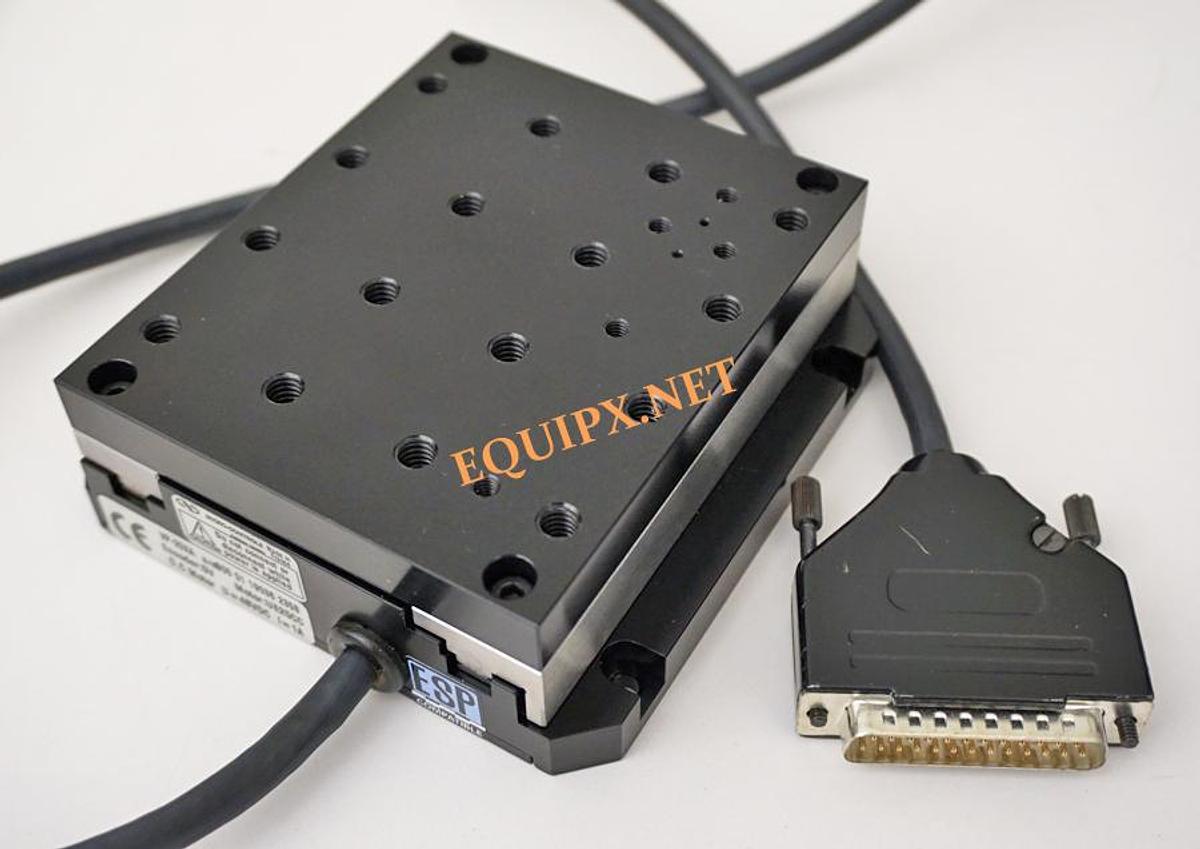

Newport VP-25XA high precision motorized linear stage with 25mm range, 5V encoder and UE25CC motor
Newport VP-25XA high precision motorized linear stage with 25mm range, 5V encoder and UE25CC motor
$4,450 (USD)
Description
The VP-25XA Precision Compact Linear Stage provides high-precision positioning performance in an ultra-compact form factor. A low friction ball screw drive provides robust, reliable performance with excellent thrust and minimal heat induced position drift. Combined with excellent minimum incremental motion of 0.1 μm and travel of 25 mm, the VP-25XA is ideal for applications requiring fine manipulation of small parts such as alignment of optical fibers. Featuring a manual adjustment knob, VP-25XA stages are versatile enough to handle automated and non-automated tasks alike. Typical applications include fiber alignment, micro-assembly, and micromachining.
Backlash-free Ballscrew
The VP includes a preloaded, backlash-free ball screw, which provides smooth motion and outstanding bi-directional repeatability.
DC Motor for Smooth, High Speed Motion
DC Motors are best characterized by their high speeds, smooth motion, good efficiency and a high power/weight ratio. Precise closed-loop servo positioning and speed control on these VP stages is achieved with a built-in linear encoder and included tachometer. A manual adjustment knob also adds to the utility of these stages.
Specifications (2 units available)
Specifications
| Stock Number | 4967 |
