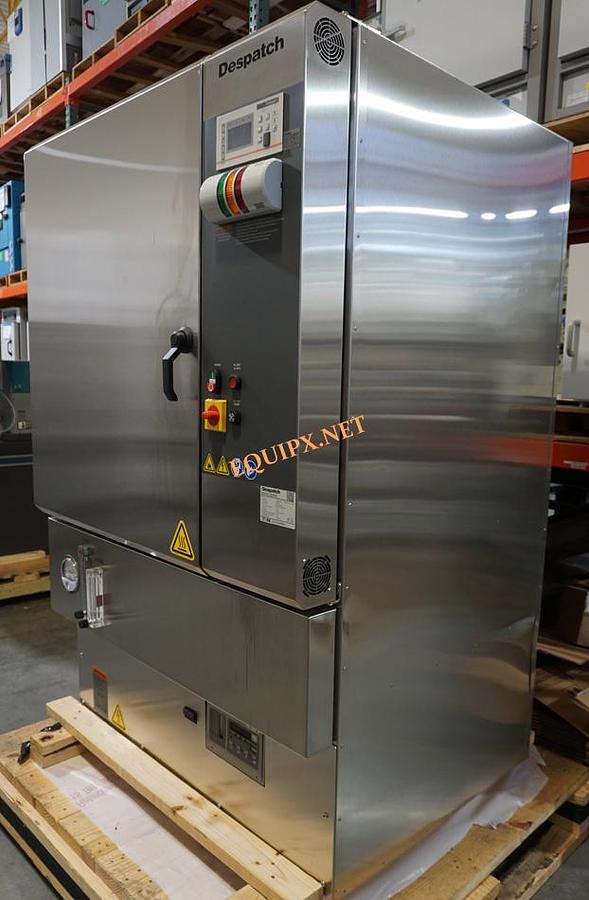

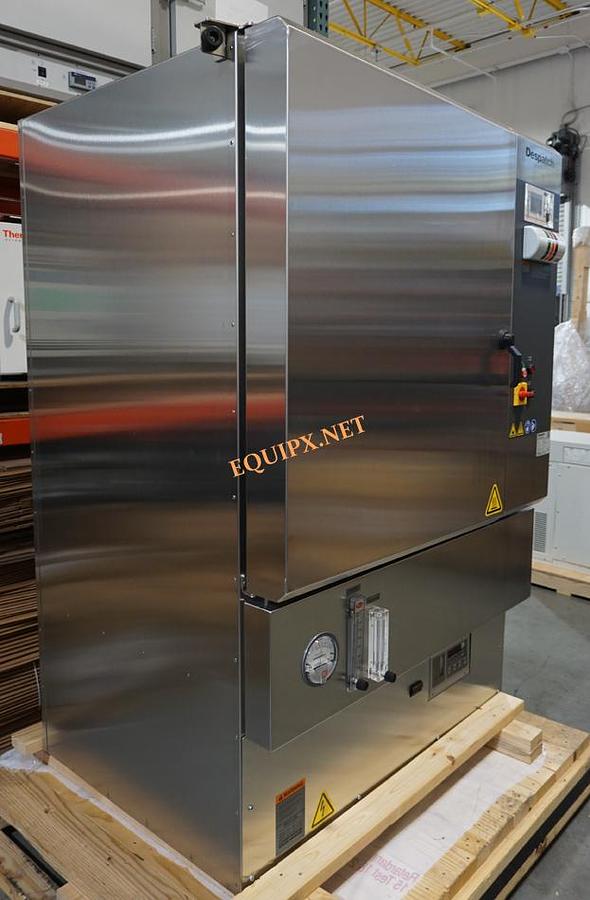

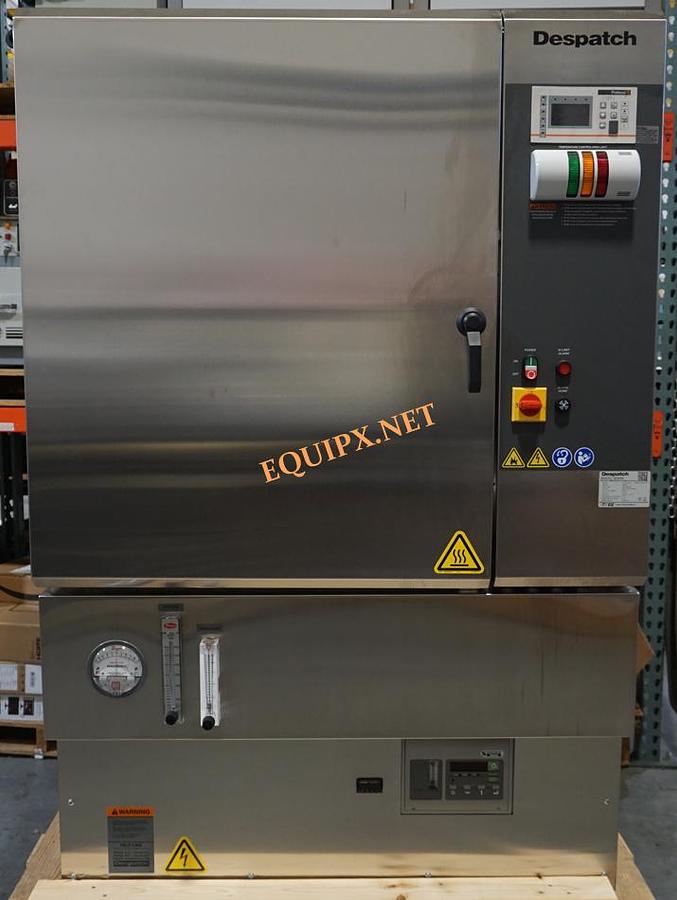

Despatch LCD2-14N-5 HEPA Class 100 clean room oven 350C Protocol 3 programmer

HEPA fitered clean room oven Class 100 or better

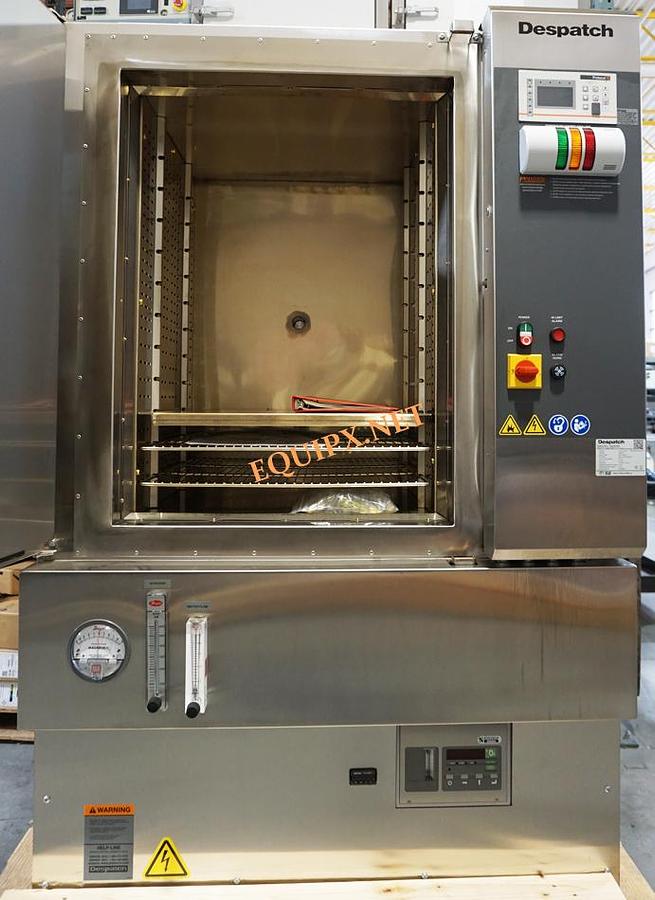

Chamber dimensions 25.5"w x 26"d x 37"h

Protocol 3 with LCD display, integrated data logging and USB port for data export

Max temperature 350C/662F

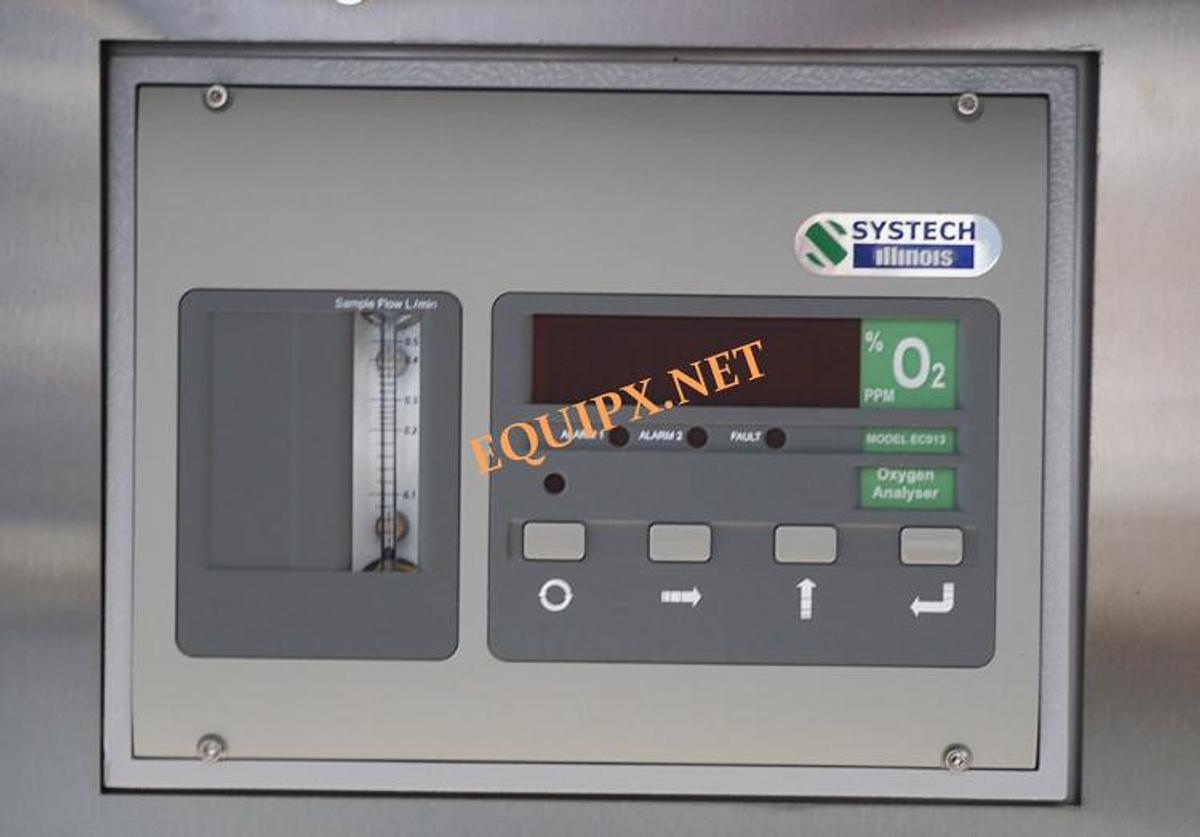

Illinois Instruments %O2 monitor

Nitrogen atmosphere with water cooling coil

208v/3ph/50/60hz 51.6A

2 shelves

New unwrapped HEPA filter included

UL and CE compliant

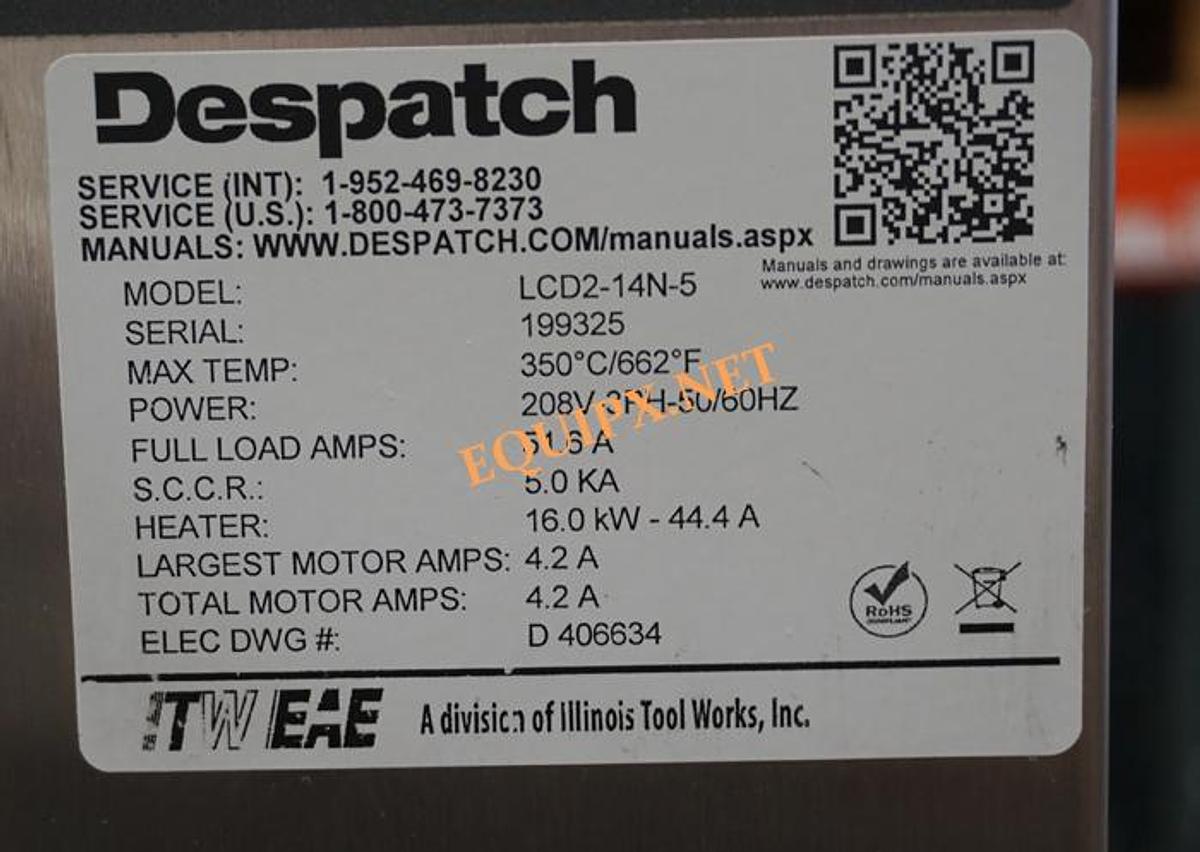

sn 199325

Standard Features:

LCC: 260°C (500°F) maximum temperature

LCD: 350°C (662°F) maximum temperature

Lockable Disconnect Switch on the control panel for easy servicing

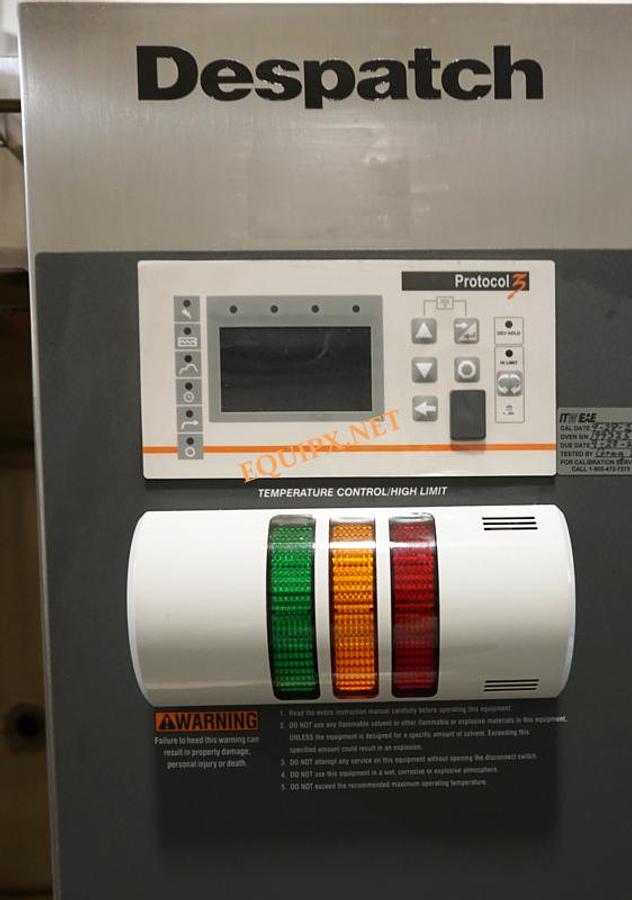

Protocol 3™ control with large LCD display, integrated data logging capabilities and USB port for simple oven set-up and data export

Stainless steel interior with all interior seams continuously welded on the insulation side to protect the work chamber from contamination

Programmable door lock prevents operators from opening oven door when cycle is in process

Door Interlock switch turns off heater when door is open

Recirculated airflow is 100% HEPA (High-Efficiency Particulate Air) filtered for ISO Class 5 (Class 100) operation throughout the process cycle

Magnehelic™ gauge monitors the HEPA filter pressure drop so you know when it is time to replace the filter

Electric door release for ergonomic operation

UL & C-UL Listed open control panel

Modbus communications connection (RS485) for remote monitoring and recording

End of cycle and high limit audible and visual alarm, that can be seen and heard from a distance

Inert Atmosphere

Allows nitrogen (or other inert gas) to be injected into the chamber to lower the oxygen level to prevent oxidation of products. A water cooling coil is provided for rapid cooling. Control of nitrogen flow and water cooling is programmable through the Protocol 3™ controller.

Larger Sizes Available

LCC/LCD2-14 Clean Process Ovens meet the demands of production and large-scale R&D efforts.

Advanced control | Protocol 3™ is a microprocessor-based temperature and hi-limit controller with large LCD display and real-time clock for auto start capability. The LCD display shows temperature readings along with clear, detailed information on oven status. Protocol 3™ features three operating modes for quick and easy operation: Manual mode, Timer mode, and Pro.file mode. The data-logging functionality enables reporting and analyzing and data files can be exported via the controller's USB port. Modbus RS485 communications are included for easy data access.

Remote operation, programming and data logging | The Despatch Protocol Manager network utility software enables the operation of up to 32 Protocol 3™ and/or Protocol Plus controllers from a single, remote PC using RS485 communication.
