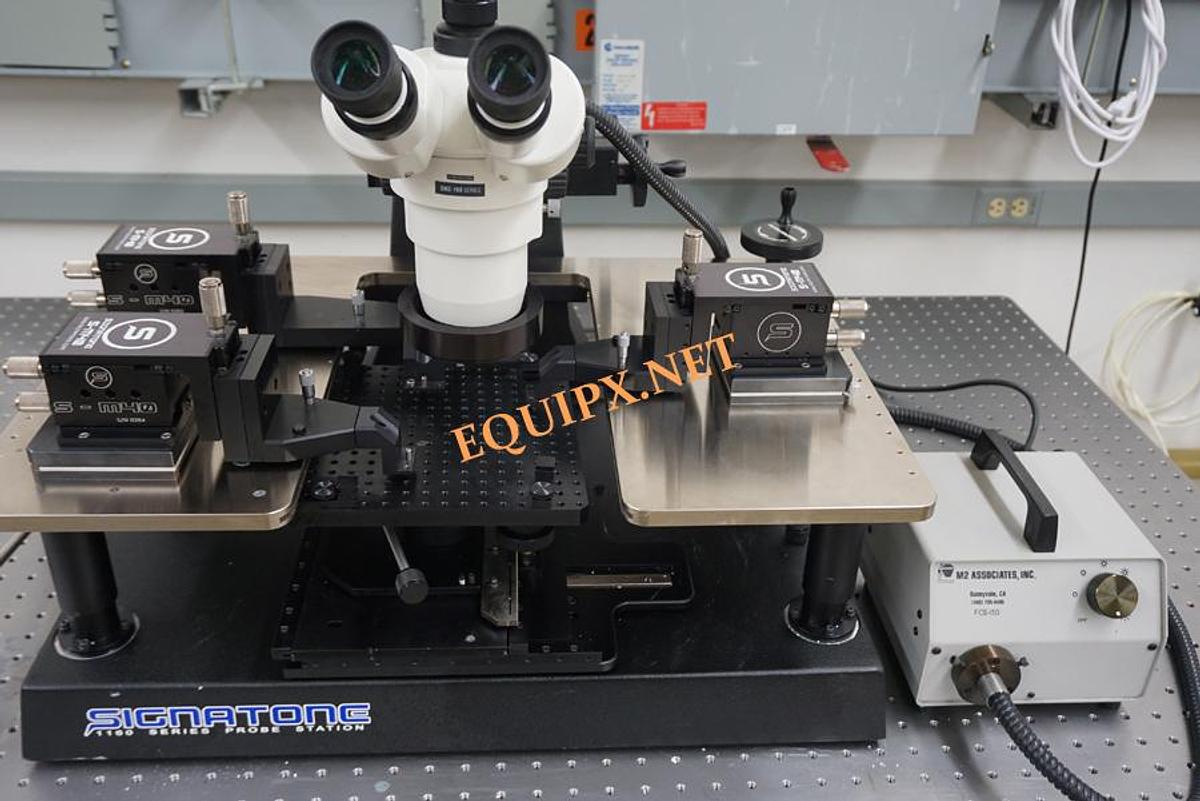

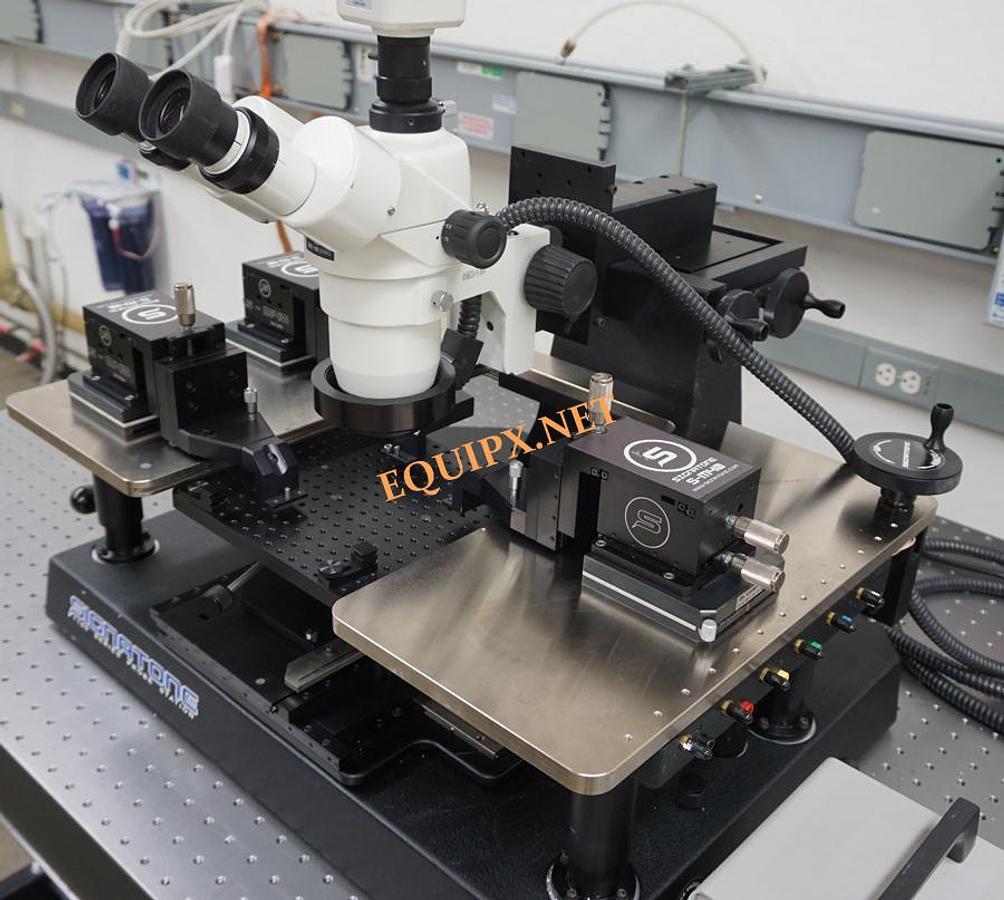

Signatone 1160A-6N manual prober with (3) S-M40 Rf positioners and Olympus microscope with camera
Signatone 1160A-6N manual prober with (3) S-M40 Rf positioners and Olympus microscope with camera
or
Call (408) 209-9278
Description

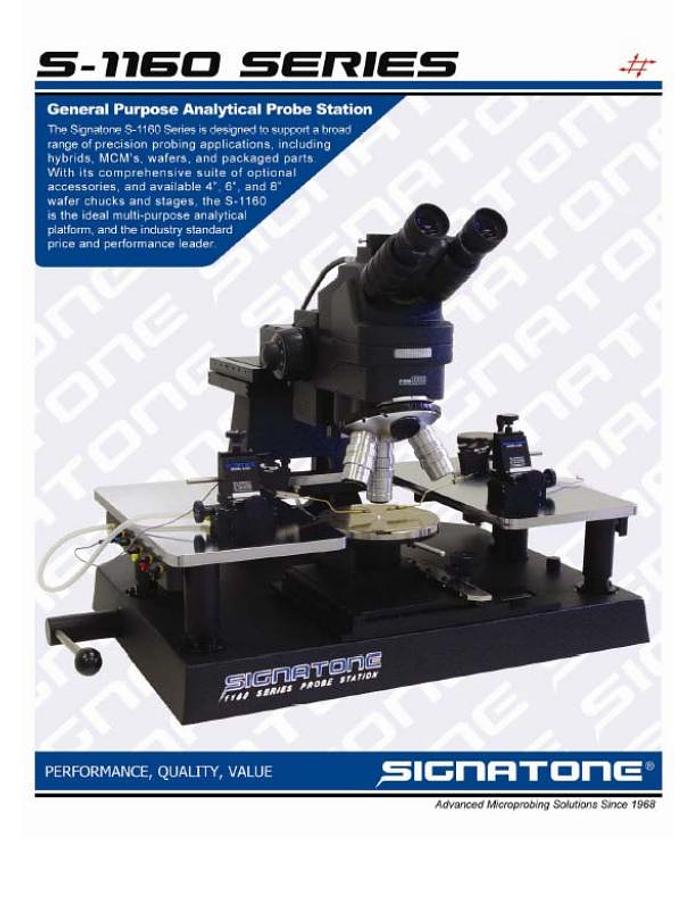

Siognatone 1160A-6N prober
Olympus SMZ trinocular microscope with Moticam 5mp camera
Fiber ring illuminator with power supply
Kinetic Systems 2212-02-14B Benchmate vibration isolation platform

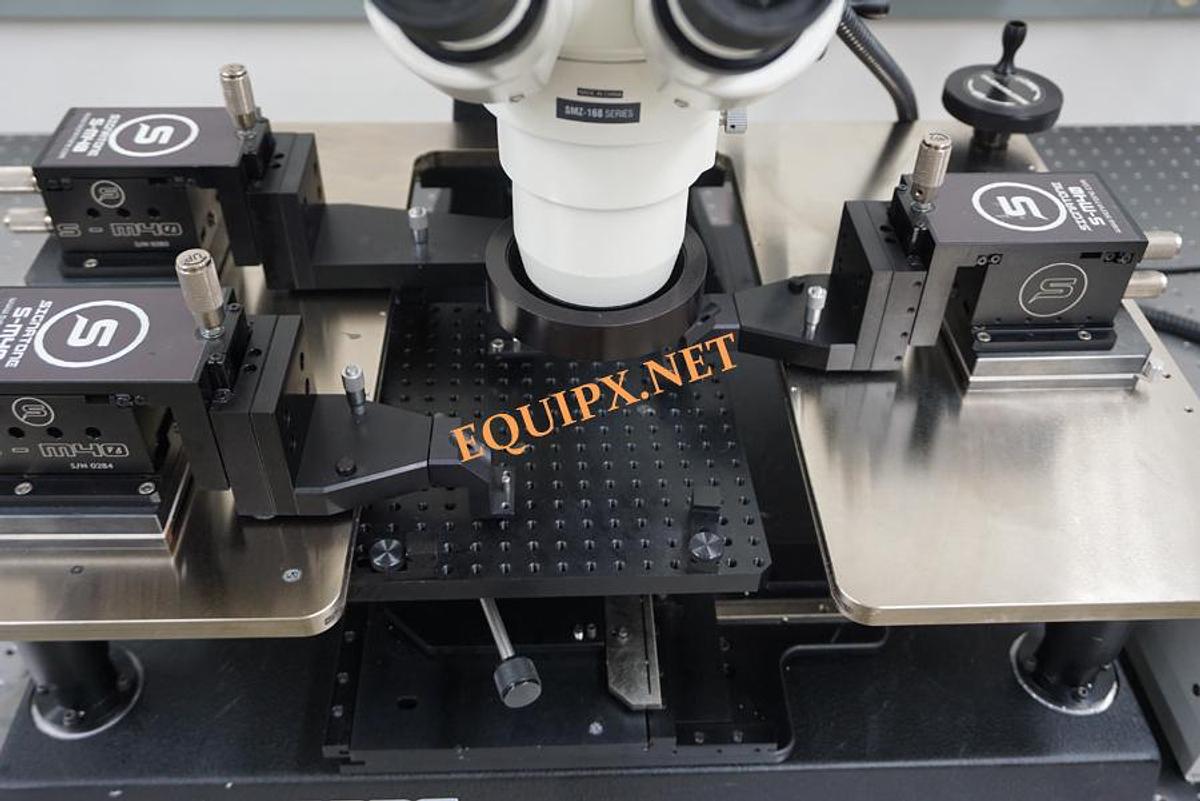

3 Signatone S-M40 positioners with magnetic base
Model S-M40 Travel range X-Y -Z = 25 mm
Planarization range + 7.5° (0.1° resolution)
Feature resolution 2μm
Mounting Switchable Magnetic or Bolt-down Orientation North-South/ East-West
Application Stable base/ allows for accurate probing RF DC to 110 GHz Wedge cards 4-point probing High-current probing
The smooth motion of the X-Y & Z knobs along with the micrometer driven planarization knob makes the S-M40 one of the most popular positioners in the RF and High-power probing markets
Olympus SMZ trinocular microscope with Moticam 5mp camera
Fiber ring illuminator with power supply
Kinetic Systems 2212-02-14B Benchmate vibration isolation platform
ACCURACY 2 MICRON
X-AXIS MOTION 25 mm
Y-AXIS MOTION 25 mm
Z-AXIS MOTION 25 mm
RESOLUTION 40 TPI
CONTROL KNOB IN-LINE
ORIENTATION NORTH SOUTH EAST WEST
MOUNTING BASE STYLE MAGNETIC
PLANARITY SETUP +/- 7,5 Degree
3 Signatone S-M40 positioners with magnetic base
Model S-M40 Travel range X-Y -Z = 25 mm
Planarization range + 7.5° (0.1° resolution)
Feature resolution 2μm
Mounting Switchable Magnetic or Bolt-down Orientation North-South/ East-West
Application Stable base/ allows for accurate probing RF DC to 110 GHz Wedge cards 4-point probing High-current probing
The smooth motion of the X-Y & Z knobs along with the micrometer driven planarization knob makes the S-M40 one of the most popular positioners in the RF and High-power probing markets
Specifications
| Stock Number | 4995 |
| Sort | 0 |
