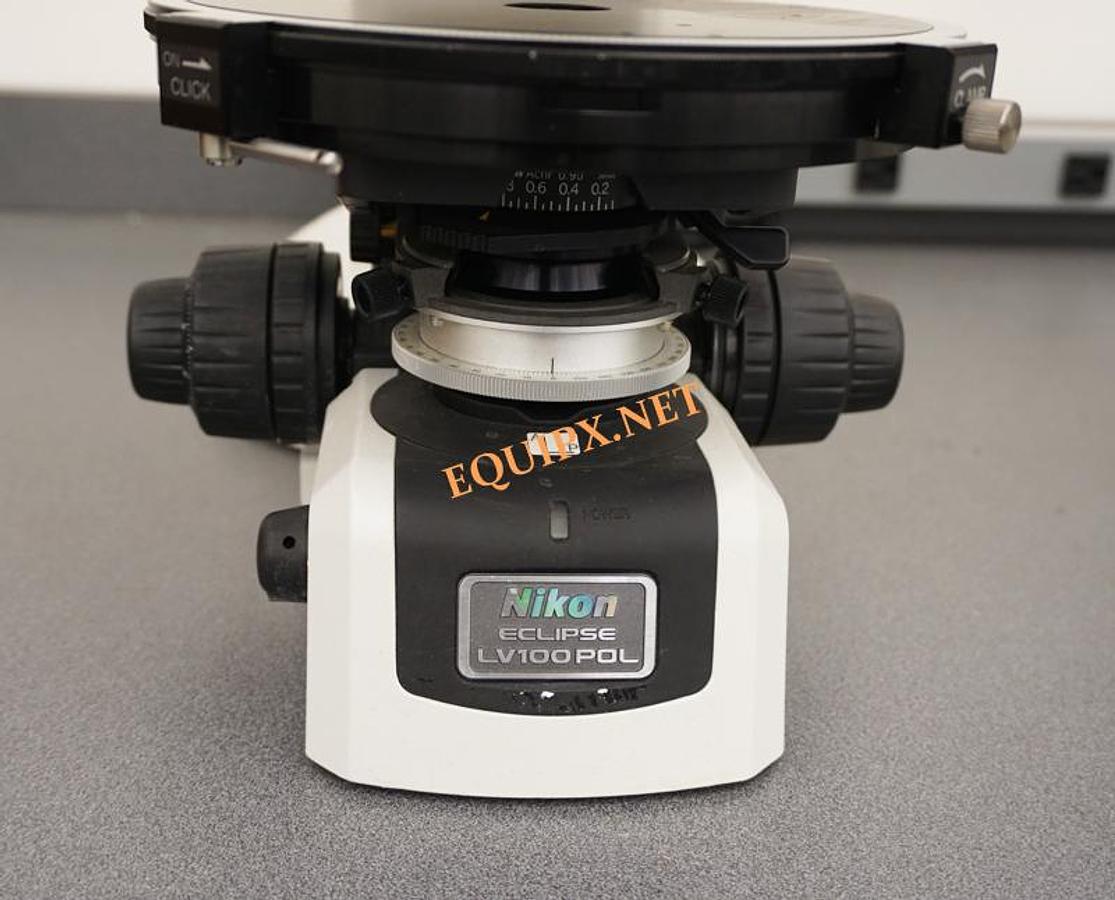

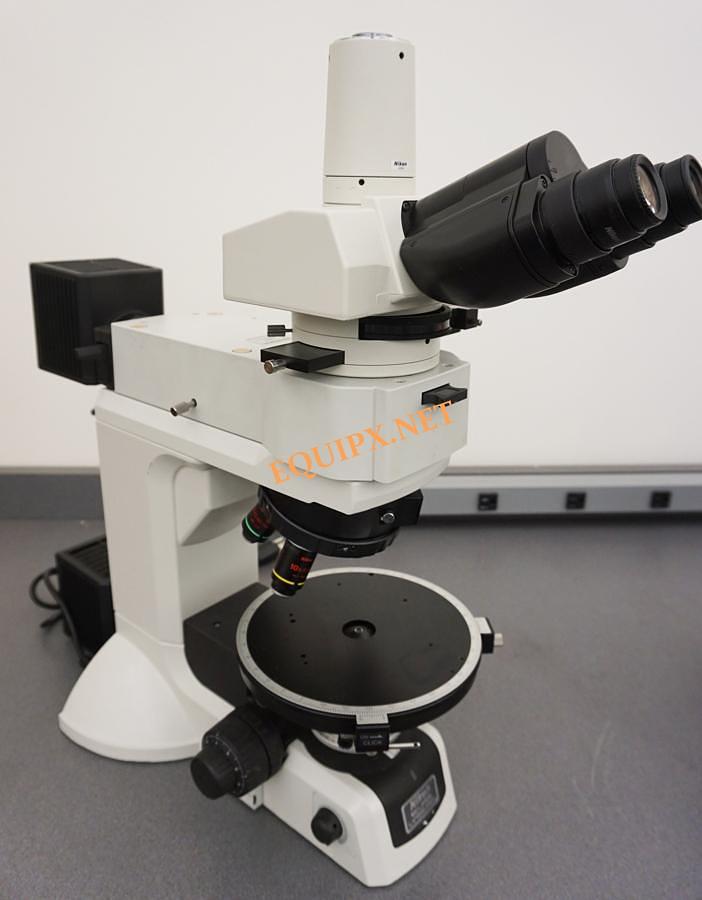

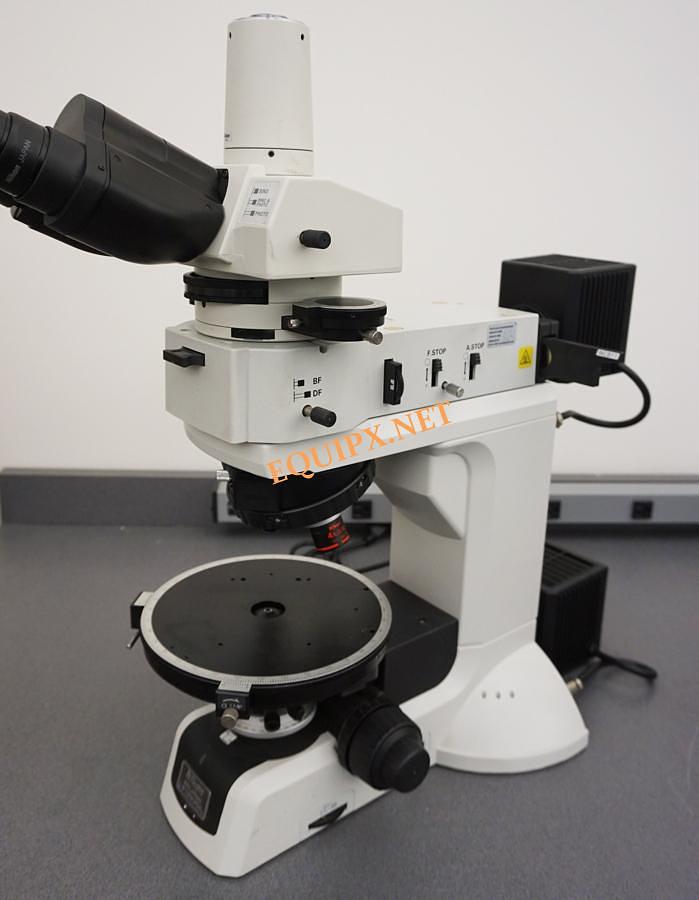

Nikon LV100POL Polarized light microscope
Nikon LV100POL Polarized light microscope
$11,500 (USD)
Description
Top and bottom 12v-50w lamphouses
Intermediate tube with Bertrand lens (focusable) and rotating analyzer

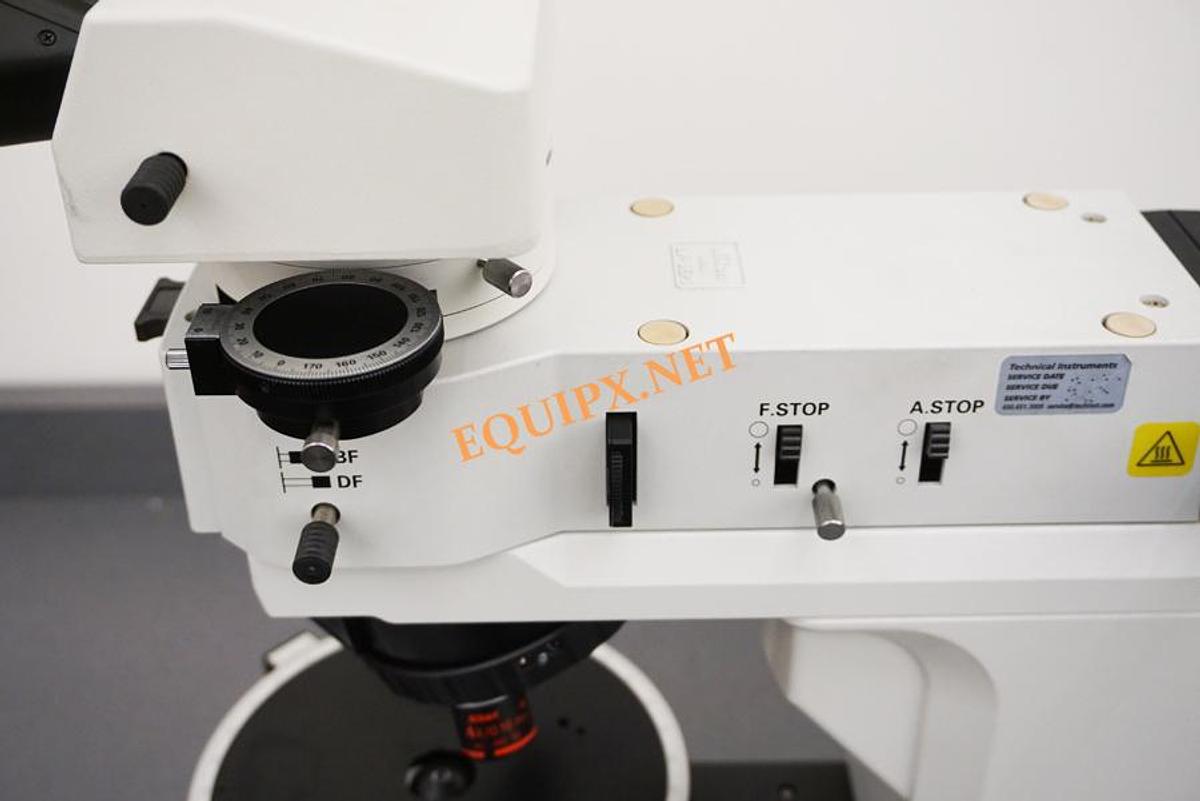

LV-UEPI Universal Epi-illuminator
P-TT3 Trinocular tube with TV tube and C-mount camera adaptor
10X/22 Eyepieces
Swing out condenser for diascopic light
Rotating stage with 45 degree click stops
CFI-P Achromat Objectives:
4x/0.10 P
10x/0.25 P
20x/0.40 P
SPECIFICATIONS
| Main Body - Optical System | CFI60 infinity |
| Main Body - Illumination | 12V-50W halogen lamp; 12V-50W DC transformer built-in; Diascopic/Episcopic illumination changeover switch; Fly-eye lens; NCB11, ND8 filters built-in; 12V-100W type optional (requires external power supply) |
| Main Body - Focusing | Coaxial coarse/fine focus knob; Focus stroke: 30mm; Coarse: 14mm per rotation; Fine: 0.1mm; Minimum reading: in 1µm increments |
| Eyepiece | 10x (F.O.V. 22mm), CM type with crosshair and micrometer scale |
| Eyepiece Tube | P-TT Trinocular Tube for polarizing microscopy; P-TB Binocular Tube for polarizing microscopy |
| Intermediate Tube | Built-in focusable Bertrand lens removable from optical path; Switchable Conoscopic/Orthoscopic observations; Analyzer built-in; Plate/compensator slot |
| Analyzer | 360° rotary dial; Minimum reading angle 0.1° |
| Nosepiece | Reversed centering quintuple nosepiece (detachable); DIN slot |
| Stage | Top-grade dedicated circular graduated stage. Rotatable 360° horizontally; can be fixed at a specific position. Graduated 360° (in 1° increments); Click stops each 45°. Attachable mechanical stage: 35 x 25mm travel; vernier 0.1mm |
| Condenser | Dedicated strain-free swing-out type; P Achromat N.A. 0.9 |
| Polarizer | Fixed to the bottom of the condenser holder; Scale |
| Objectives | CFI P Achromat 4x, 10x, 20x, 40x, 100x, CFI LU Plan Fluor Epi P 5x, 10x, 20x, 50x,100x |
| Episcopic Illuminator | LV-UEPI Universal Epi-illuminator accommodates a 12V-50W illumination transformer. 12V-100W type optional.(requires external power supply) |
| Compensators | Standard 1/4 λ & tint plate, quartz wedge or Senarmont compensator can be inserted into intermediate tube slot |
| Power Consumption | 1.2A/75W |
| Weight | Approx. 17kg (37.4 lbs) (standard trinocular set) |
